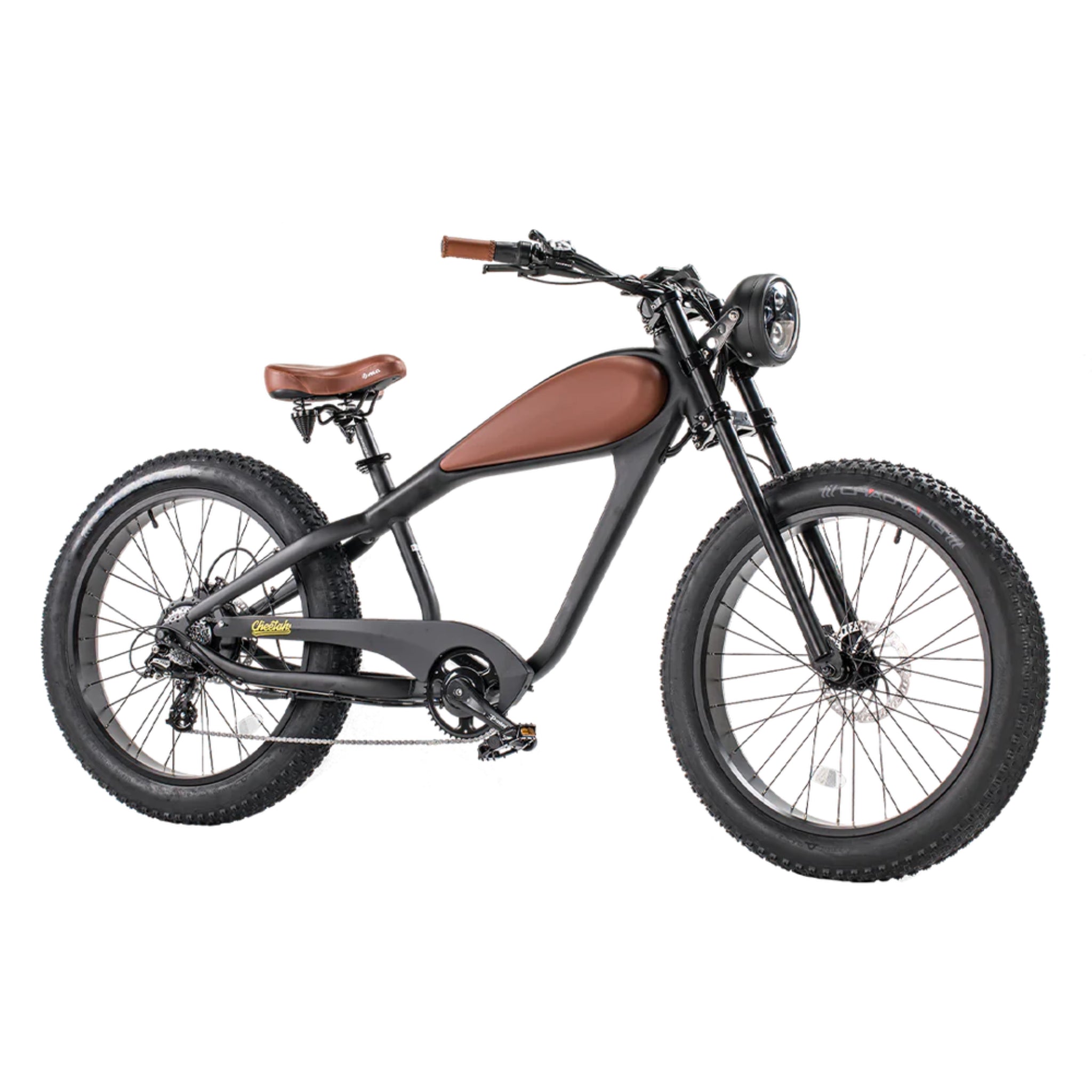

REVI BIKES - Cheetah, Vintage Electric Bike 48V 750W 28mph

by REVI BIKES
In Stock & Ready to Ship
Regular price $1,899.00 USD
Sale price $1,899.00 USD Regular price $2,999.00
Save $1,100.00
Includes free Shipping
No taxes (EXCEPT FOR FLORIDA SALES)
Only 1 left in stock

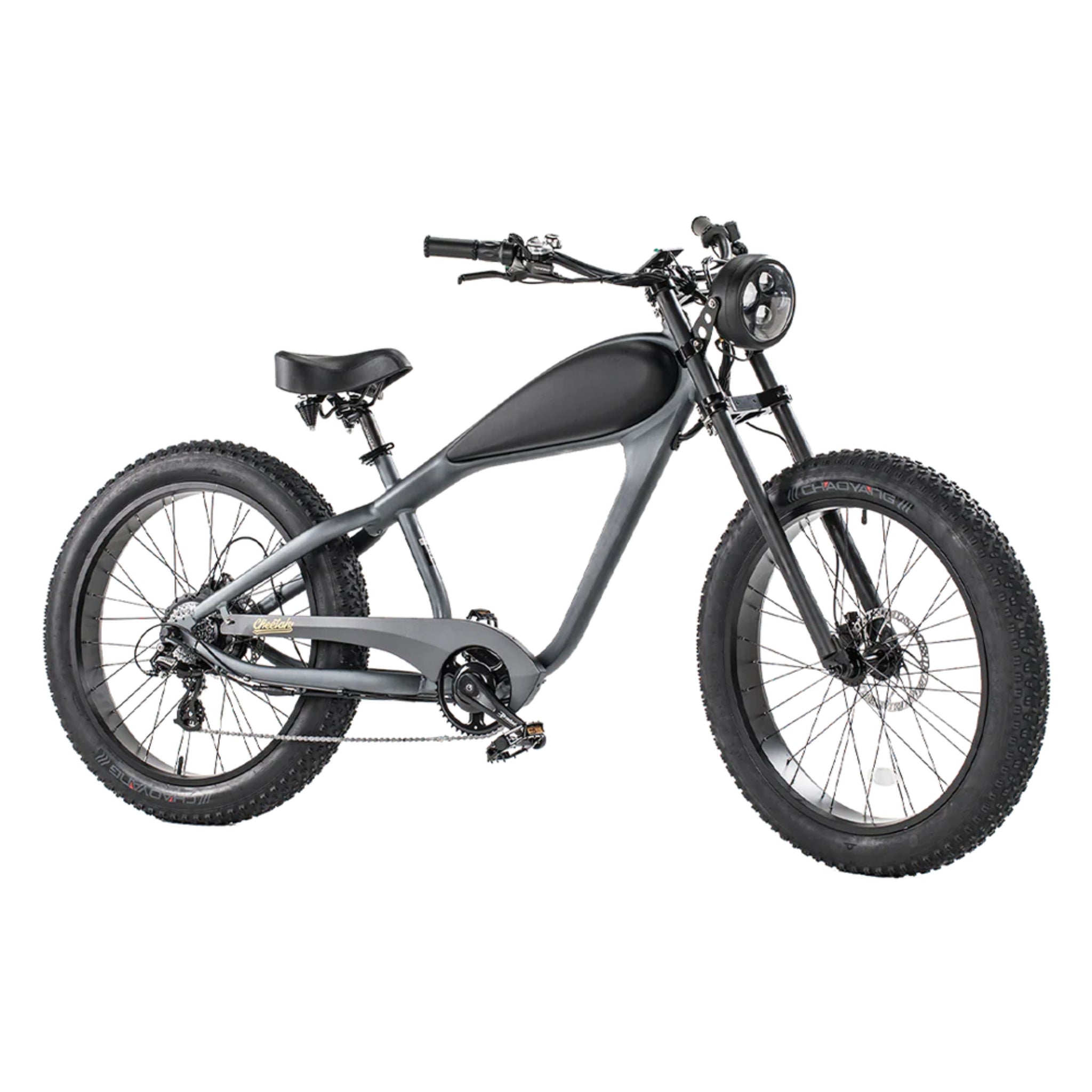

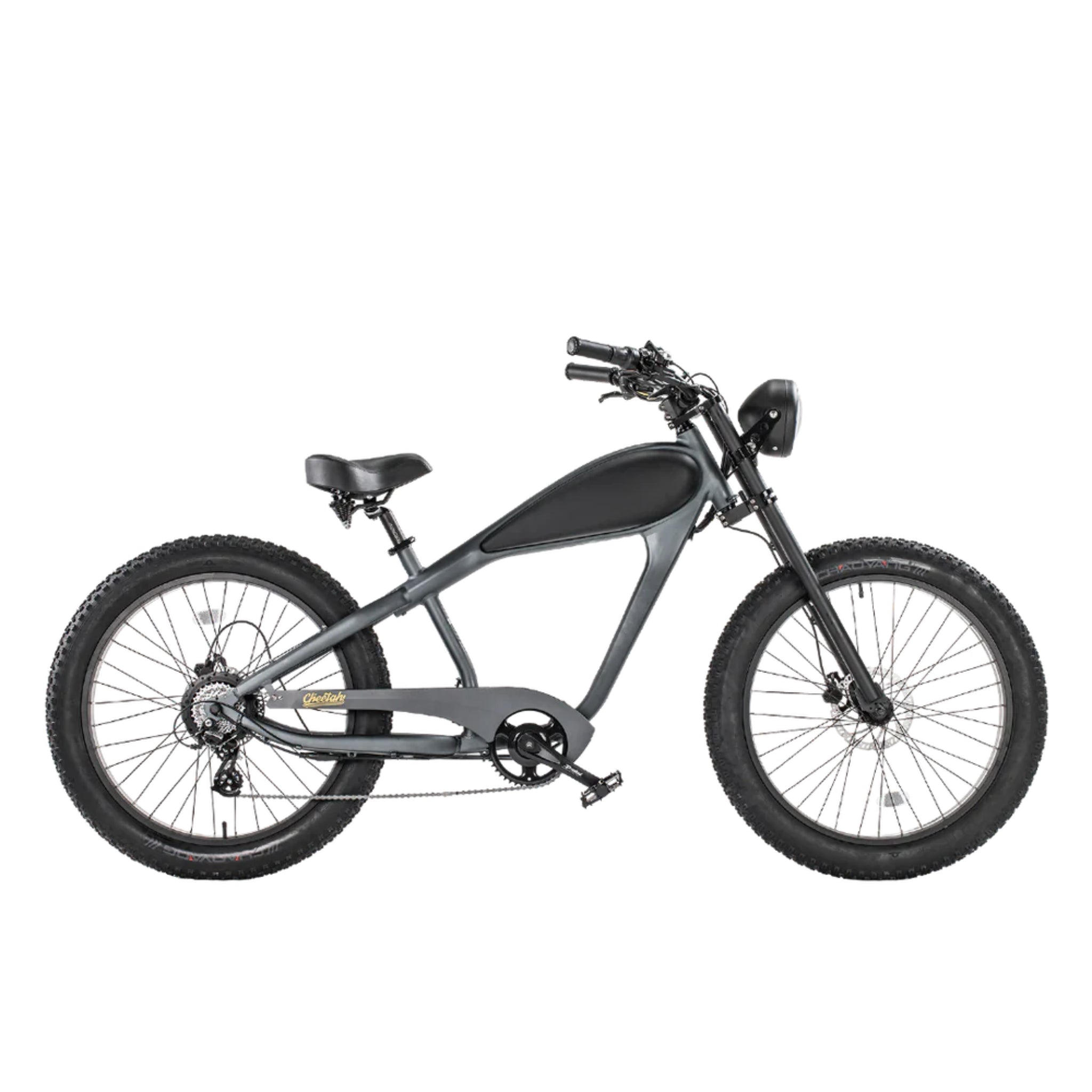

Color: Gray
Battery Capacity
Shipping calculated at checkout.

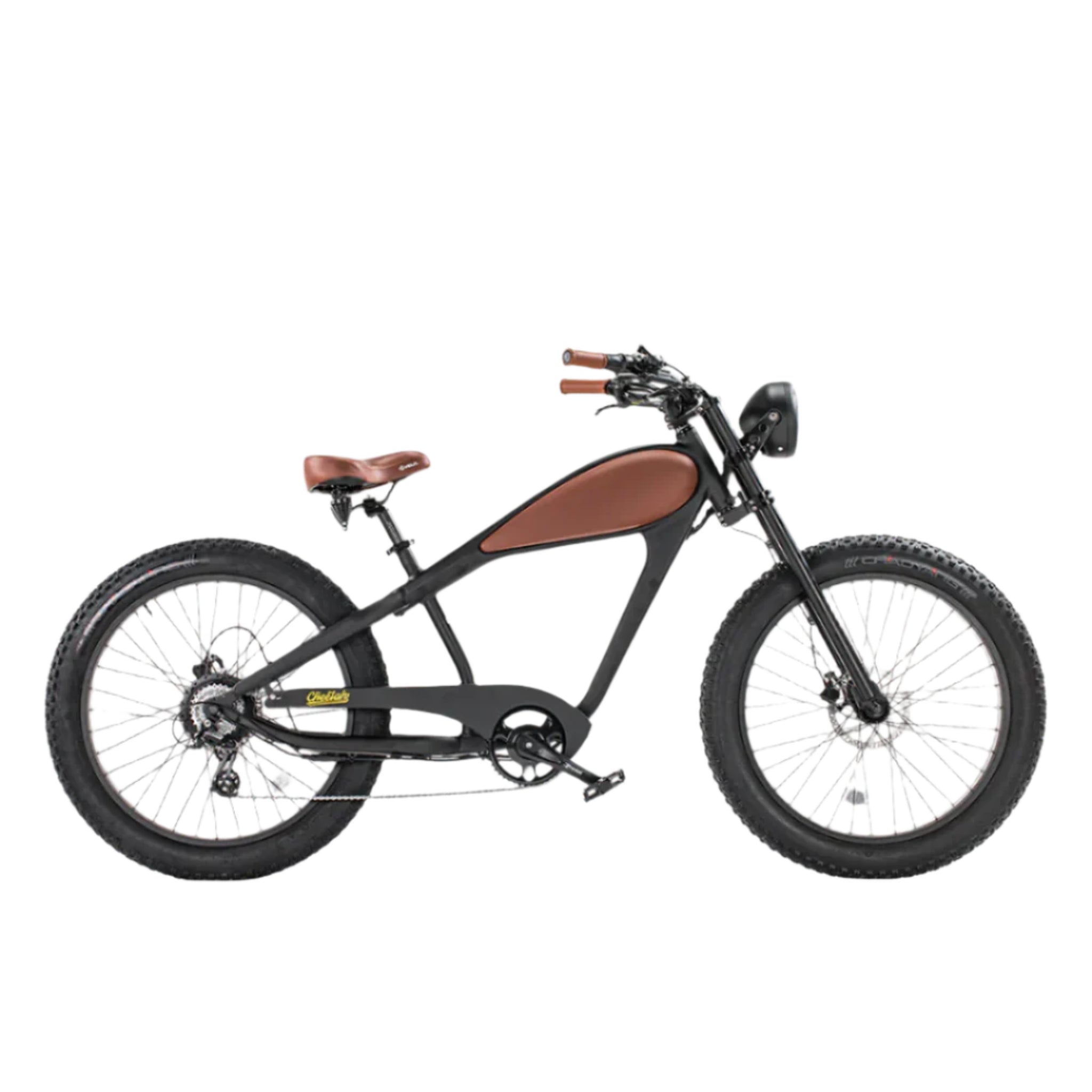

Experience the perfect blend of vintage style and modern versatility with the UL-certified Cheetah Café Racer. Powered by a 750W Bafang motor (peaking at 1200W) and a Samsung lithium-ion battery, this e-bike delivers reliable performance with enhanced safety standards. Its robust frame and high payload capacity make it ideal for cargo and utility trips, whether you're commuting, running errands, or exploring new terrain. With hydraulic disc brakes for precise control and a full-color LCD display, the Cheetah Café Racer is built for adventure and practicality.



Highlights

  • MOTOR POWER: 750W (1200W PEAK)
  • TOP SPEED: 28 mph
  • RANGE: 45 miles (Throttle) - 65 miles (PAS1)
  • WEIGHT CAPACITY: 400lbs



BATTERY FEATURES

  • Single Battery 48V 13Ah or 17.5 Ah Integrated Lithium Ion, UL Certified Samsung Battery
  • 48v 3Ah Charger
  • Charging Time: 4-6 Hours



Dual Battery Kit (sold Separately)

The upgraded second battery kit includes:

  • Wiring harness

  • Battery

  • Balancer

NOT INCLUDE THE CHARGER. The charger is the same as the charger for the first battery.

To ensure a seamless installation experience, we will provide a detailed video tutorial to guide you through the setup process.



CARGO FEATURES

Built to handle an impressive payload of 400 lbs, the Cheetah is here to help carry any gear to your next adventure.



This bike can adapt a sturdy rear rack that can withstand up to 50lbs. Rack comes with straps for added cargo carrying stableness. This accessory is sold separately.

Rack and Fender Bundle for Cheetah



Specs

  • Motor: 48V 750W Bafang™
  • Motor Peak Output: 1200W
  • Battery Cell: Samsung
  • Battery Type: Lithium-ion
  • Battery Capacity: 48V 13AH/ 17.5AH
  • Max Range: 45- 60 Miles
  • Charging Time: 4 - 6 Hrs
  • Front Light: Included
  • Pedal Assist: 5-9 levels
  • Throttle: Yes
  • Brake: F/R Hydraulic Brake
  • Brake Brand: Tektro
  • Rotors: 180mm Front and Rear
  • Tire: Kenda Tire
  • Wheel Size: 26" X 4.0"
  • Display: Full Color with USB Port
  • Display Function: PAS Level, Current Speed, Max Speed, Odometer, Trip, Daylight and Night Model Selection, Class 1,2,3 model selection
  • Frame Material: 6061 Aluminum Alloy

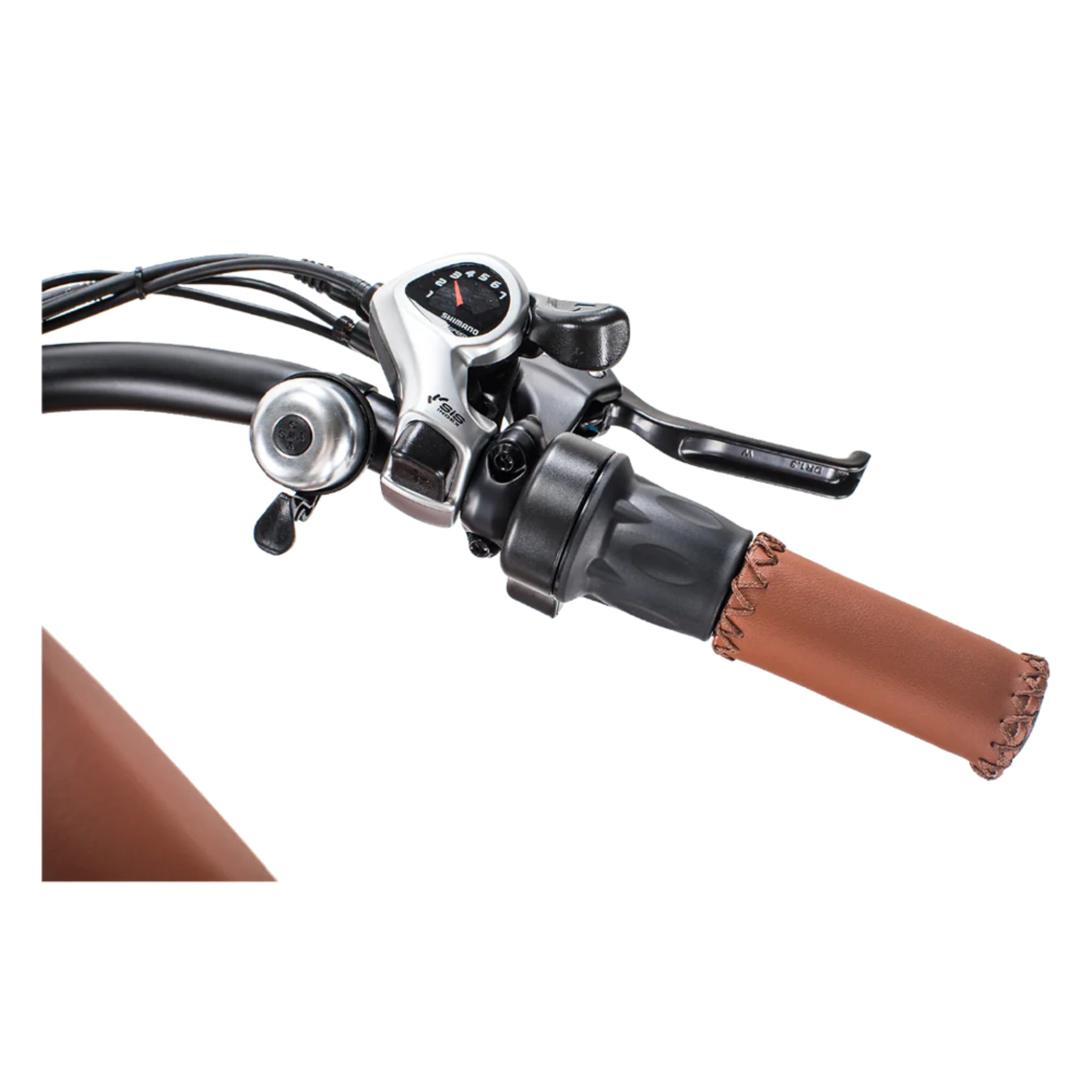

  • Shift: SHIMANO™ 7 Speed
  • Crank Wheel: 42T 180mm
  • Saddle: Leather
  • Chain: KMC™ Anti-Rust
  • Sensor: Cadence
  • Weight: 74 lbs with battery
  • UL Certified 2849



Geometry



Owner's Manual

Please refer to the Owner's Manual here.

Please refer to the Display Manual here.



Assembly Guide

What's in the Box?

  • Electric Bike * 1
  • Battery  (2 keys)
  • Battery Charger
  • Tires * 2
  • Headlight * 1
  • Toolkit * 1
  • Owner's Manual * 1

Warranty

To learn more details about this product's warranty, please refer to our Warranty Page.

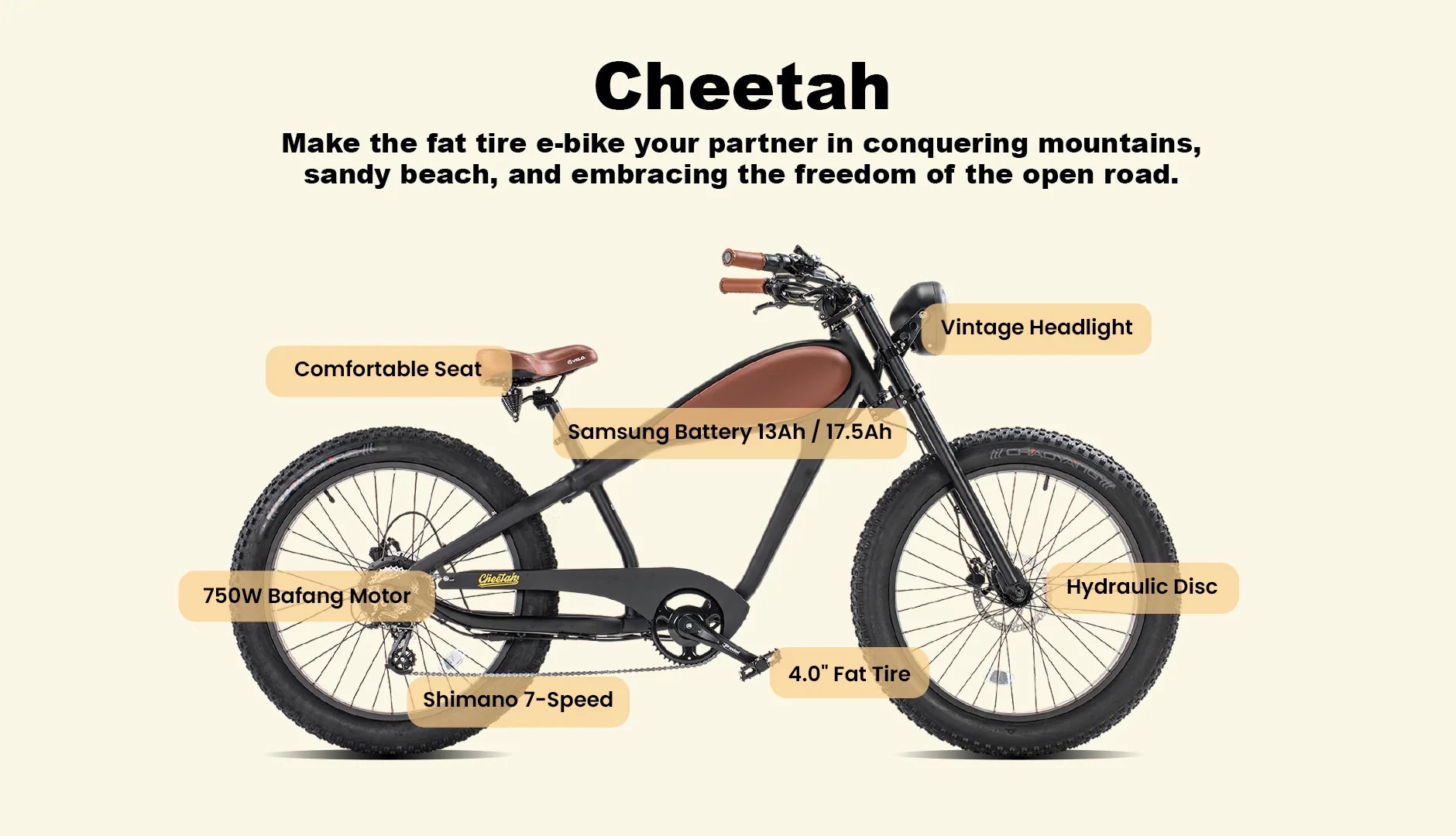

750W MOTOR
48V 13-17.5Ah SAMSUNG BATTERY
45-65 Miles RANGE
28 MPH TOP SPEED
400 lbs MAX PAYLOAD

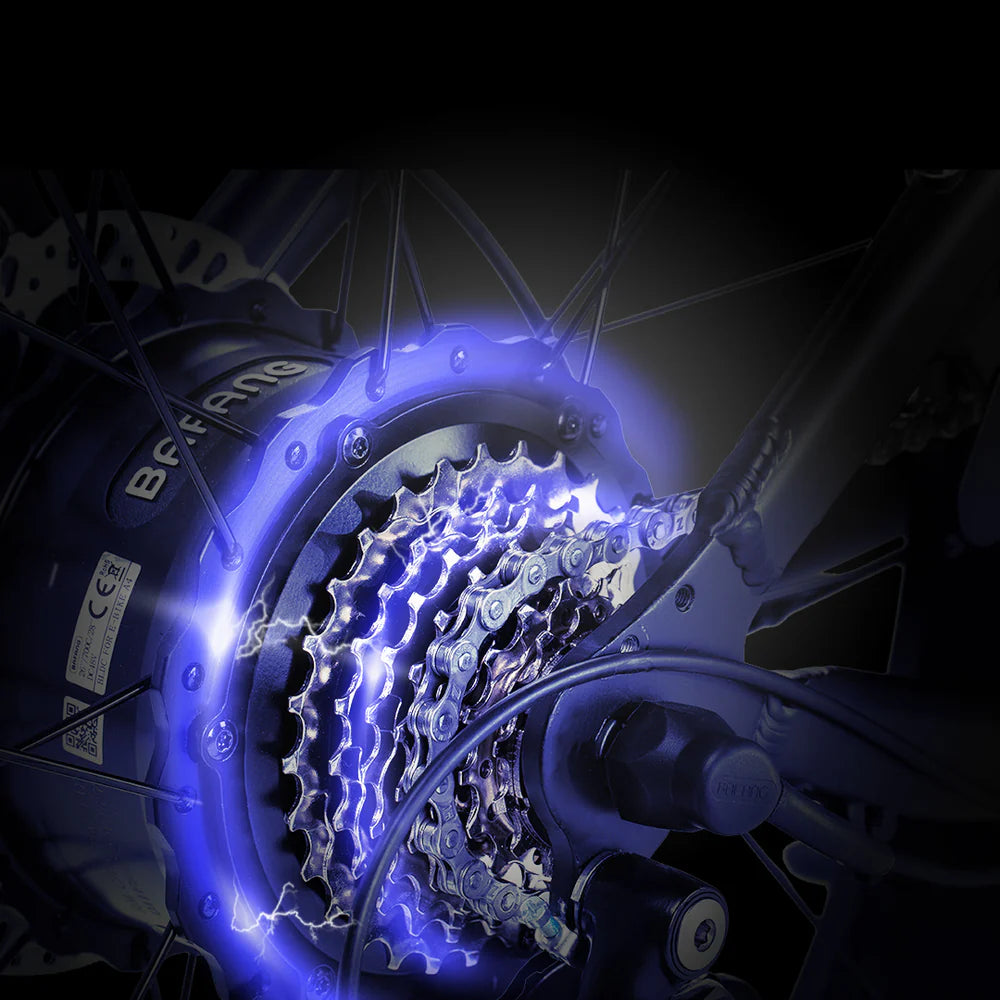

Motor

750W BAFANG Motor

The 750W powerful motor can reach a peak power of 1200W and torque of 95 Nm. Whether you're conquering steep hills or navigating through urban traffic, the motor's torque guarantees a smooth and effortless ride.

battery

samsung 17.5Ah reliability with dual battery option

Available in 13ah/17.5ah capacity options. The 13Ah battery caters to the practical demands of everyday life. The 17.5Ah battery invites riders to explore uncharted territories. No matter the distance, SAMSUNG batteries guarantee your safety.

Dual Battery Option (48V 15Ah) is also Available almost doubling the gas tank of your ride! Kit is installed separately.

Brakes

180mm Hydraulic Disc Brake

The 180mm hydraulic disc brakes provide reliable and sensitive braking performance. Whether it's a sudden obstacle or a steep descent, hydraulic brakes empower riders to exercise precise control over the speed. Whether it's a sunny day or a rainy afternoon, hydraulic brakes maintain the sensitivity and reliability.

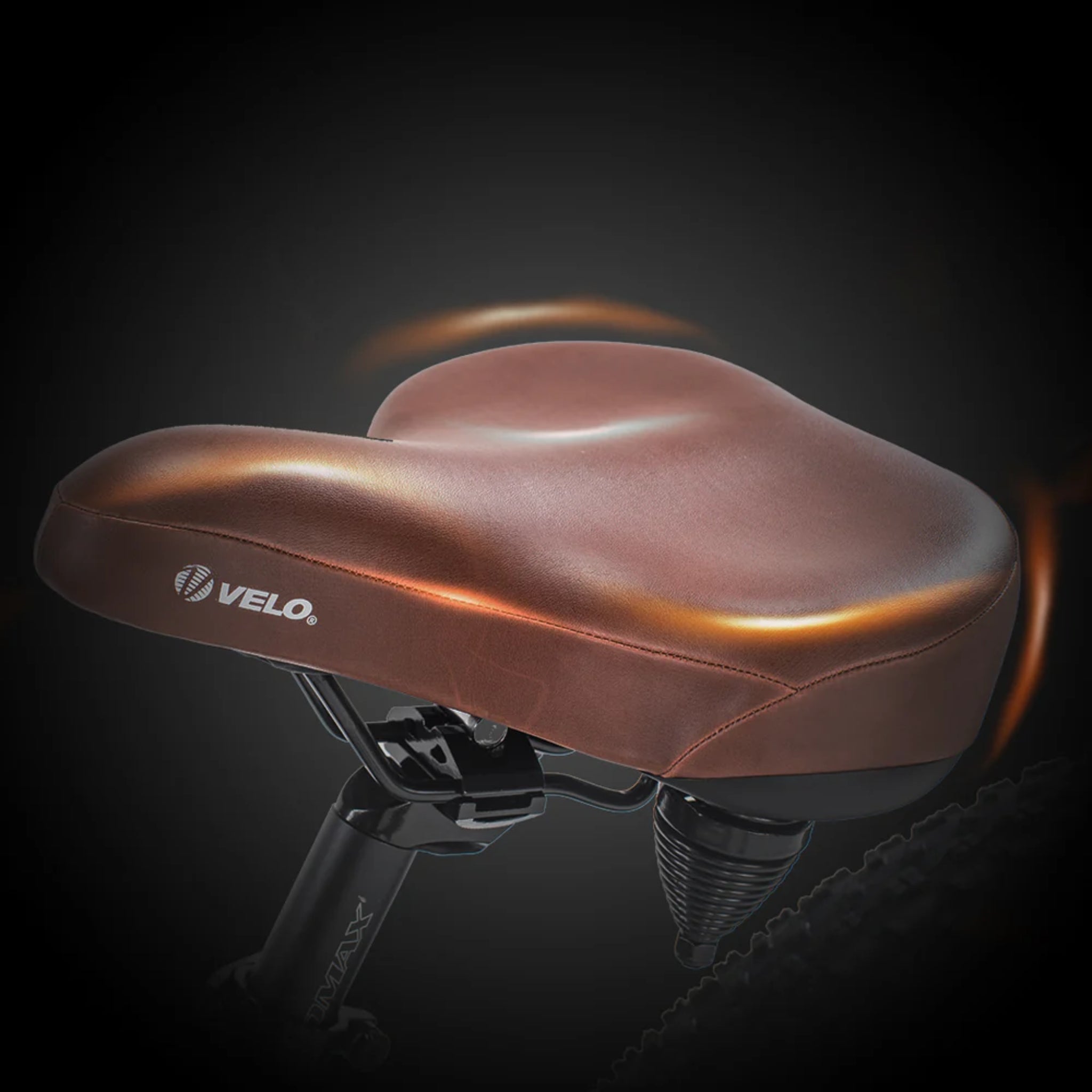

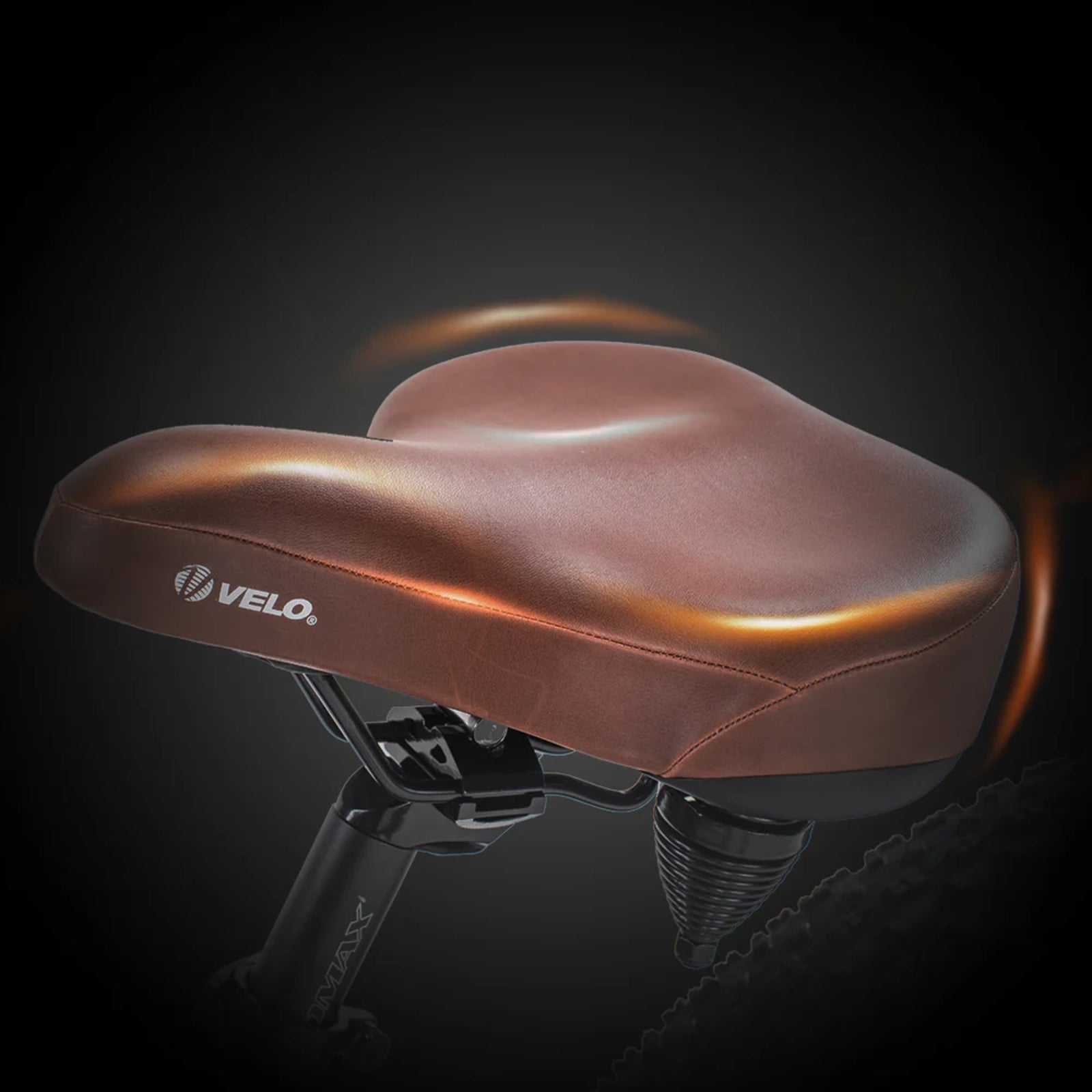

Saddle

Oversized Cruiser Saddle

The generous surface area of the bike seat allows most of your buttocks to be wrapped in a gel-like memory foam material, effectively reducing pressure on your buttocks and tailbone. Two sturdy spring balls underneath effectively soak up any jolts from potholes or uneven surfaces.

Lights

Integrated Front and rear lights

The circular 6.5-inch retro LED headlight features four high-intensity LED chips, designed for both high beam and low beam modes. The high beam projecting light that reaches a considerable distance and offers an exceptionally clear field of vision, enhancing safety. The low beam provides a broader, brighter, and wider illuminated area, further enhancing visibility.

Suspension

Air Ride Suspension

The Suspension Front Fork adds another level of comfort to your ride. The front air suspension helps smooth bumps and improves off-road performance, makes the ride more stable, comfortable, and controllable.

Accessory sold separately.

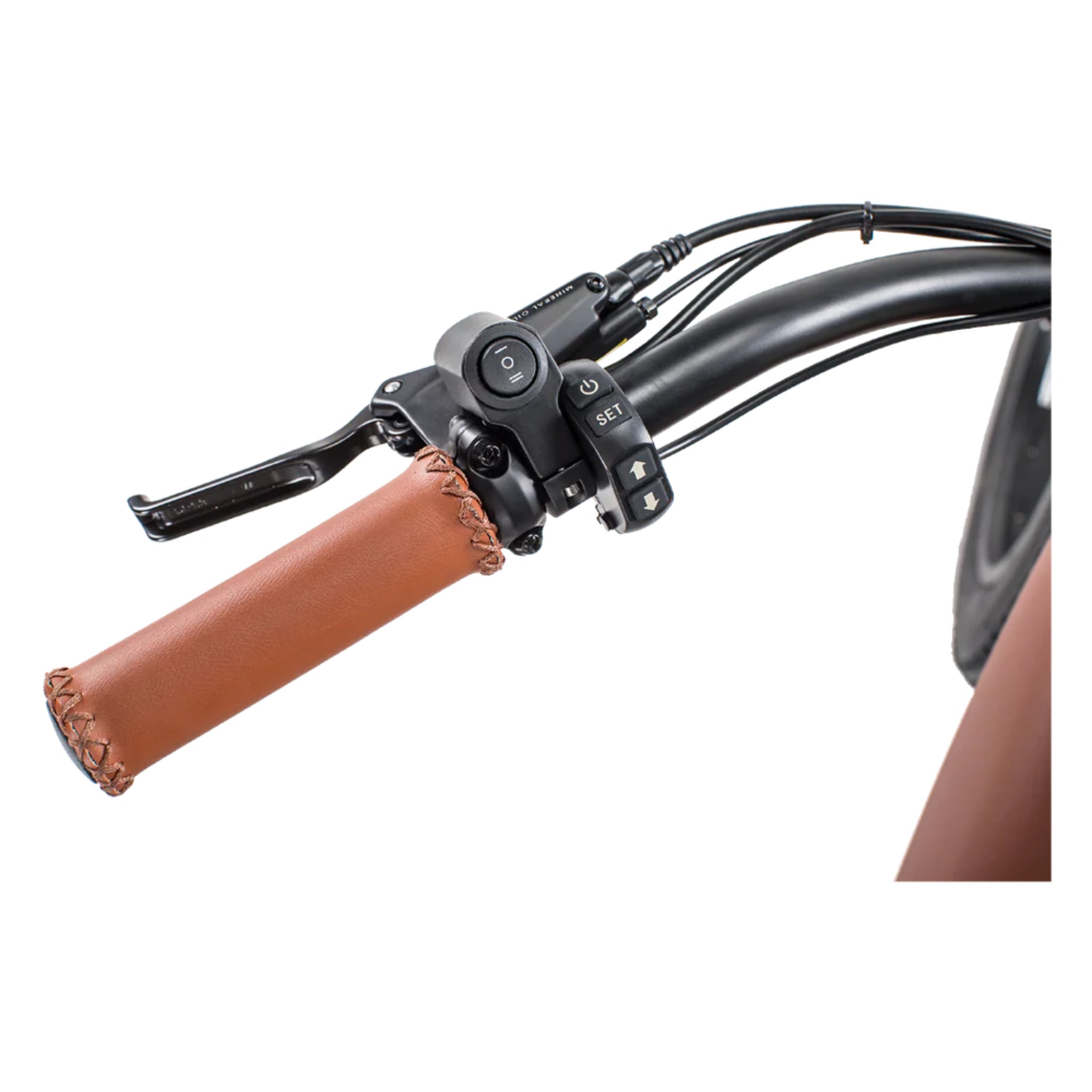

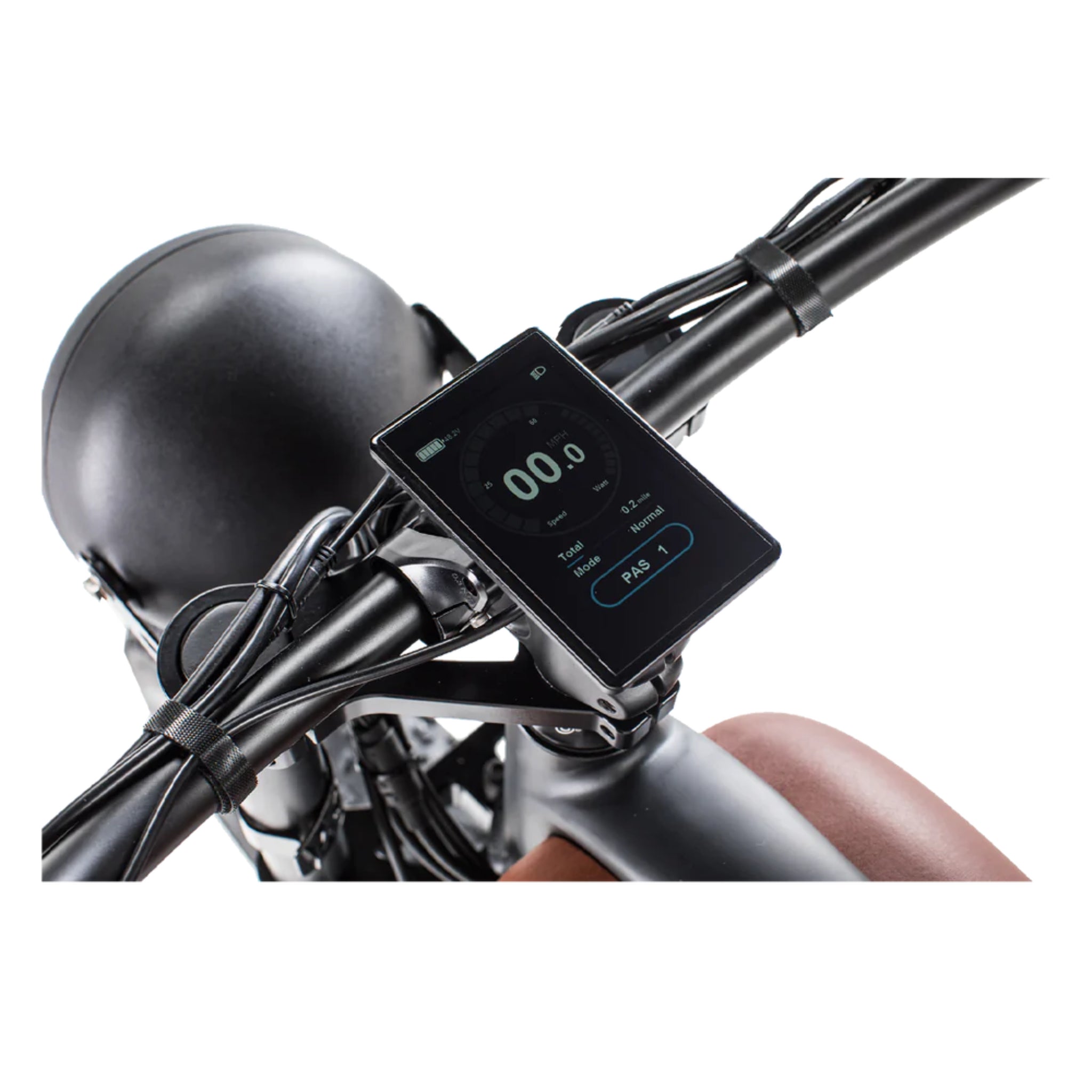

Display

LCD Color Display

Switch between Eco, Normal and Power, control your entire ride with the display by choosing between 1-5 levels of pedal assist power, check your battery life, operation status, speed and trip distance.
