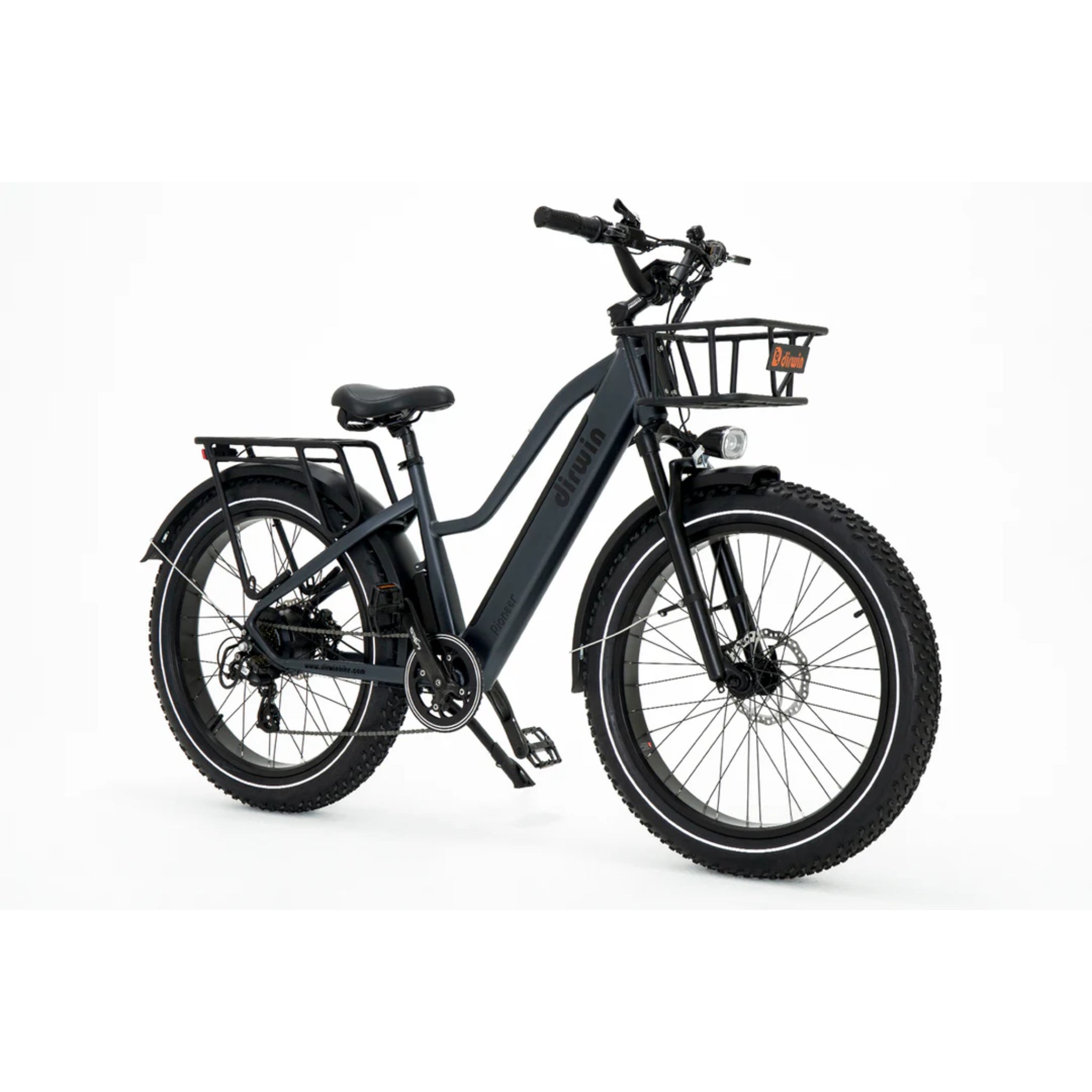

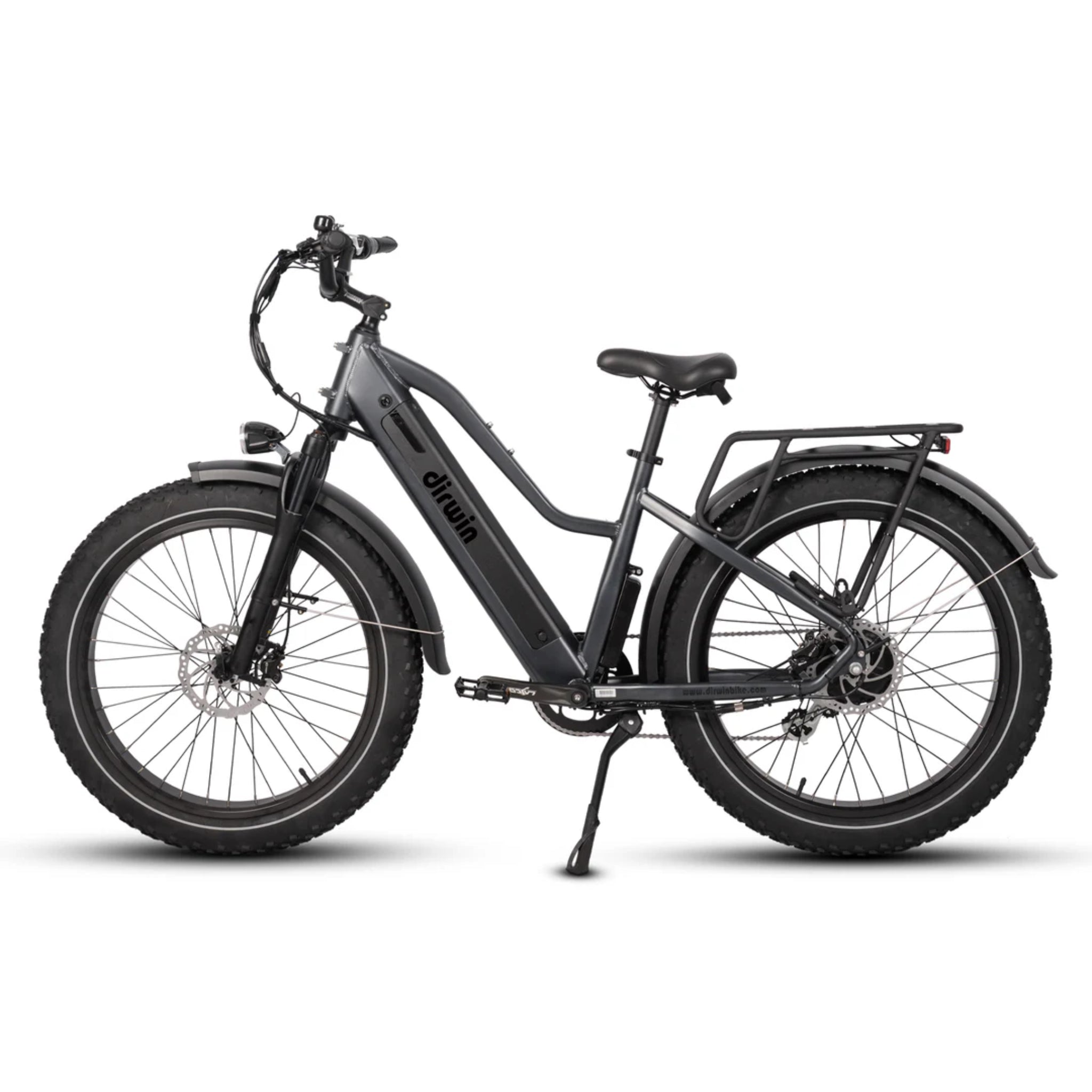

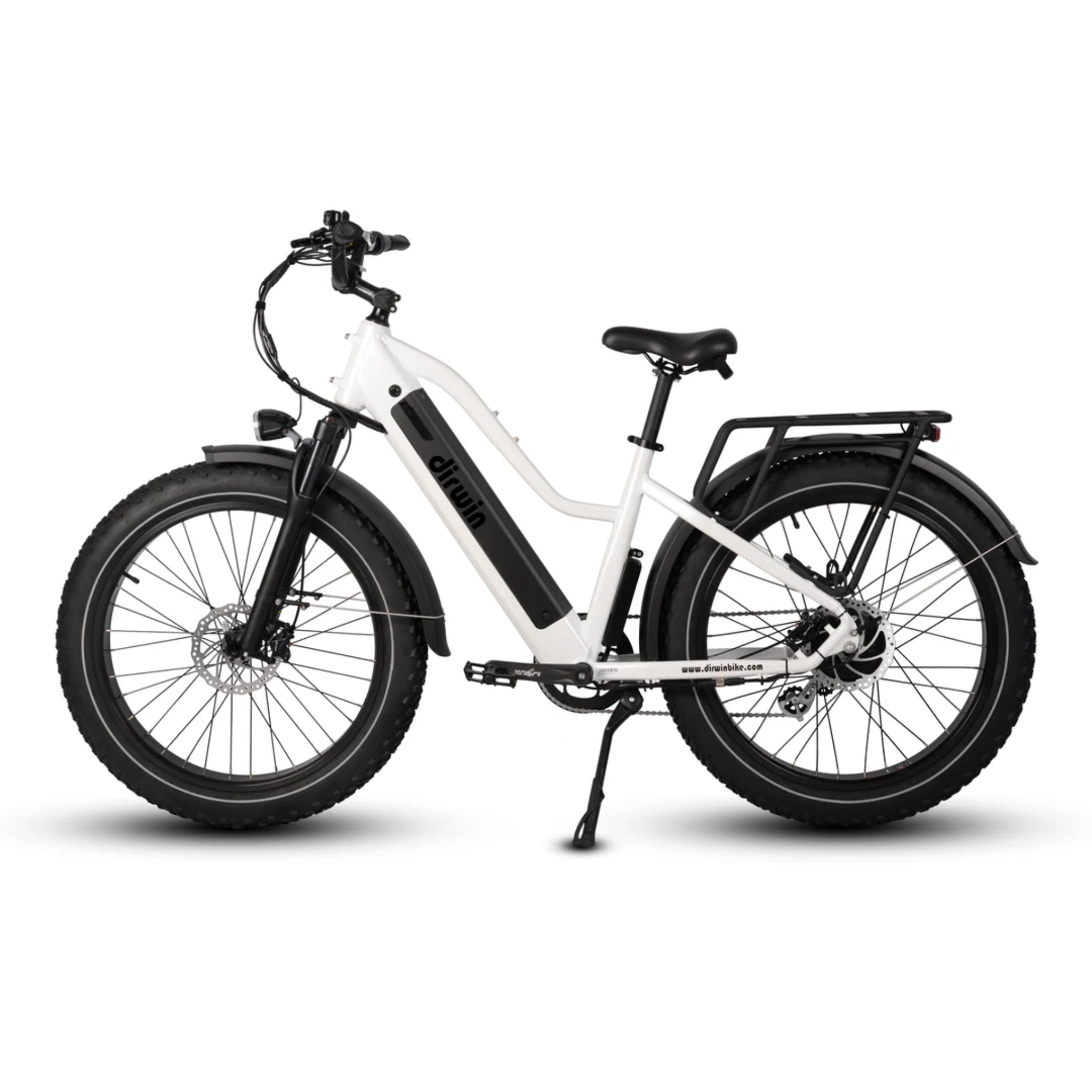

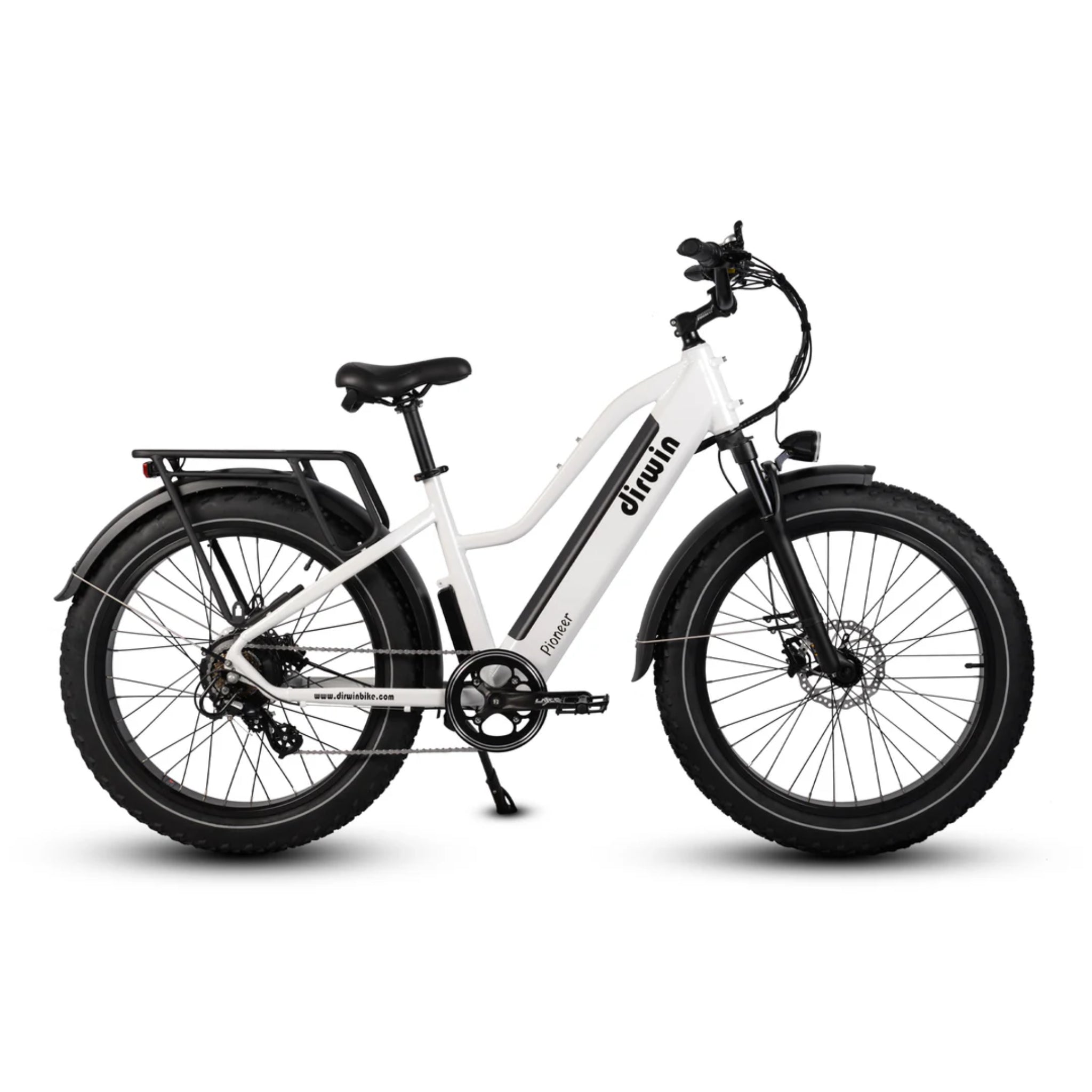

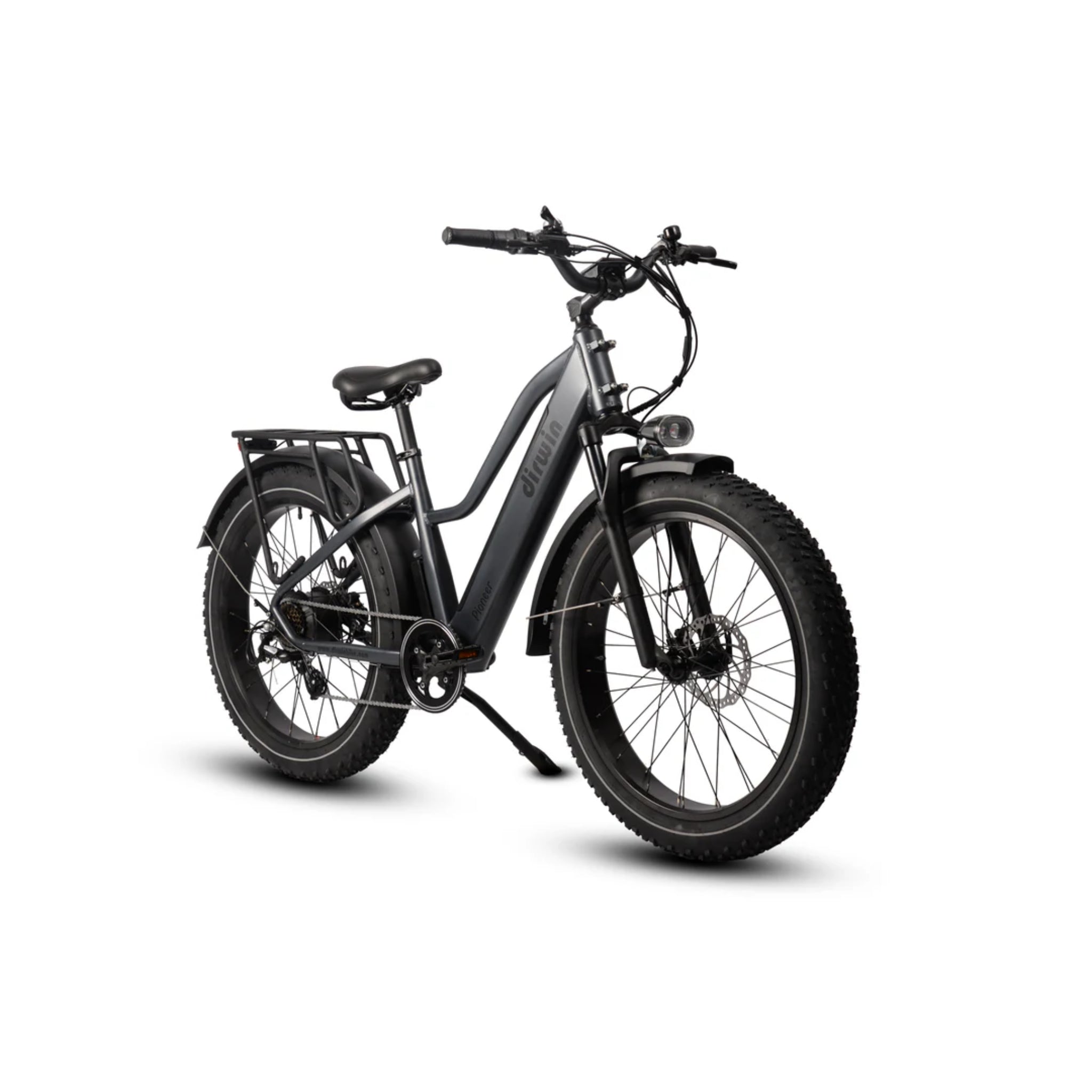

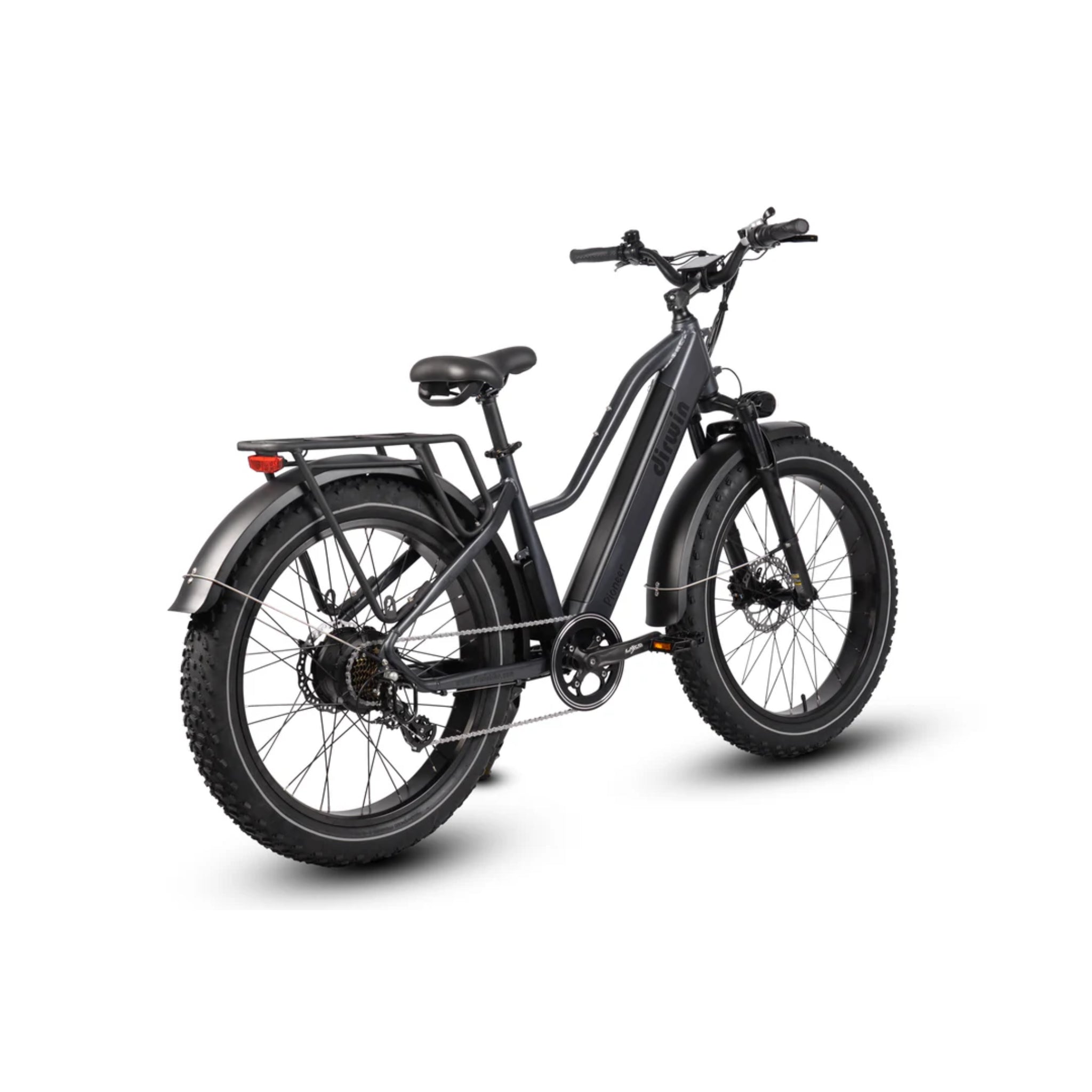

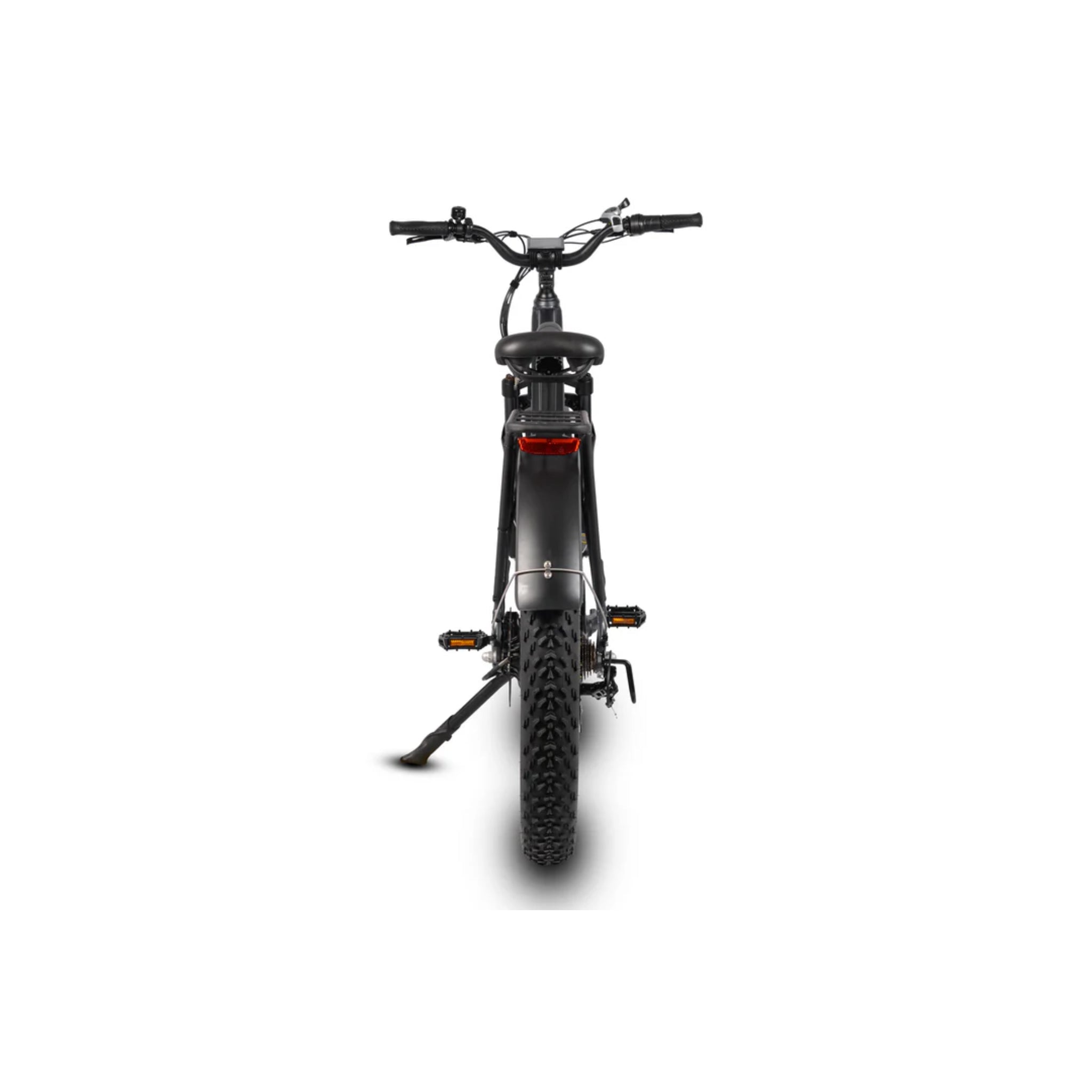

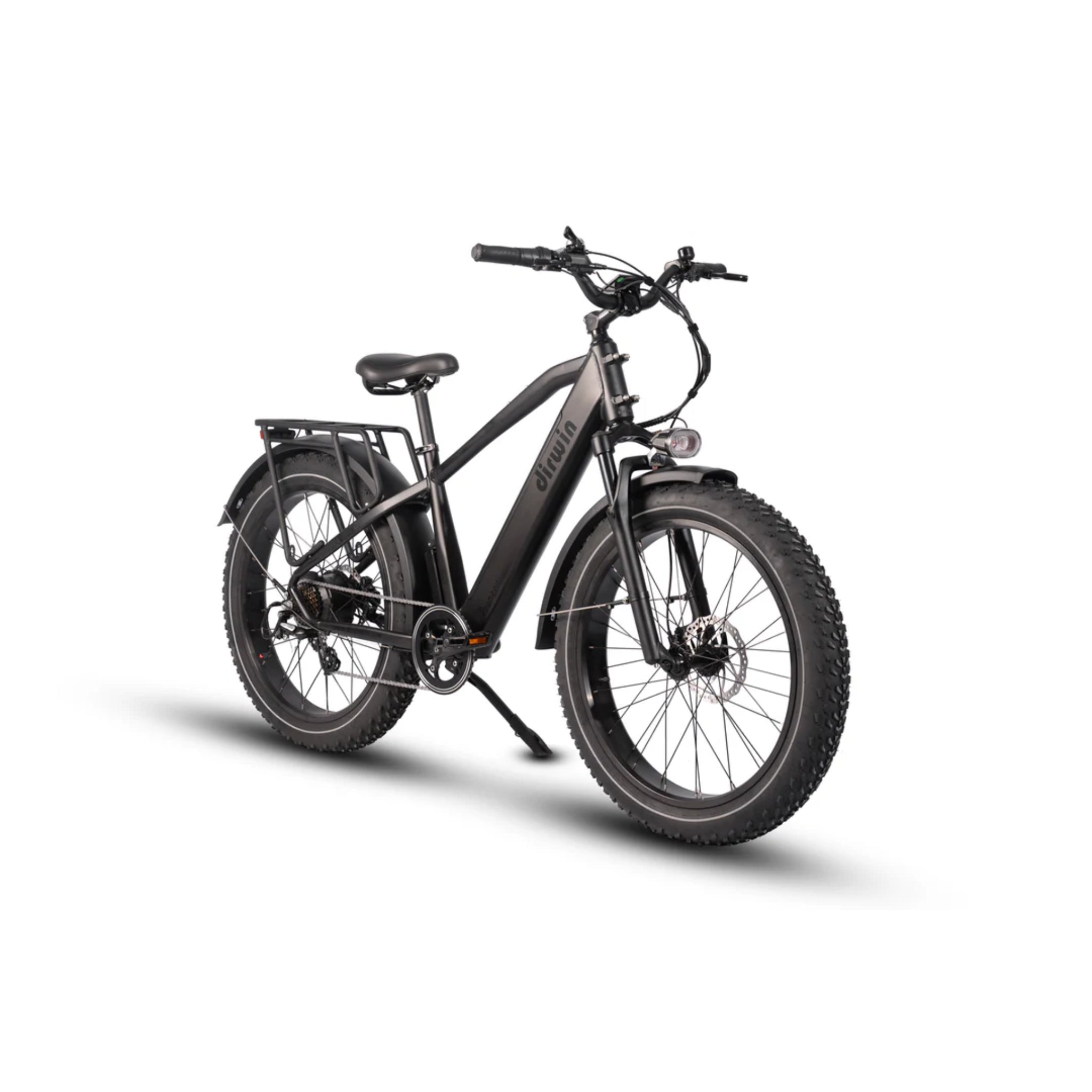

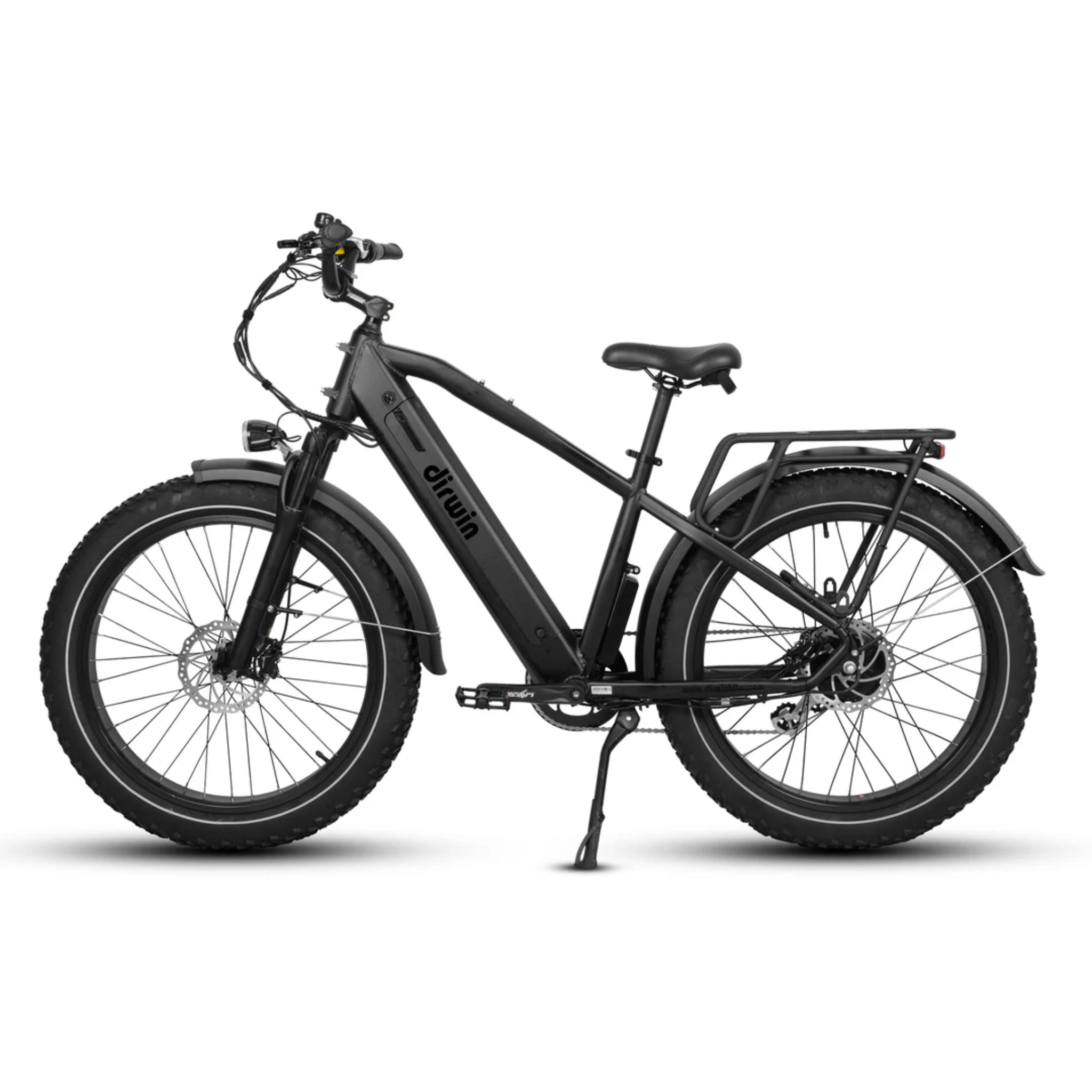

DIRWIN BIKE - Pioneer Fat Tire Electric Bike 48V 750W 23MPH

by DIRWIN BIKE
In Stock & Ready to Ship
Regular price $1,579.00 USD
Sale price $1,579.00 USD Regular price $2,299.00
Save $720.00
Includes free Shipping
No taxes (EXCEPT FOR FLORIDA SALES)
Only 2 left in stock
Color: Black
Frame
Shipping calculated at checkout.



The Dirwin Pioneer is ready for any rough conditions, from mountain paths to gravel roads. A powerful 750W motor, up to 60 miles range, and 26“ x 4.0” wearproof fat tires will take you anywhere with confidence. Your ride will be smooth thanks to the hydraulic suspension fork and when it’s time to stop the 180mm Hydraulic Brakes are always up to the task. The Pioneer is IPX5 water resistant and also includes front and rear lights along with an ultrabright color LCD display so your adventure doesn't have to stop when the sun sets.

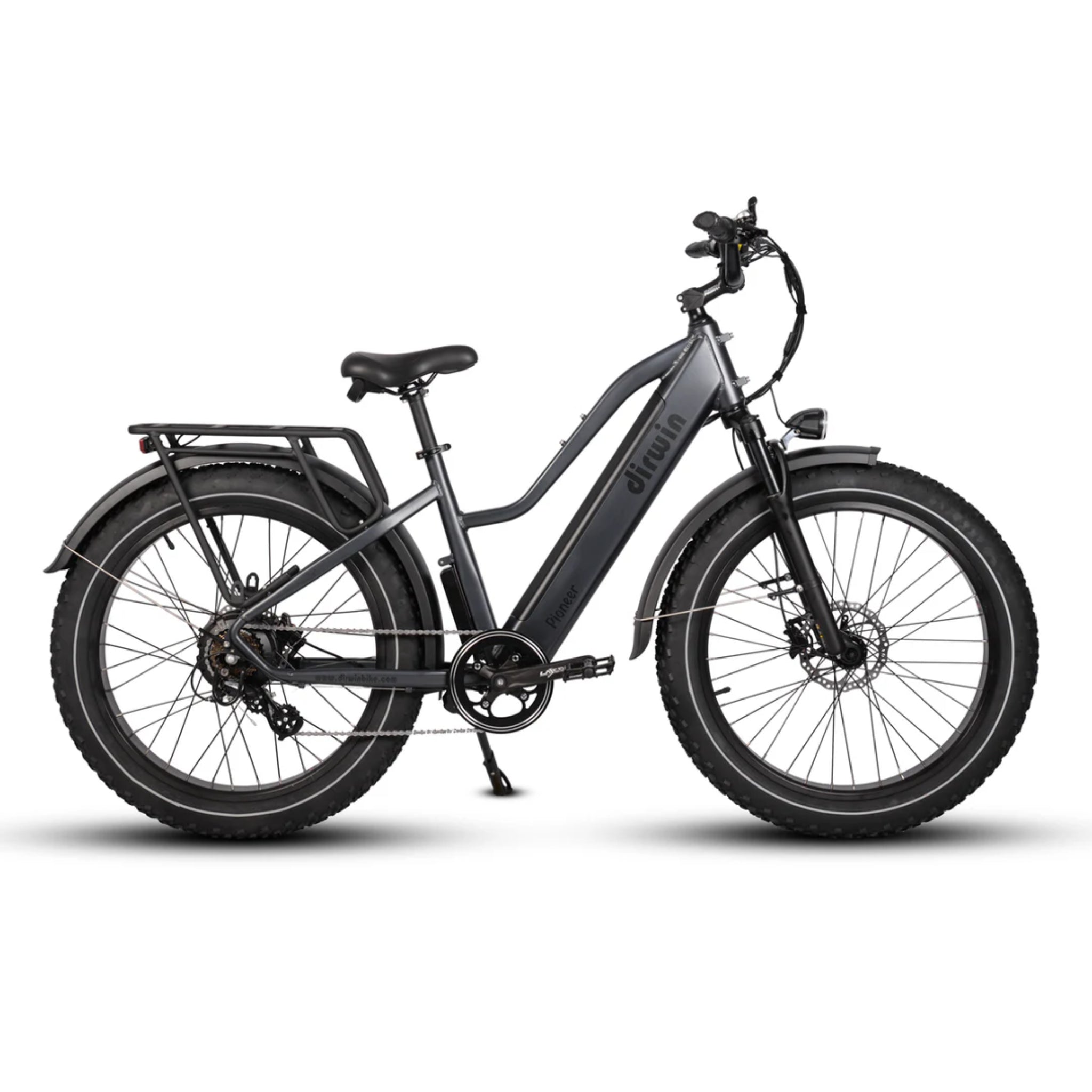

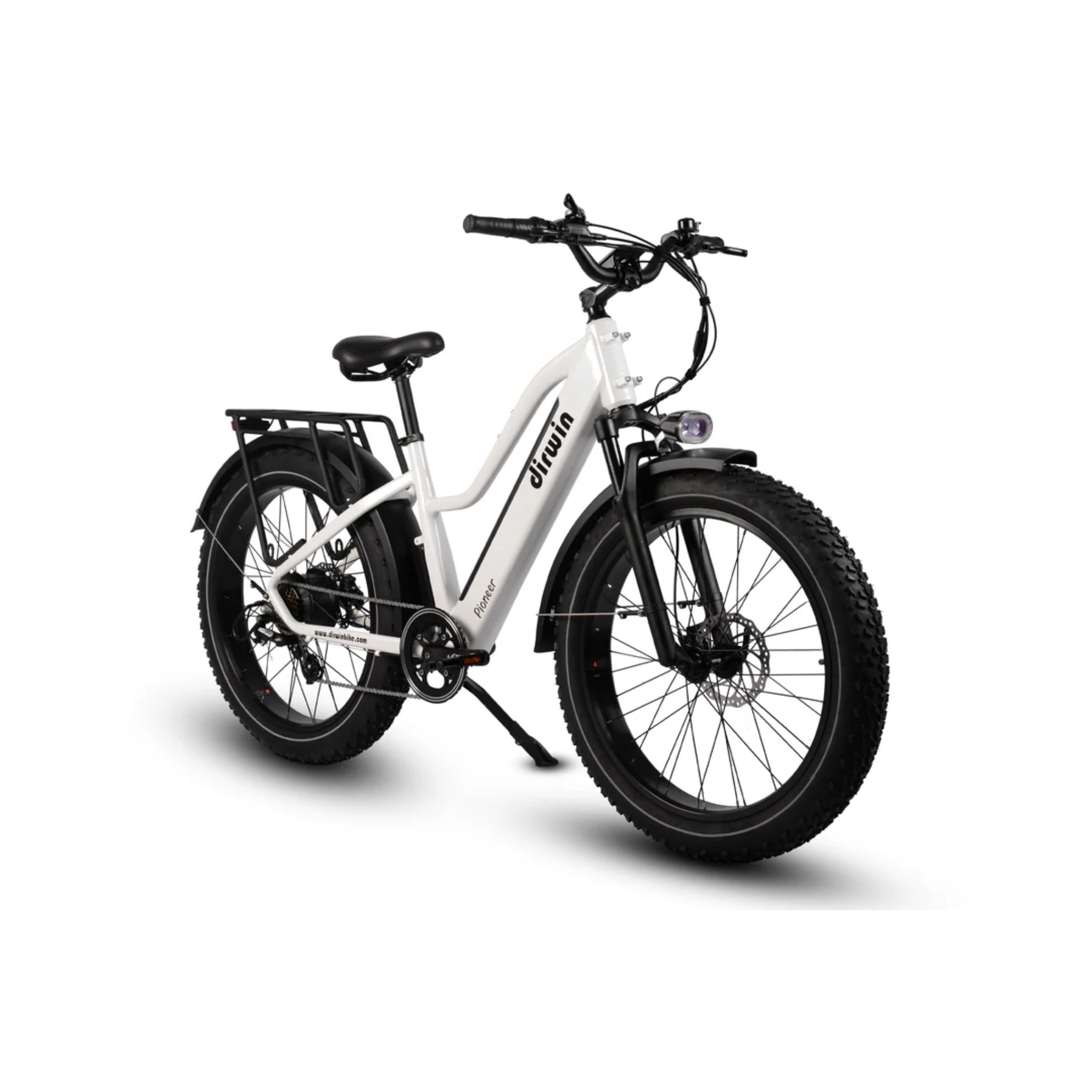

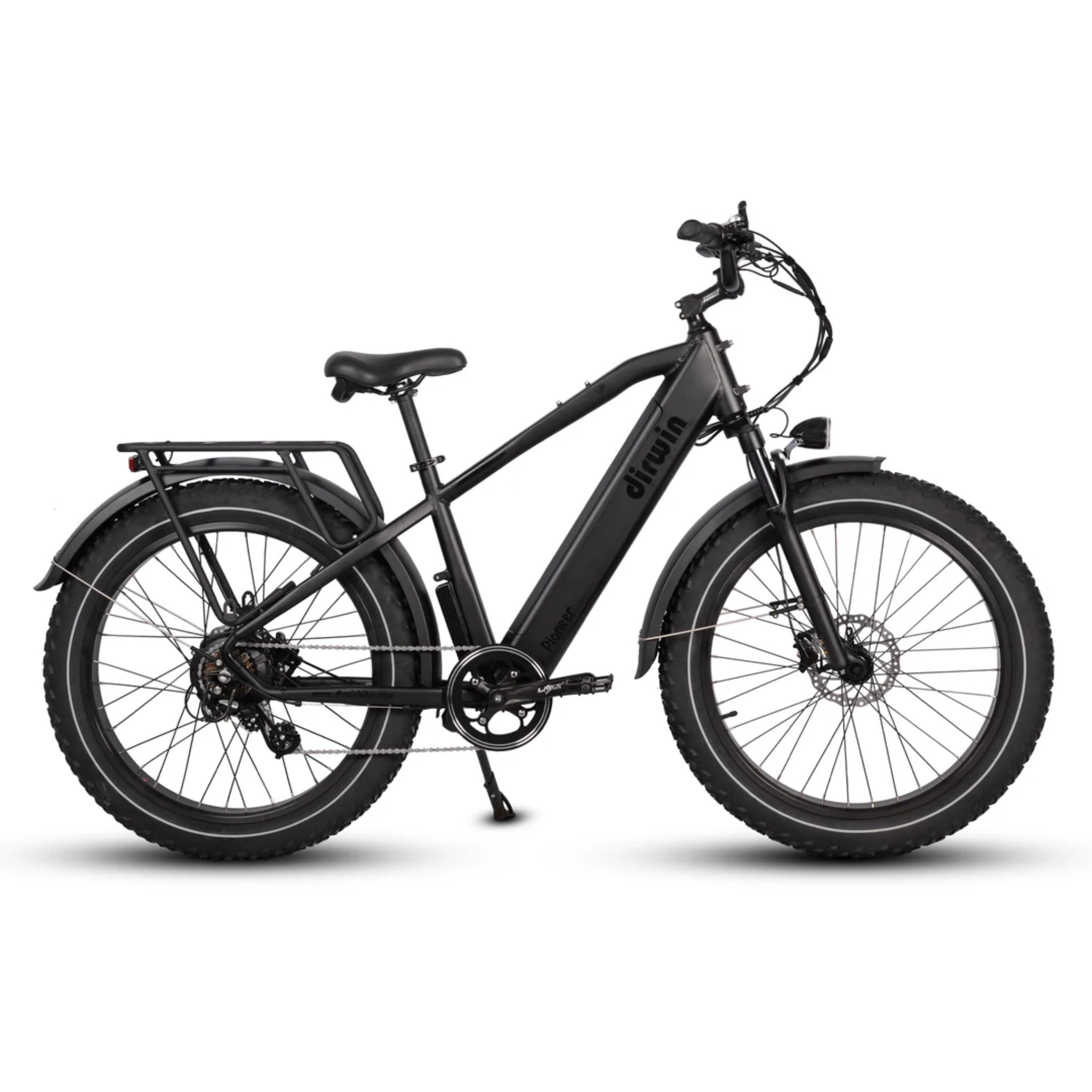

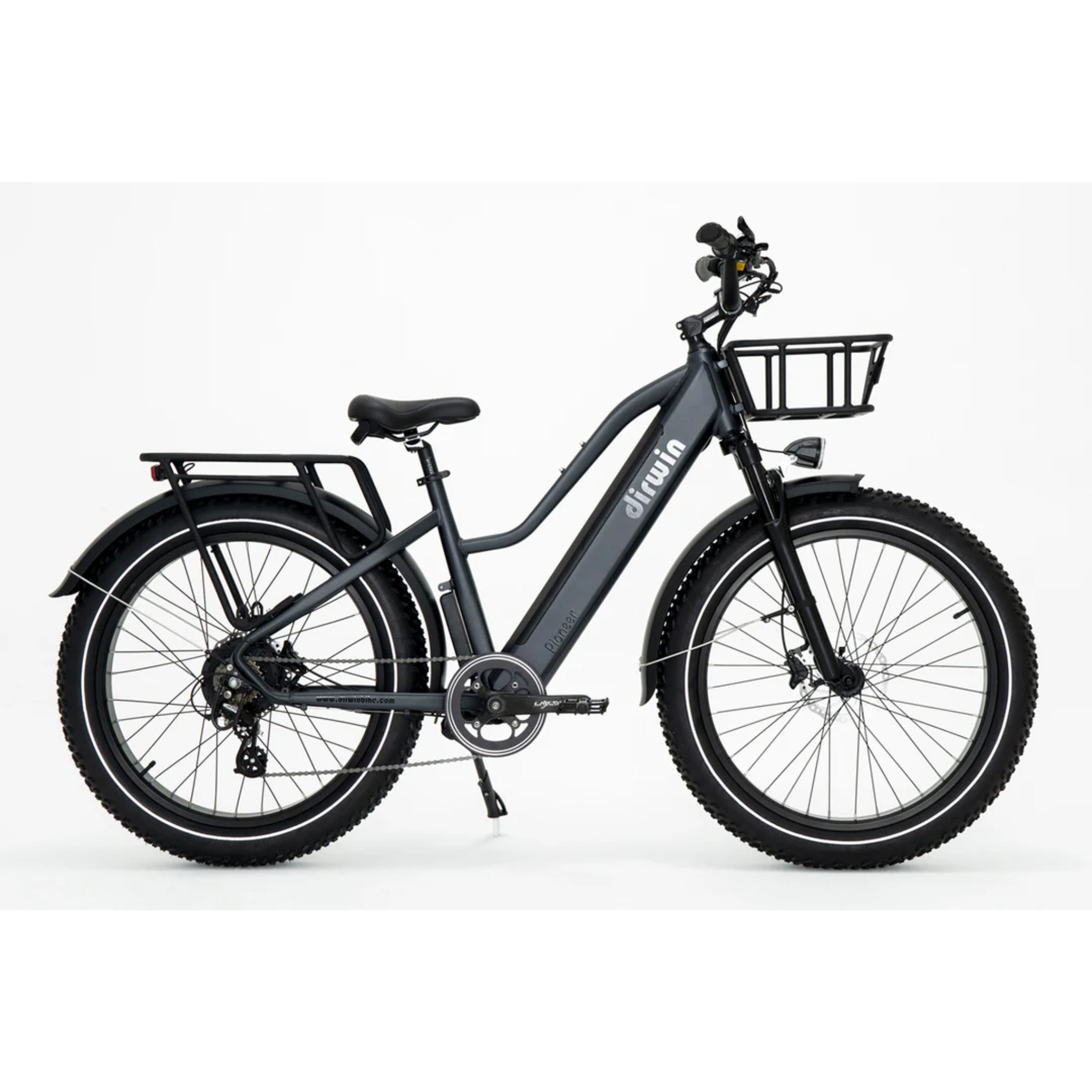

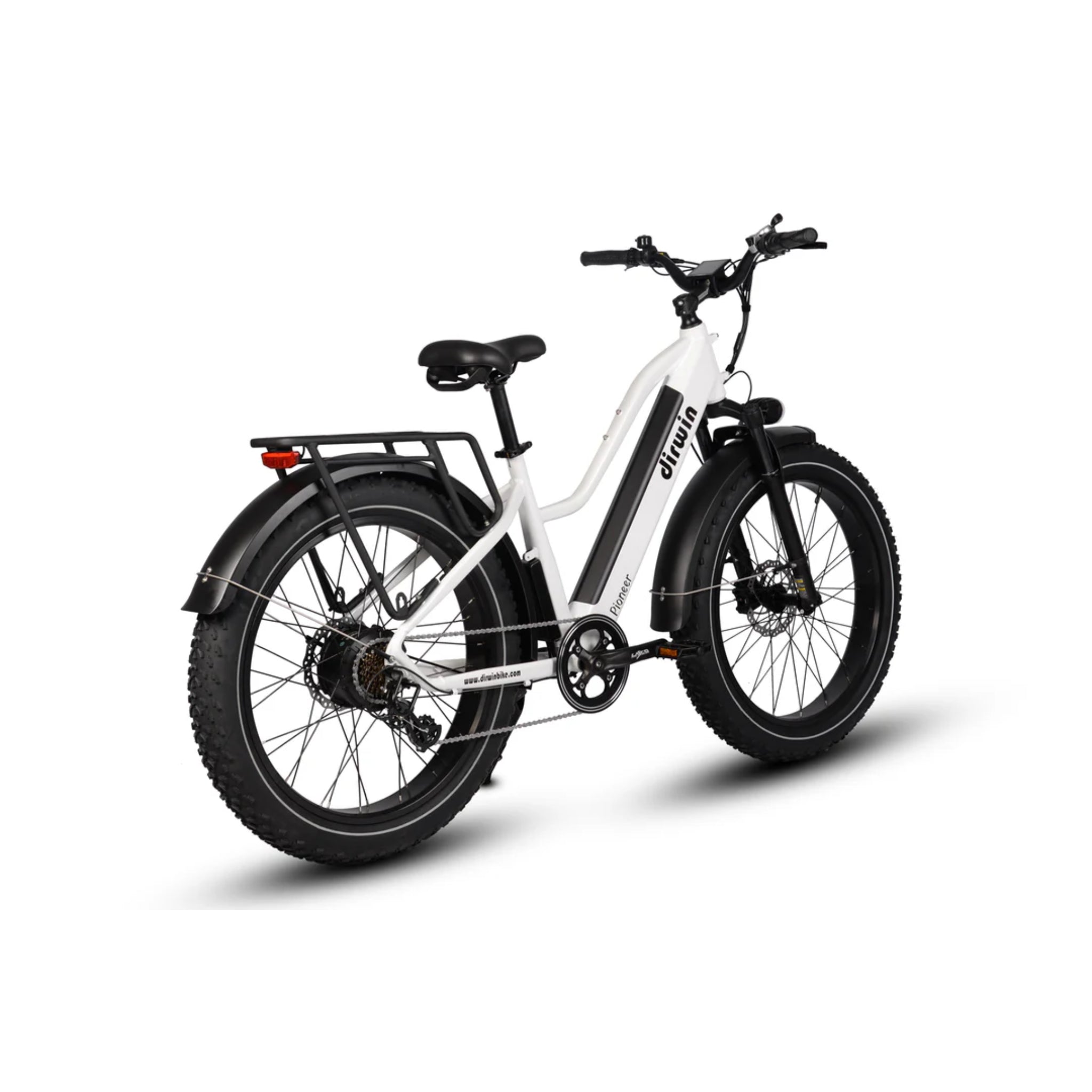

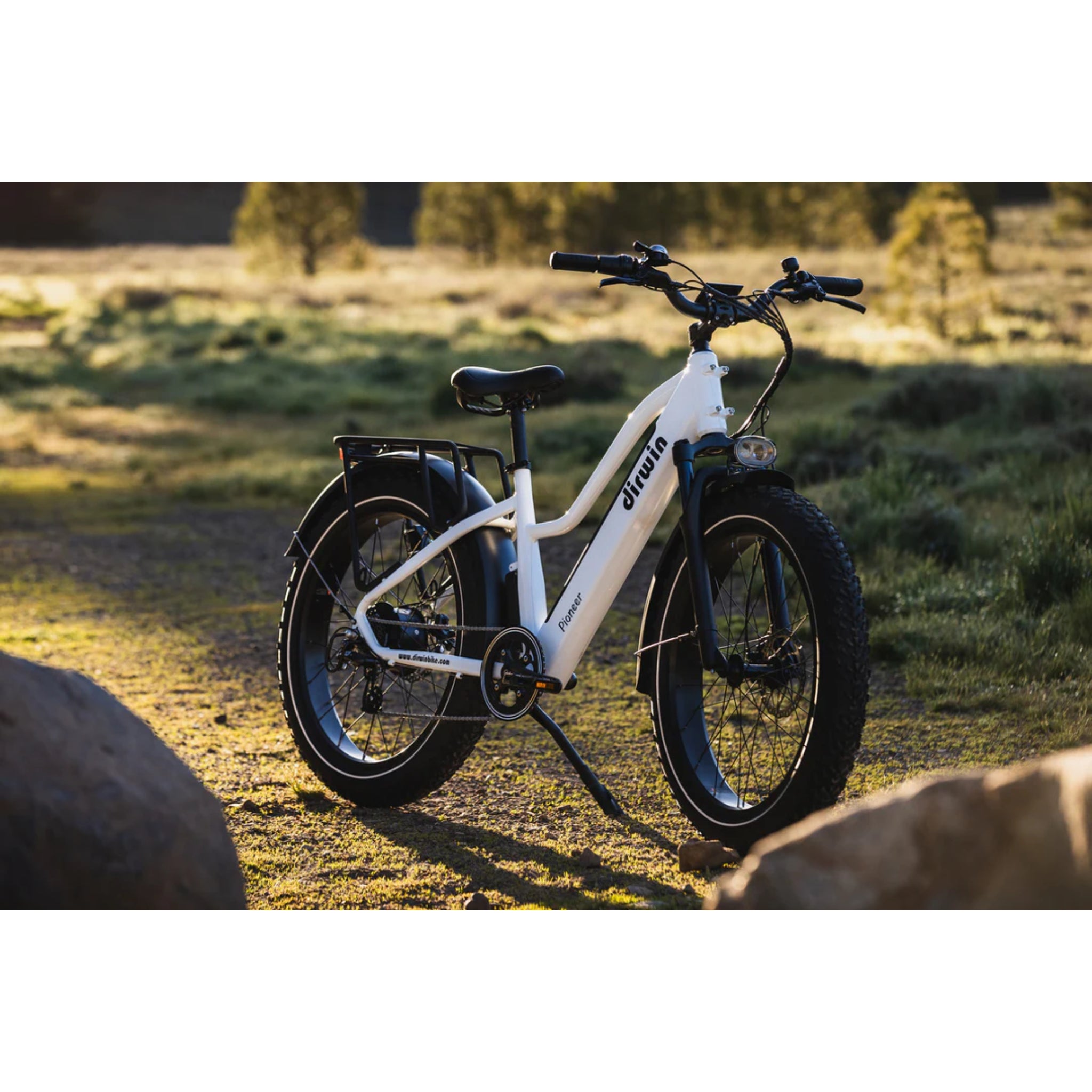

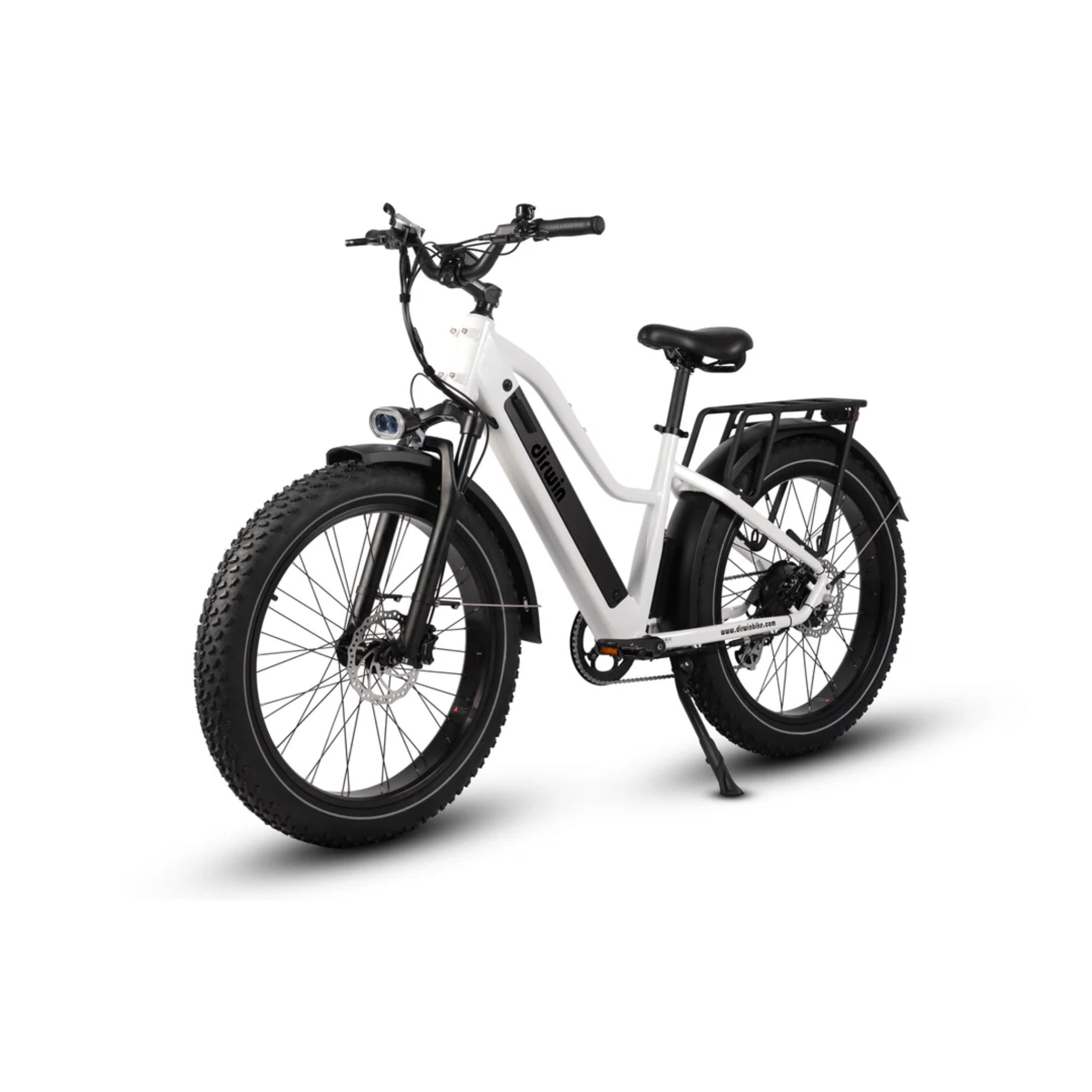

Available in both Step-Through or High-Step frame models.



Highlights:

  • MAX SPEED: 23 mph
  • MOTOR POWER: 750W 80Nm
  • RANGE: 60 miles
  • WEIGHT CAPACITY: 350 lbs

Battery Features

  • Battery: 48V 15Ah Lithium Battery (11lbs)
  • Charger: US-Standard 2A Smart Chargers
  • Charging Time: 5-8 Hours

Cargo Features

This bike can handle all your hunting and off-road adventures with an incredibly sturdy rear rack. This e-bike can carry a maximum load of 350 lbs.

Specs

  • Battery: 48V 15Ah Lithium Battery
  • Motor: 750W 80Nm Bafang Motor
  • Bike Frame: A6061 Aluminium Alloy
  • Display: 3.5" TFT LCD Color Display with USB-C Charging Port
  • Brakes: 180mm Tektro Hydraulic Brakes
  • Derailleur: 7-Speed Shimano Altus
  • Freewheel: Shimano
  • 7-Speed Shifter: Shimano 7S
  • Front Fork: Adjustable Hydraulic Suspension Fork
  • Charger: US-Standard 2A Smart Chargers
  • Range: 35-60 Miles
  • Pedal Assist:  5 Levels
  • Throttle: Half Twist
  • Tires: 26"x 4.0" Puncture-Proof Tires
  • Saddle: HQ-Comfort Saddle
  • Charging Time: 5-8 Hours
  • Product Weight: 74.9 lbs
  • Total Payload Capacity: 350 lbs
  • Controller: 48V 22A
  • Chain Ring: 46T
  • Handle Bar: Φ22.2*700L
  • Seat Post: Φ30.4*300L
  • Seat Post Clamp: Φ35.0
  • Recommended Rider Height: 5'4"-6'4"
  • UL Certifications: 2849 and 2271

Geometry

  • A. Total Length: 74.8"
  • B. Handle Bar Height: 45.5"
  • C. Wheelbase: 45"
  • D. Minimum Seat Height: 30"
  • E. Maximum Seat Height: 35.5"
  • F. Chain Stay Length: 20"
  • G. Standover Height: 31"
  • H. Top Tube Length: 23"
  • I. Wheel Diameter: 29"
  • J. Head Tube Length: 6"
  • K. Handle Bar Length: 27.5"
  • L. Rear Rack Height: 31.5"
  • M. Reach :15.5"

Maintenance Guides

  1. Pedals - https://youtu.be/kLUX7OYX3QQ
  2. Throttle - https://youtu.be/ljBYfNsXfyM
  3. Saddle - https://youtu.be/ncsbvek4GR4
  4. Kickstand - https://youtu.be/f-f80Sl5d4M
  5. Headlight - https://youtu.be/j0hhW5vhfe8
  6. Display - https://youtu.be/1mq9ZUizXc0
  7. Tail Light - https://youtu.be/vuwEUWMTXTQ
  8. Crank Set - https://youtu.be/dFyASAkaJ2M
  9. Motor - https://youtu.be/zdG3_SNt8aQ
  10. Hydraulic brake - https://youtu.be/jaTzJVSd_O8
  11. Handle bar - https://youtu.be/I4hInrB-z0o
  12. Fenders - https://youtu.be/450mq0DzpoU
  13. Front Basket - https://youtu.be/Dkt8s0w8VuY
  14. Controller - https://youtu.be/08rQg8BwHx8
  15. Sensor - https://youtu.be/PzSIhytQV_0
  16. Main wire - https://youtu.be/iIG6fnB3bO0
  17. Rear Brake - https://youtu.be/IId2NryHIII
  18. Brake Oil - https://youtu.be/kF9YnDjSQNk
  19. Flat Tire Maintenance - https://youtu.be/5qxWCgA56C8

Assembly Guide

Warranty

To learn more details about this product's warranty, please refer to our Warranty Page.



750W 80Nm MOTOR
48v 15 Ah BATTERY
60 miles RANGE
23 MPH TOP SPEED
350 lbs MAX PAYLOAD

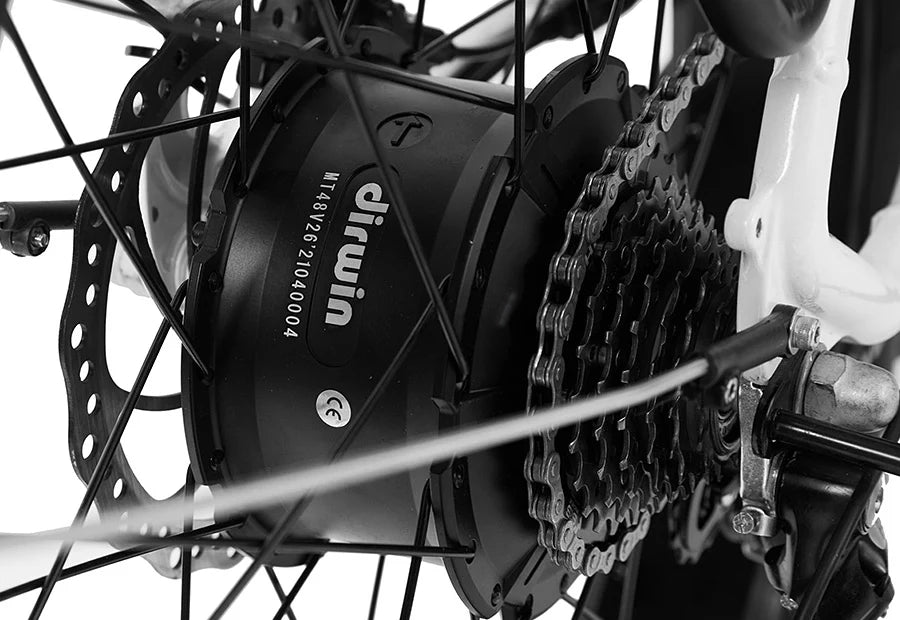

Motor

Reliable Bafang Motor

Sand, gravel, or snow... Conquer all-terrain with Dirwin Pioneer's high performance 750 Watt rear-drive motor which delivers all the power you need. Its 80Nm of torque won't leave you stranded and you have absolute control of the power delivery with Shimano's 7-speed Altus gears and 5-levels of pedal assistance.

Battery

Long Lasting Power

Our fully integrated, removable battery combined with our best in class controller, which features Dirwin’s “Power Smart” technology, enables the Pioneer to achieve the highest power output while consuming the least amount of electricity so that you can get up to 60 miles on a single charge!

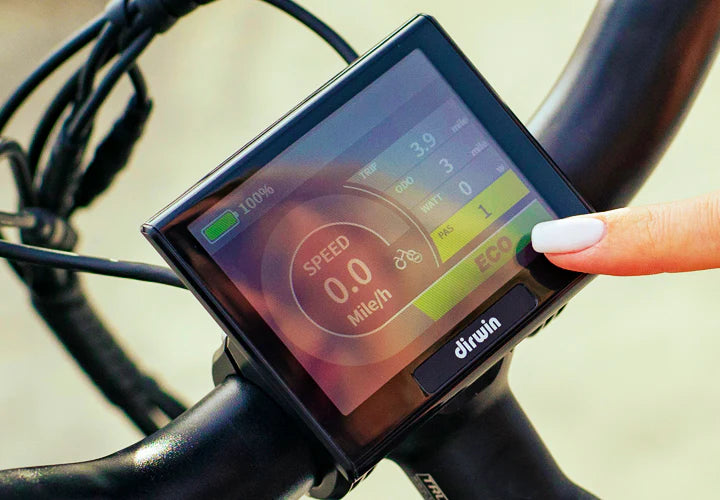

Display

COLOR SCREEN DISPLAY

The Pioneer Step Through’s ultrabright 3.5” color LCD display offers crystal clear visibility in any weather and it features all the information you need such as Speed, Odometer, Battery level, and more.

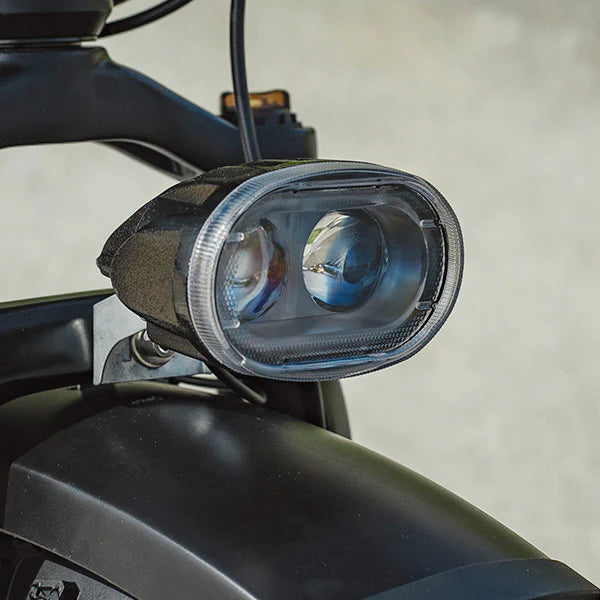

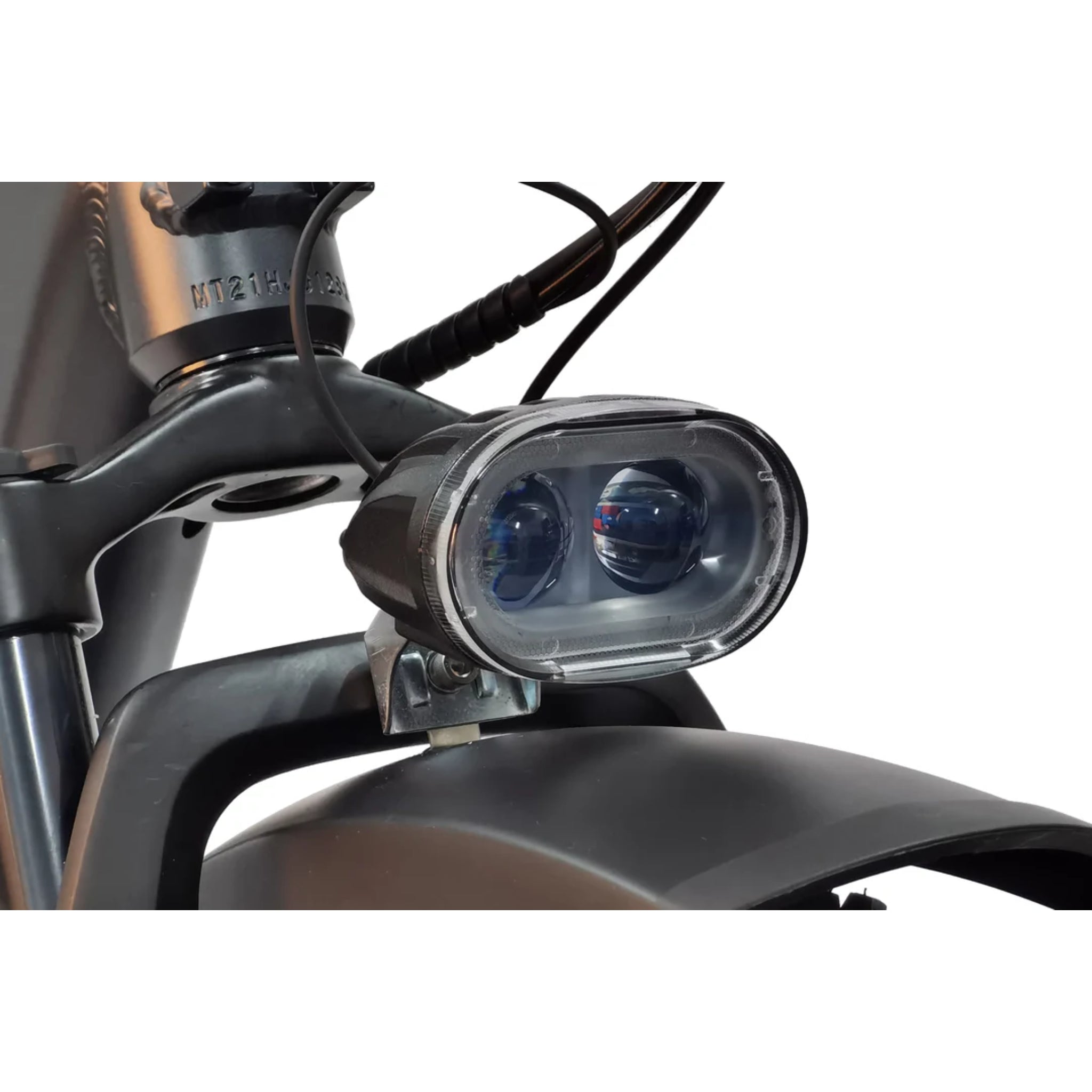

Headlight

Bright 48V LED Headlight

Rain or shine the powerful and bright front headlight keeps you on the right track in the most challenging conditions.

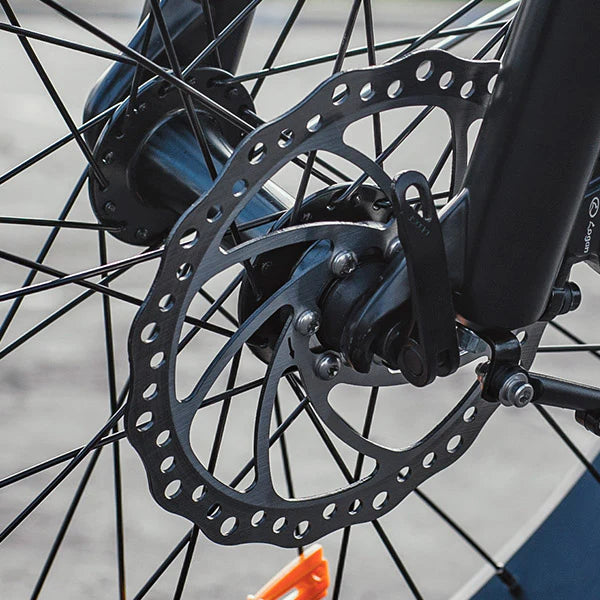

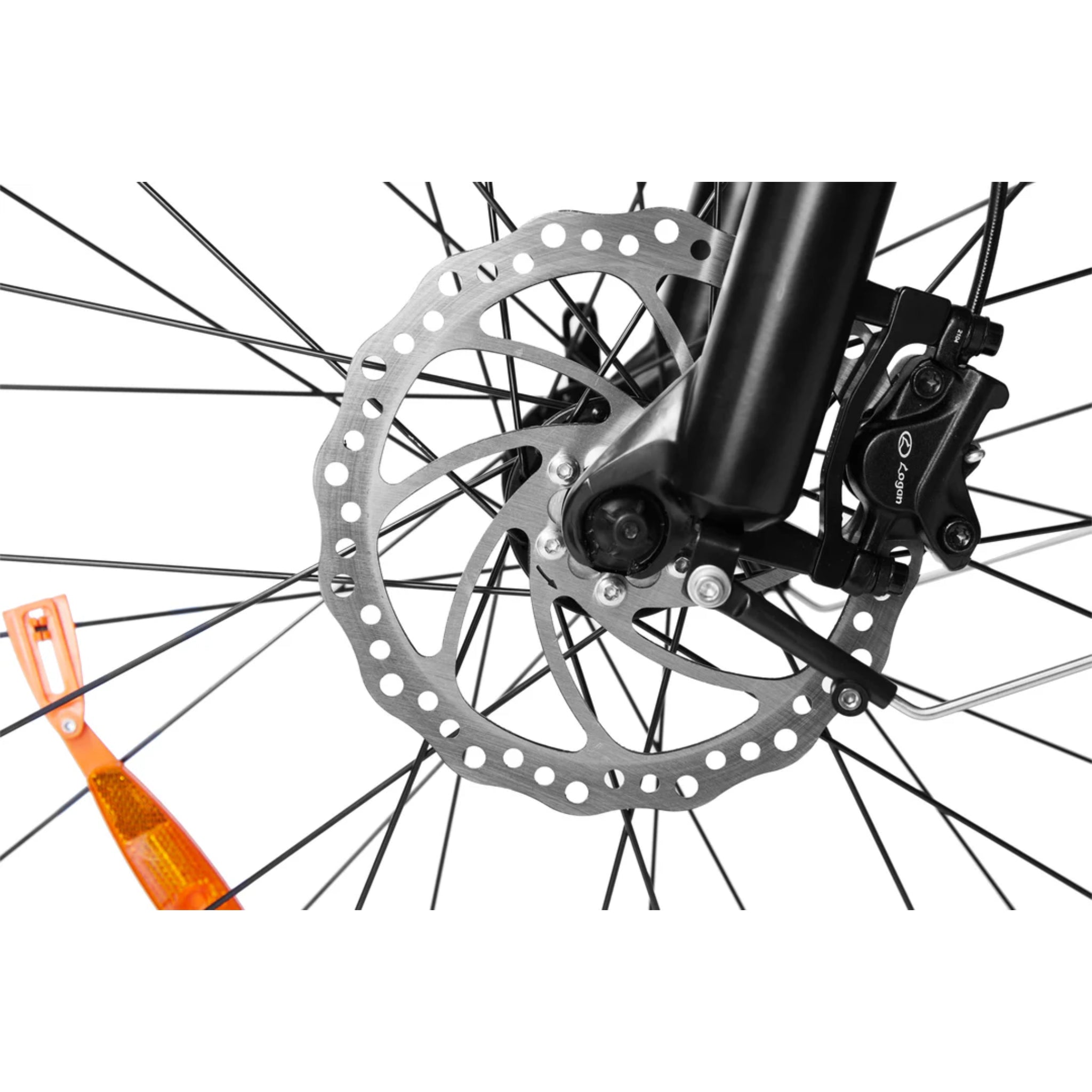

Brakes

Hydraulic Brakes

In tough terrain and fast speeds, you need to be able to trust your brakes. Powerful 180mm Hydraulic Brakes provide you with great stopping power whenever you need it.

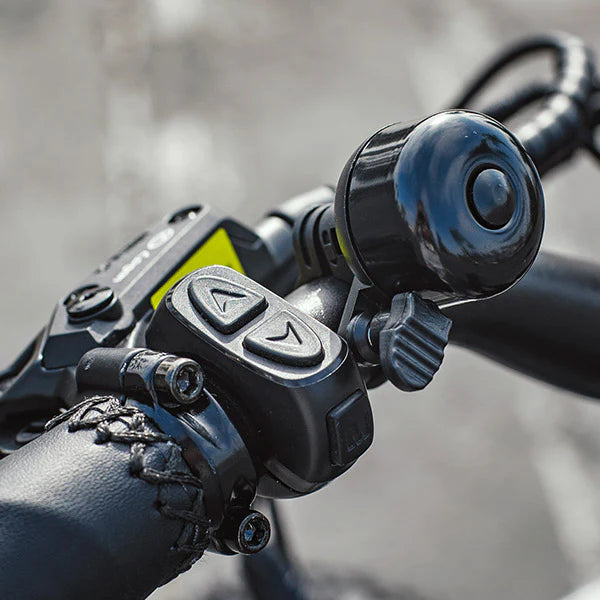

Handlebar

Adjustable Handlebar

The Handlebar features all of the controls for the gear and pedal assistance system (PAS) that you need. Including the assistance level control, display, half-twist throttle, and Shimano gear shift lever. It's even fitted with a sleek bike bell!

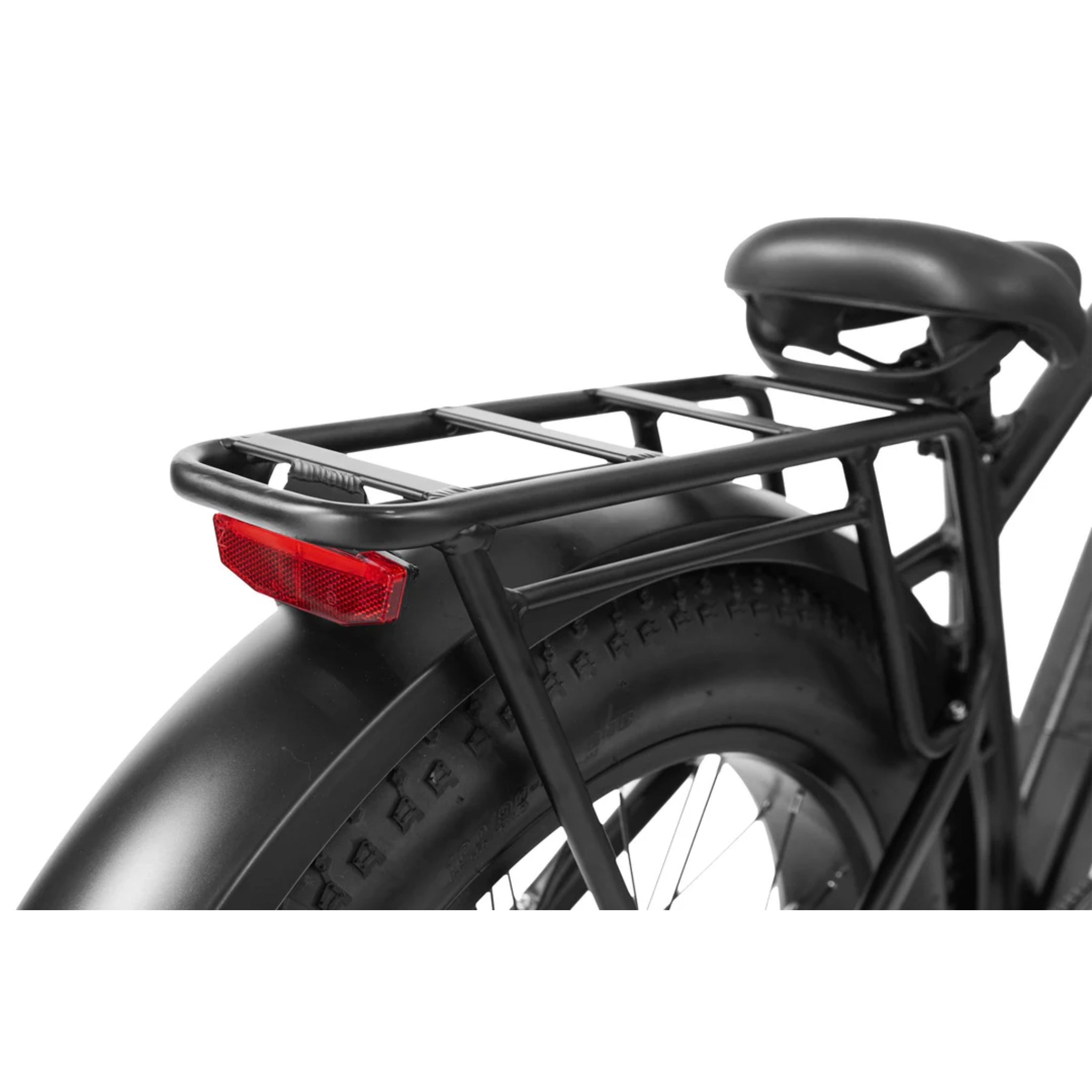

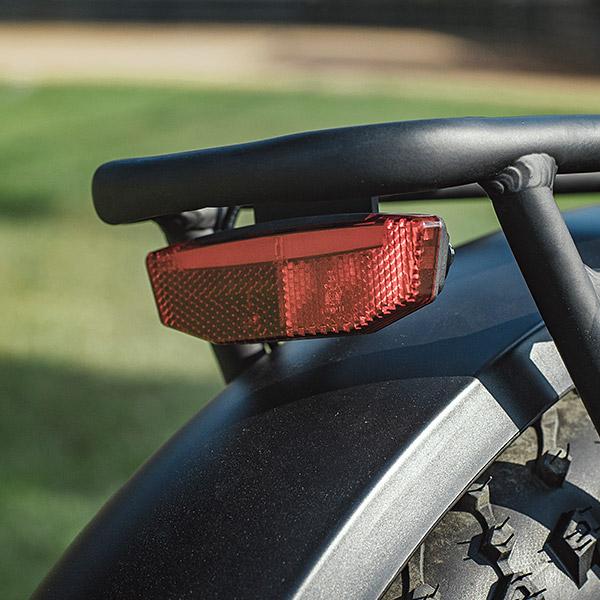

Taillight

Electric Rear Brake Light

Safety first. The rear brake light is pressure activated and sports a 48V LED light that will keep you visible in the dark and in bad weather.

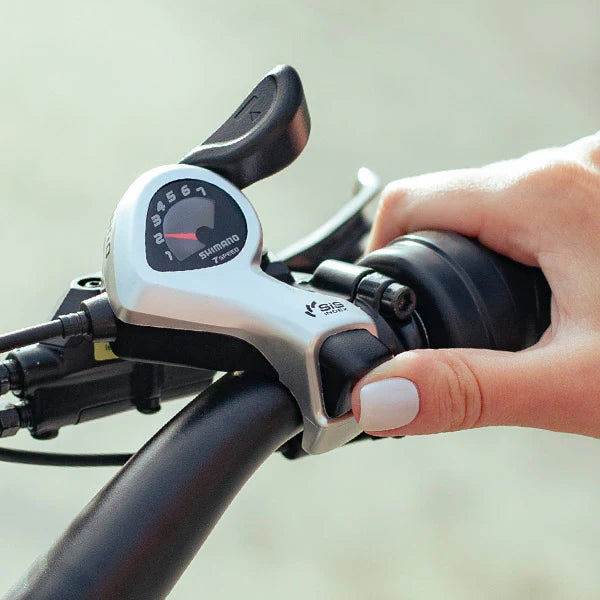

GEARS

Shimano 7-Speed gear system

Dirwin uses only the highest quality Shimano gear systems that give you the reliability and adjustability that you need. In combination with the motor, you can easily set how fast or heavy you want to pedal.

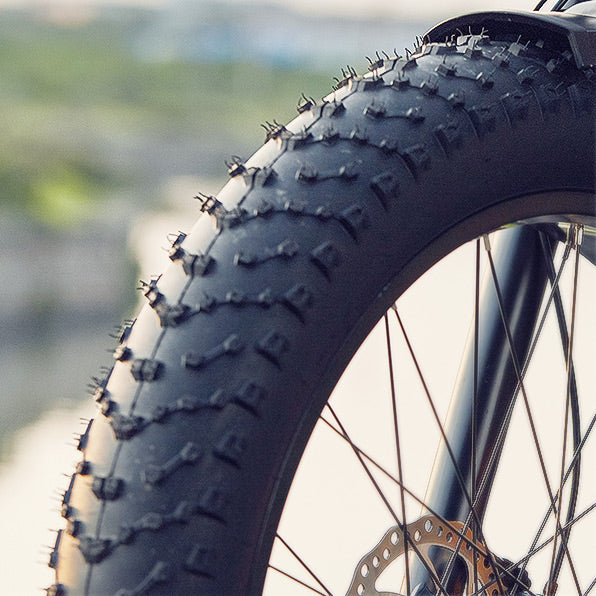

Tires

durable 26" x 4" Tires

The Pioneer's 4 inch fat tires and deep treads will transform trails into roads. Take on any terrain with confidence!

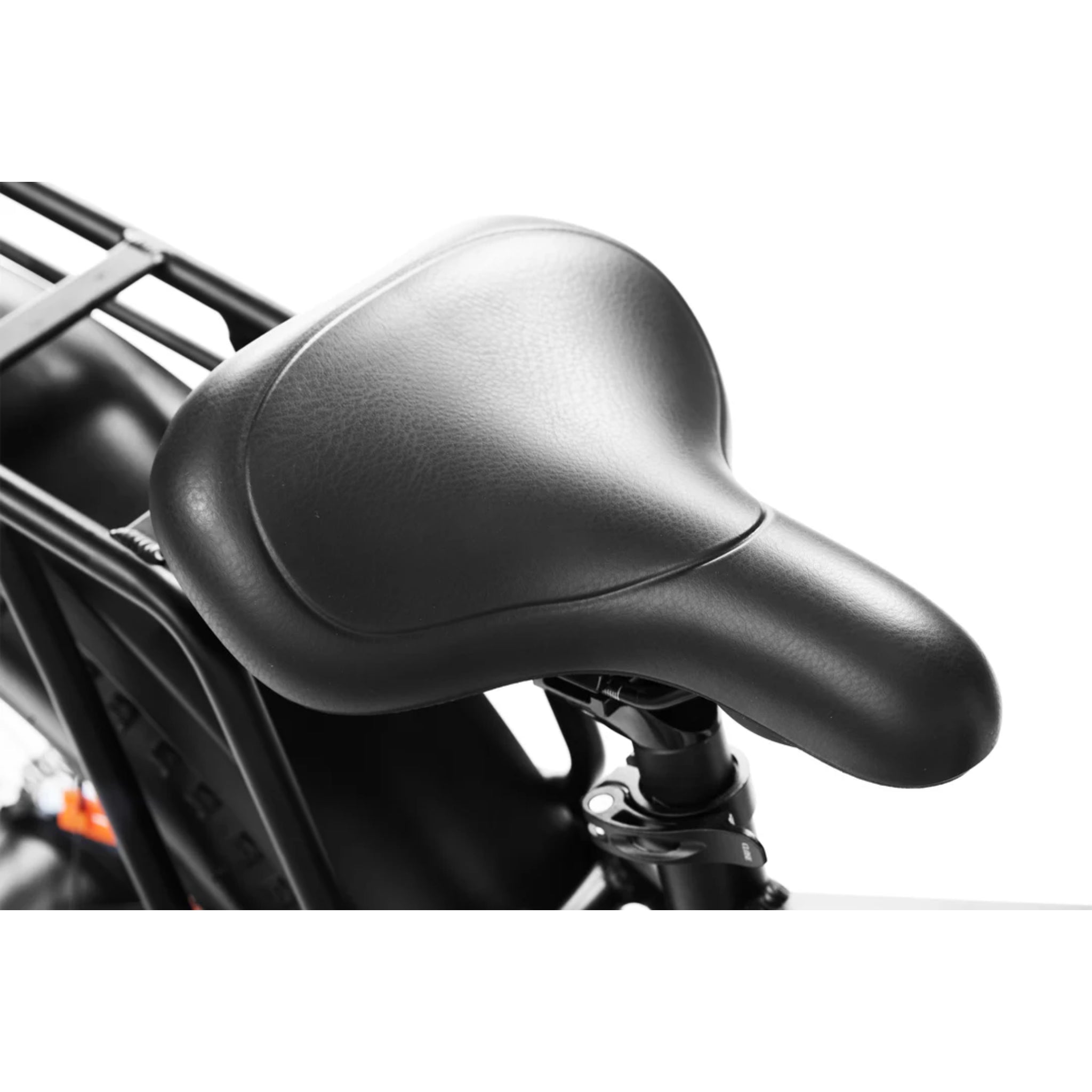

Saddle

Ultra Comfortable Saddle

An easily adjustable saddle combined with the adjustable handlebar will make sure that anyone can find a safe and comfortable riding position.

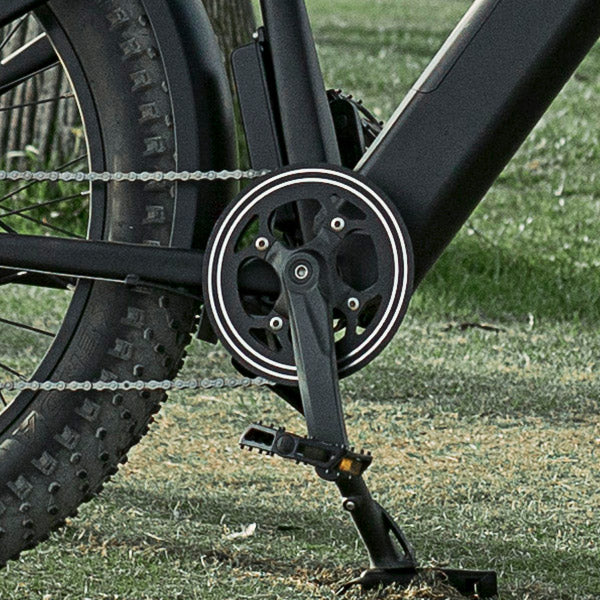

Crankset

High Quality Crankset

The durable aluminum crankset is built and adjusted perfectly with the Shimano gearset to protect the chain and decrease friction thus delivering the optimal pedaling experience.
