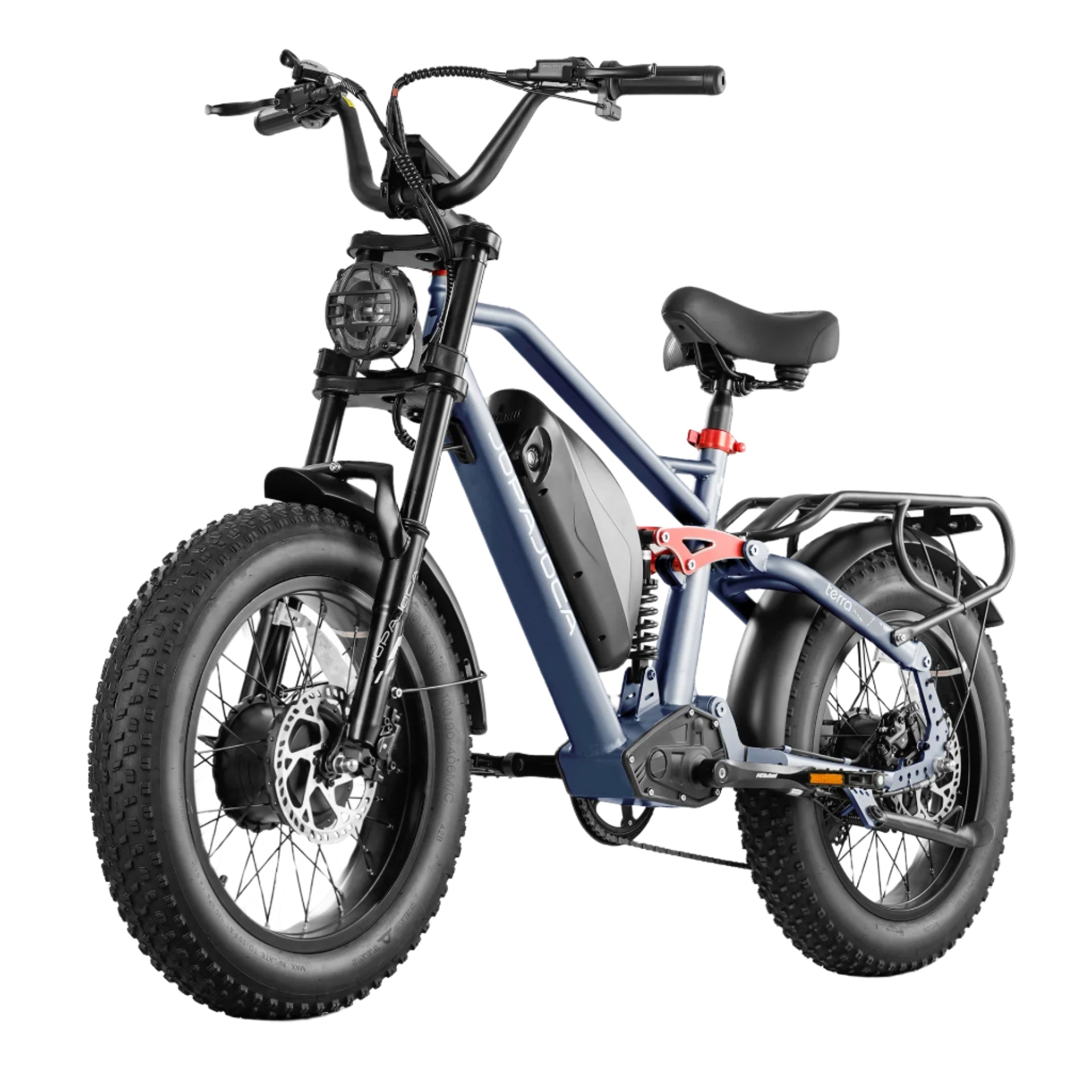

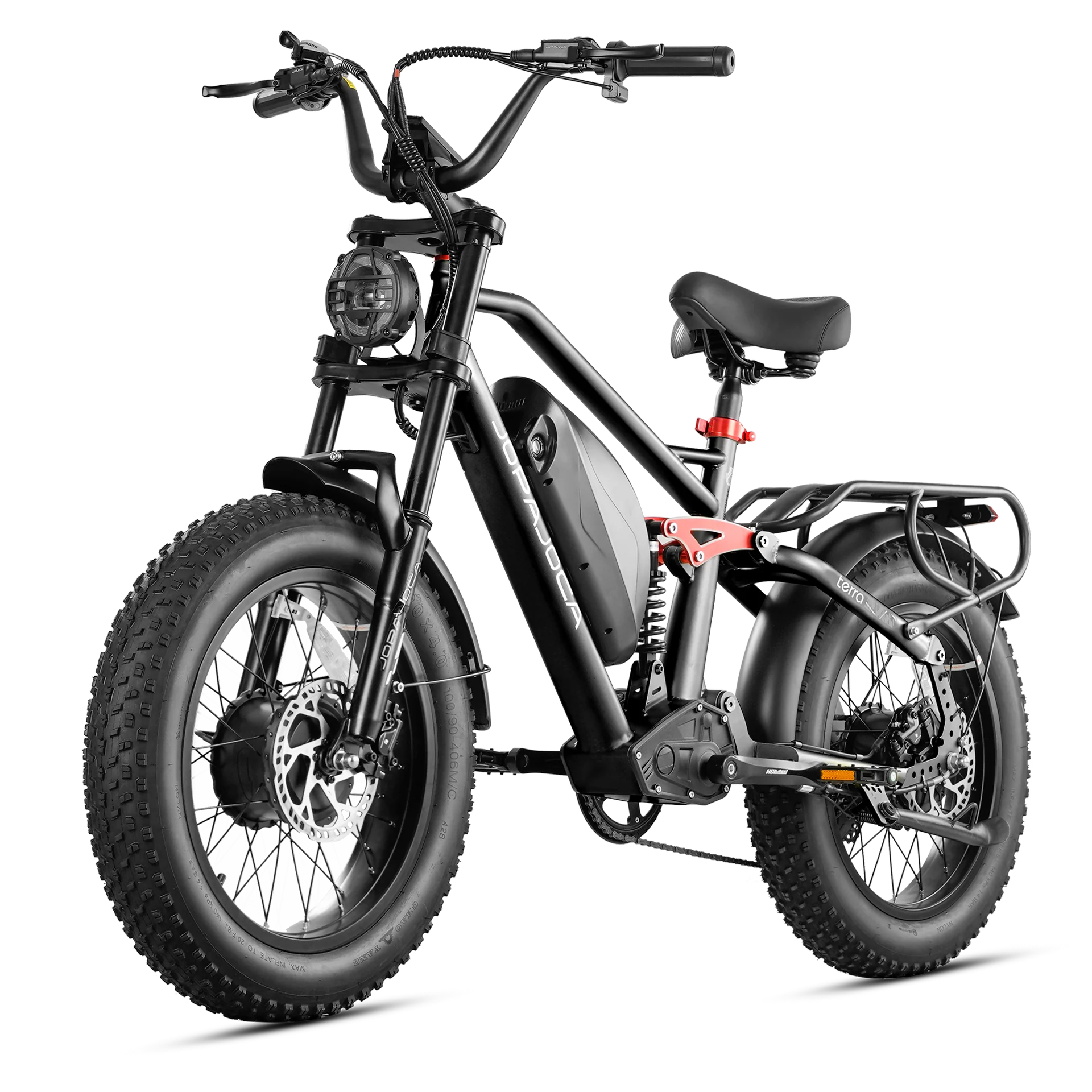

EAHORA - Terra II, Utility Electric Bike 28MPH

by EAHORA
In Stock & Ready to Ship
Regular price $1,099.00 USD
Sale price $1,099.00 USD Regular price $1,499.00
Save $400.00
Includes free Shipping
No taxes (EXCEPT FOR FLORIDA SALES)
Only 1 left in stock

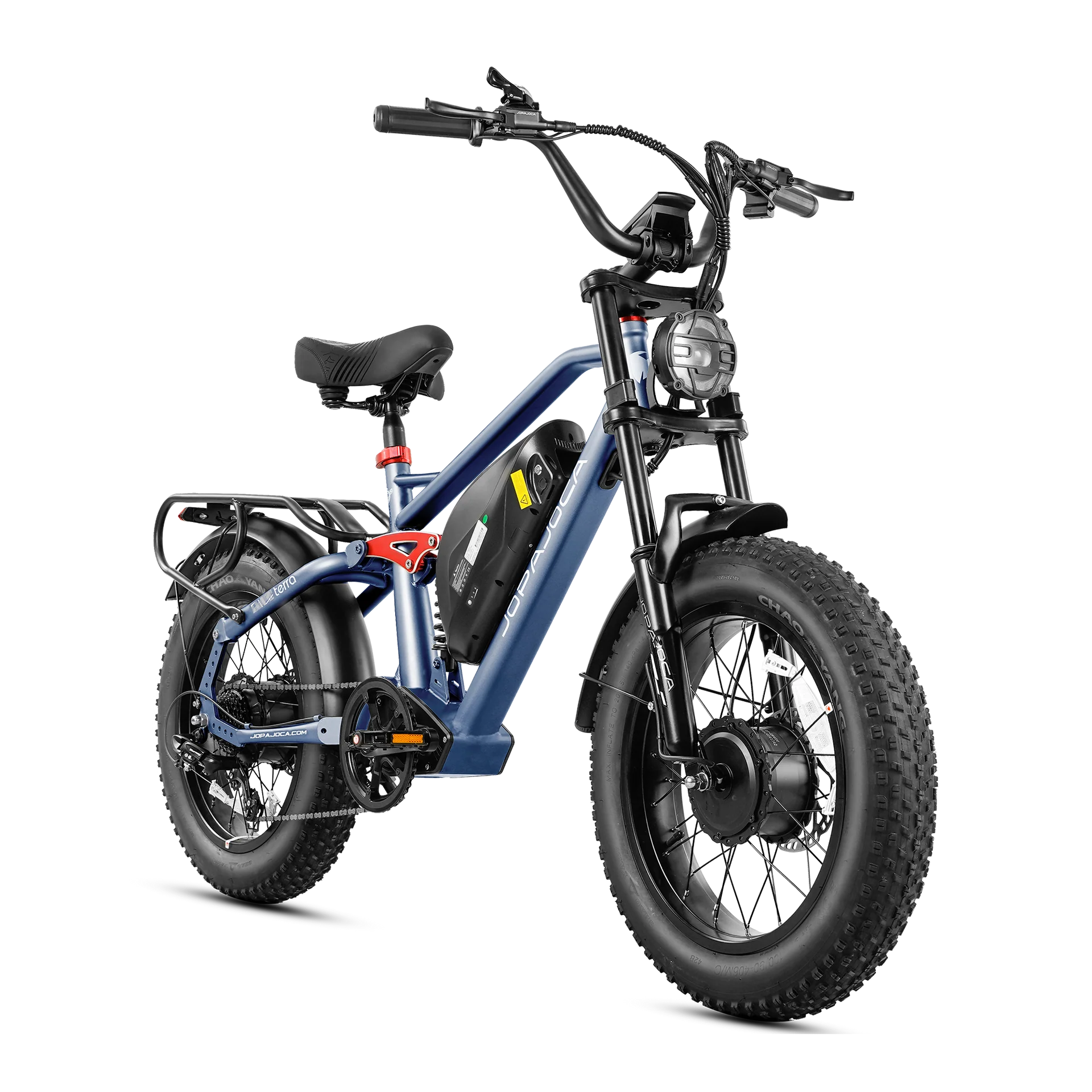

Color: Blue
Shipping calculated at checkout.

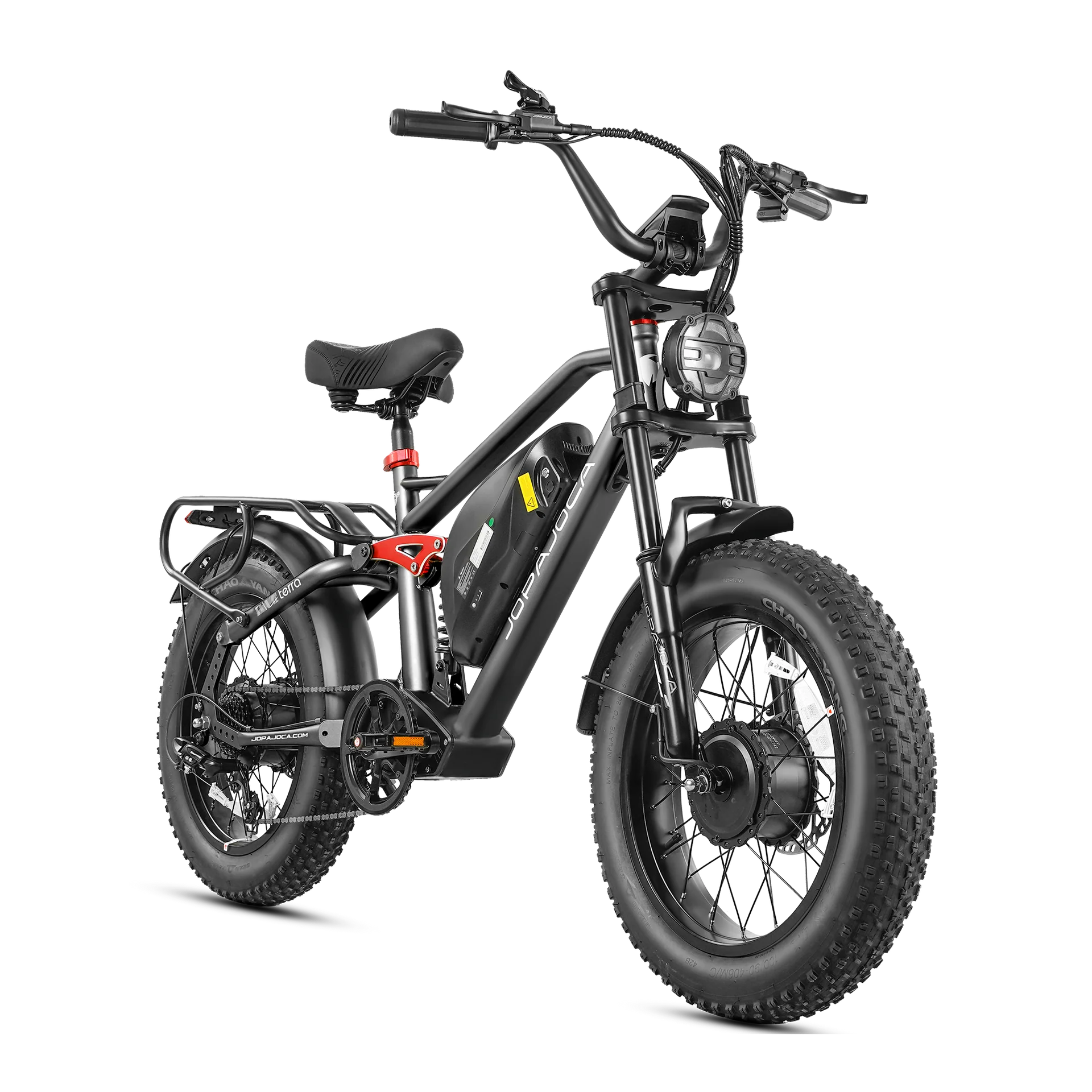

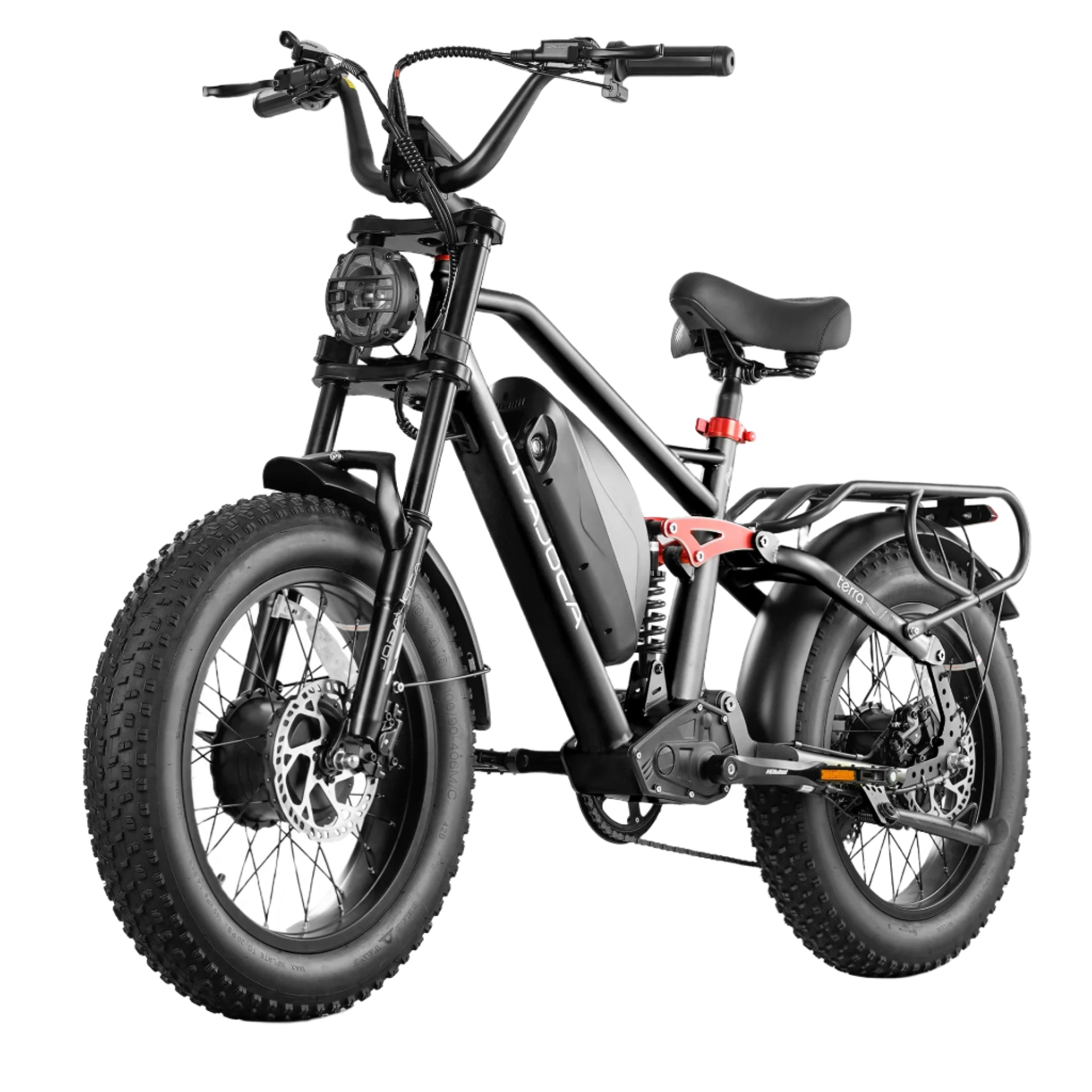

Meet the Eahora Terra II – a powerful yet sleek 20″ fat‑tire e-bike engineered to conquer city streets, rugged trails, and steep inclines alike. With its bold dual‑motor system, full suspension, and smart features, it’s ready for any adventure



All EAHORA E-bikes are UL Certified.



Highlights

  • MOTOR POWER: 1500W Dual Motor Drive
  • TOP SPEED: 28- 33mph for both pedal-assist and throttle.
  • RANGE:  43-55 miles with PAS, or 33- 41 miles w/o PAS
  • WEIGHT CAPACITY: 330 LBS

Battery Features

  • Battery: 48V 20Ah Lithium Ion Battery (960 Watt·hour)
  • Cells Type: Lithium-ion pouch cells, Grade A.
  • Battery Lifespan: ≥ 1,200 charge cycles to 80% of capacity.
  • Battery Charger: 48V 2Ak charger



Cargo Features

This bike can handle all your typical cargo hauling needs with a maximum payload capacity of 330 lbs. It is equipped with a rear rack that can hold an ample rear basket to help carry most gear.

  • Rear Rack: 48.5 x 17 x 6.6 cm or 19.1 x 6.7 x 2.6 inches
  • Rear Metal Basket: 45 x 33.5 x 14.5 cm or 17.7 x 13.2 x 5.7 inches (sold Separately)
  • Rear Basket Liner (sold Separately)


Specs

    • Battery Capacity: 960 Watt·hour (48V 20Ah).
    • Cells Type: Lithium-ion pouch cells, Grade A.
    • Battery Lifespan: ≥ 1,200 charge cycles to 80% of capacity.
    • Motor Power: 2 x 750W (1500W)
    • Motor Torque: 2 x 65 Newton·metre (max).
    • Motor Type: Brushless rear hub motor, IPX6.
    • PAS Levels: 5 Levels with Cadence Sensor.
    • Throttle Type: 5 Levels twist, slightly delayed response (safe design).
    • Display / Dashboard: 4" monochrome LCD, USB charge port
    • Shifting Gears: Shimano 7s 14-28T, 48T chainring.
    • Battery Charger: 48V 2A charger
    • Additional Modes: Cruise Control, 6 km/h Walk.
    • Range per Charge: 43-55 miles with PAS, or 33- 41 miles w/o PAS
    • Max Load: ≤ 330 lbs to ensure the performance and safety.
    • Rider Height: 5'4" - 6'1", or inseam ≥ 26.8".
    • Bike Weight: 91lbs with the battery installed.
    • Ideal Use: IPX6 weather-proof, off-road / mountain / urban riding.
    • Brake System: Hydraulic disc brakes with motor cutoff.
    • Brake Rotors: 180mm (φ)  x 2.3mm (t) steel rotors.
    • Brake Caliper/Pads: 2-Piston calipers with semi-metallic pads.
    • Bike Frame: High-carbon steel 20" x 15" frame.
    • Front Fork: Adjustable 80mm tavel coil suspension.
    • Shock Absorber: 4-Bar-Link coil suspension, 50mm travel.
    • Head Light: 1,500 Lumens (15W)  LED with built-in horn.
    • Tail Light: LED with integrated brake signal blinker.
    • Additional Reflectors: Pedals, spokes, tires
    • Tire Type: Chaoyang 20" x 4.0" tires with tube (28-33 psi).
    • Saddle: Leather wide seat with memory foam.
    • Handlebar: Aluminum 680mm x 31.8mm (φ, center), rise.
    • Bell: Electric horn built-in headlight.
    • Crankset: 170mm Aluminum, 48T chainring with cover.
    • Pedals: WELLGO 16/9 aluminum alloy platform.
    • Derailleur: SHIMANO RD-TY300 7 speed.
    • Shifter: SHIMANO ASLTX50R7CT 22.2mm x 2400mm.
    • Freewheel / Cassette: SHIMANO MF-TZ500-7 14-28T.
    • Rims: 36H aluminum alloy rims.
    • Spokes: Black stainless steel
    • Grips: 120mm x 22.2mm (φ) rubber, anti-slip.
    • Seatpost: Aluminum seapost with 38.1mm clamp
    • Headset: Integrated threadless headset.
    • Stem: 31.8mm (φ, handlebar) * 35° A-head.
    • Kickstand: Aluminum alloy heavy-duty.
    • Racks & Basket: Customized Rear rack
    • Fenders: Included plastic front and rear fenders.

    Riding Modes

    • 5 Levels Pedal-Assist (Cadence)
    • 5 Levels Throttle
    • 8 Seconds Auto-Cruise
    • 7-Speed Non-Electric
    • 6 KM/H Walk

    Geometry

    Ⓐ - Total Length: 72.05" or 183CM
    Ⓑ - Wheel Base: 48.8" or 124CM
    Ⓒ - Seat Height: 32.3" - 40.2" or 82CM - 102CM
    Ⓓ - Handlebar Height: 42.5" or 108CM
    Ⓔ - Rim Diameter: 16.4" or 42CM
    Ⓕ - Standover: 24.2" or 61.5CM
    Ⓖ - Reach Distance: 22.8" or 58CM
    Ⓗ - Chain Stay Length: 18.9" or 48CM

    Ⓘ - Seat Angle: 74.7°
    Ⓙ - Seat Tube Length: 10.6" or 27CM
    Ⓛ - Top Tube Length: 23.6" or 60CM
    Ⓜ - Bike Width: 28" or 71CM

    • Recommended Rider Height: 5'4" - 6'4" or 165CM - 195CM

    Owner's Manual

    Please refer to the Owner's Manual here.

    For Display Manual, please refer here.

    Assembly Guide

    What's in the Box?

    • Electric Bike * 1 (85% assembled)
    • Ebike Battery * 1 (2 keys)
    • Battery Charger * 1
    • Front Tire * 1
    • Headlight * 1
    • Pedals * 2 (left & right)
    • Screws & Toolkit * 1



    Warranty

    To learn more details about this product's warranty, please refer to our Warranty Page.

    2 x 750W 190Nm MOTOR
    48V 20Ah BATTERY
    33-55 miles RANGE
    33 MPH TOP SPEED
    330 lbs MAX PAYLOAD

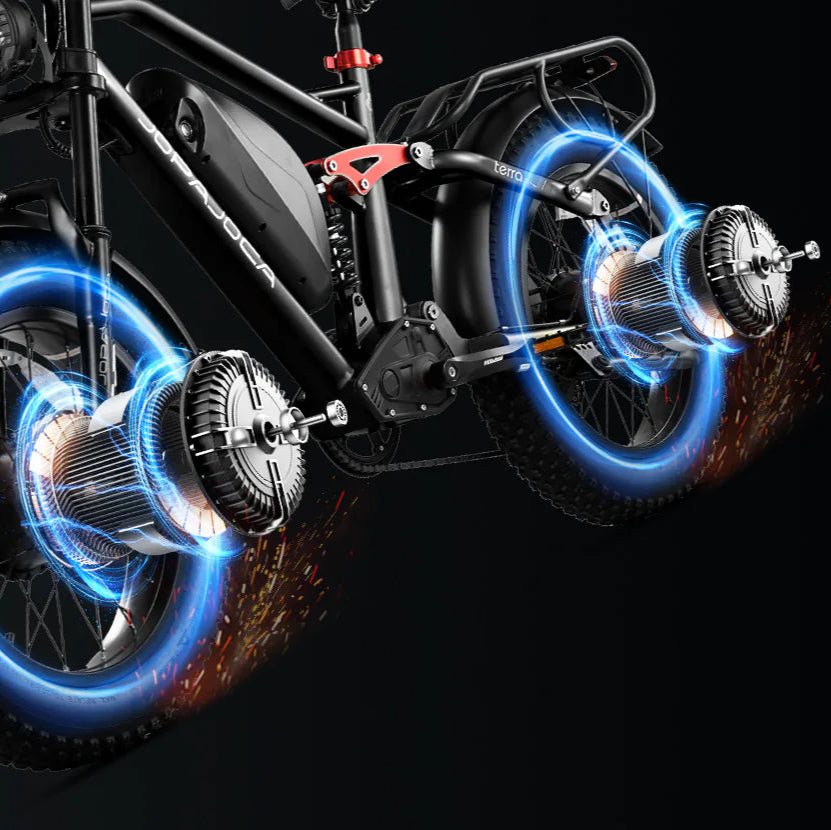

    Motor

    AWD 1500W Brushless Motor

    Enjoy the exhilaration of the Eahora Terra II's dual-motor system, featuring two powerful 750W motors that deliver a
    remarkable 65N-m of torque each. This system guarantees every ride is an adventure, combining style, safety, and
    comfort seamlessly.

    Max Torque: 2 x 65N.m

    Battery

    48V 960Wh Battery

    The formidable 48V 20Ah high-capacity lithium-ion battery guarantees an ample supply of power to conquer any terrain you encounter.

    Throtte Mode Range: 33 - 41 Miles
    PAS Mode Range: 43-55 Miles

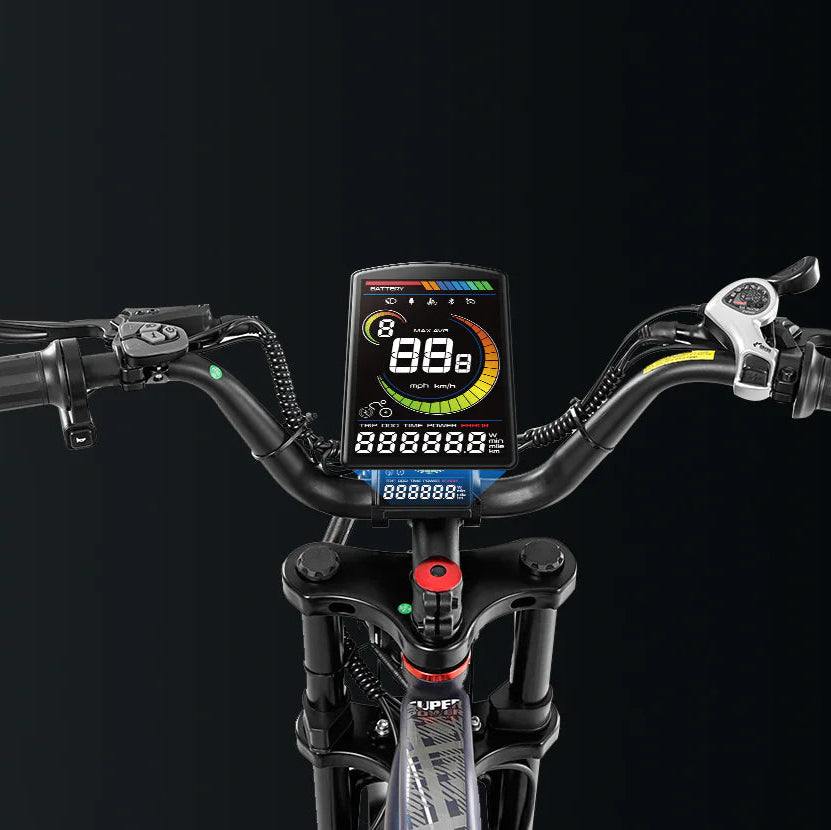

    Display & Modes

    Intelligent Display

    Advanced LCD color display elevates your riding experience with its exceptional features. It delivers vibrant visuals, ensuring crystal-clear visibility. With this display, you can effortlessly keep tabs on crucial ride details at a single glance. From real-time speed and distance traveled to monitoring your battery level and assist mode, all the essential information is presented in an intuitive and easily comprehensible manner.

    Riding Modes: 5 Modes
    Additional Modes: Walk, Cruise control

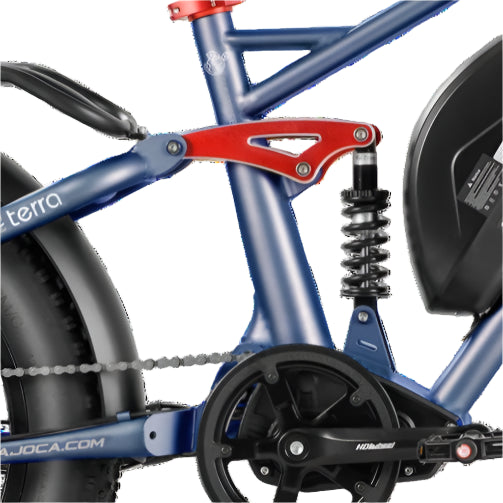

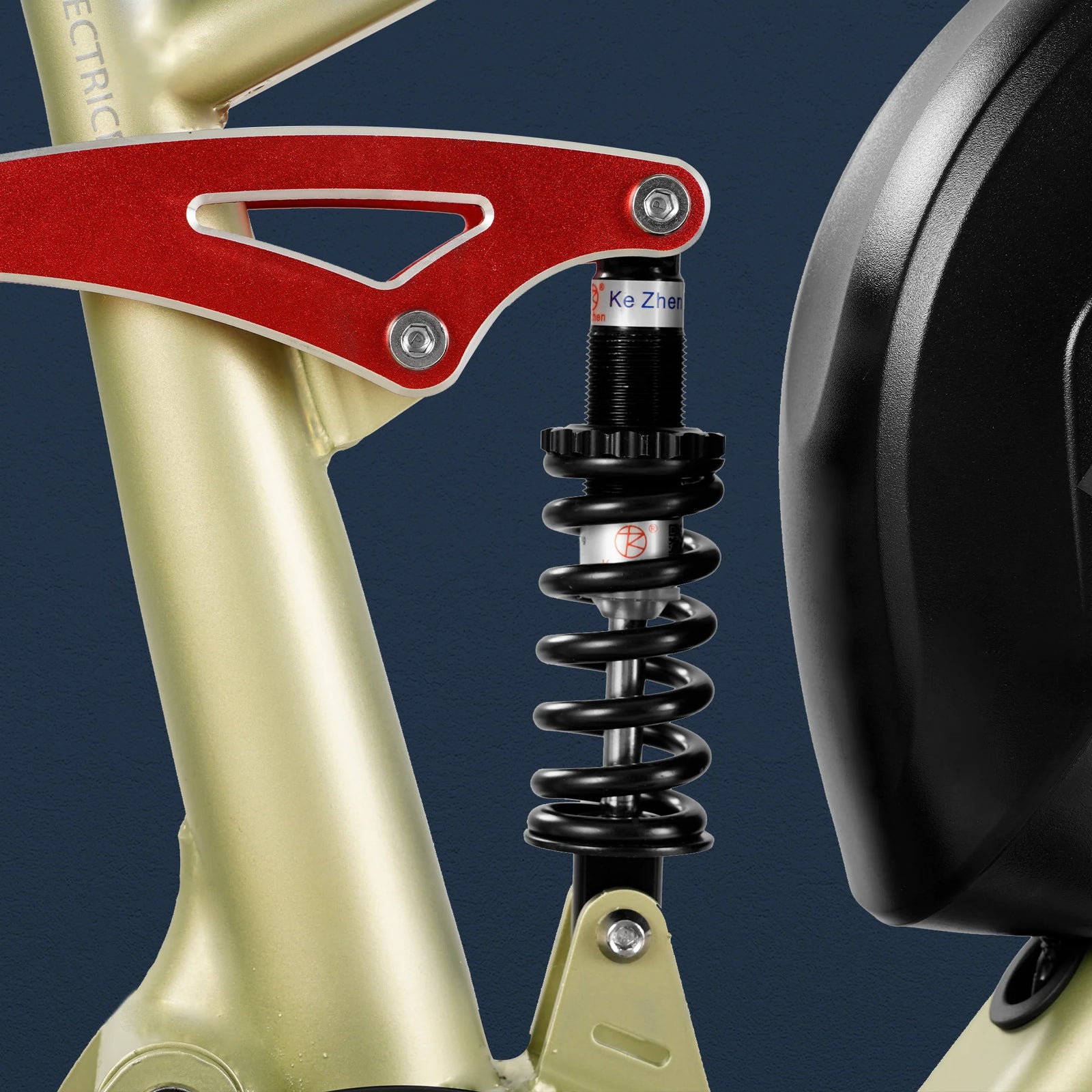

    Suspension

    50MM Air Valve Shock Absorber

    Feature a 4-link rear suspension system that expertly controls the interaction between the rear wheel and the frame. This design ensures maximum traction, enhanced shock absorption, and a smooth ride across diverse terrains

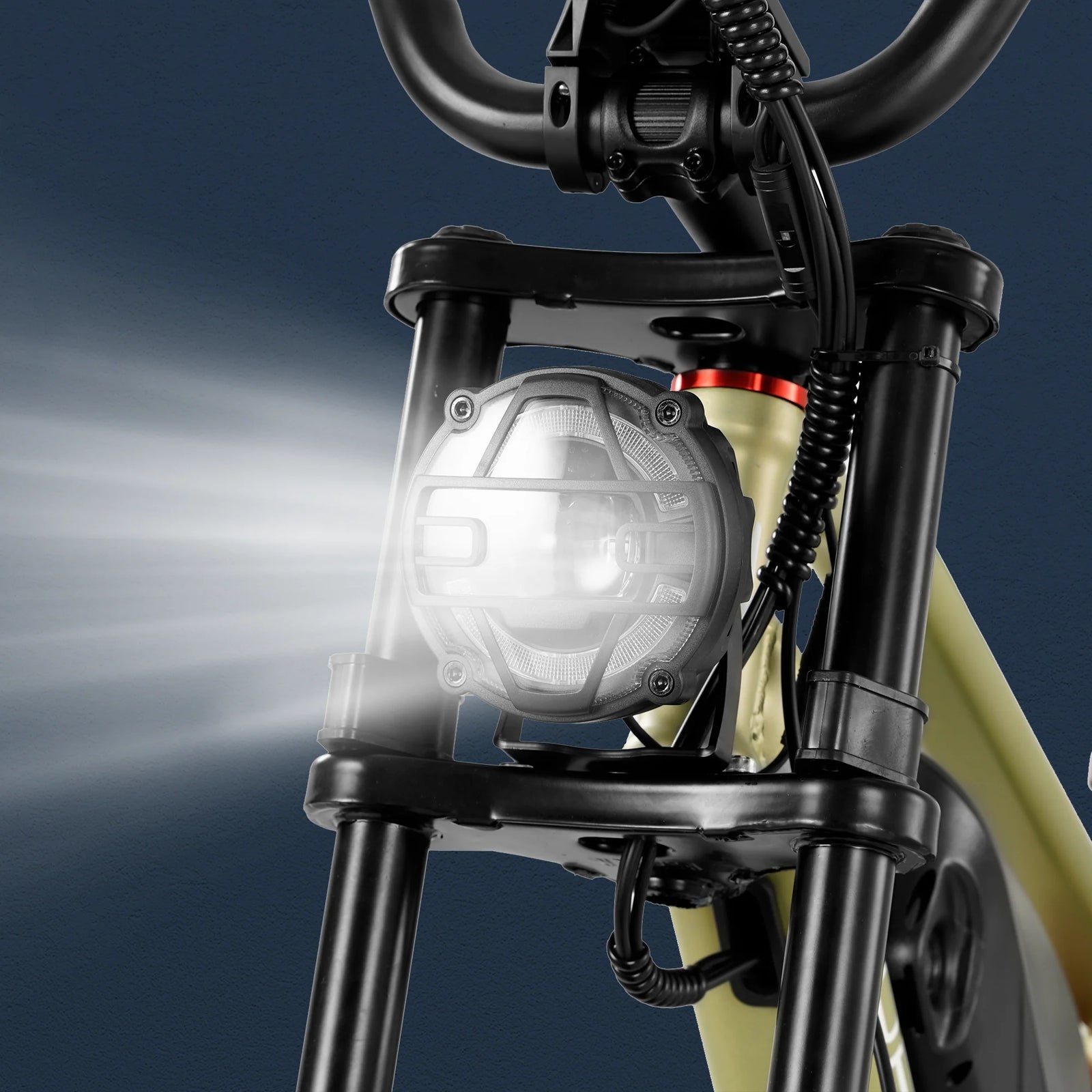

    HEADLIGHT

    Superior Bright Headlight

    Upgrade your night riding with 15W headlights - see clearly, ride confidently.

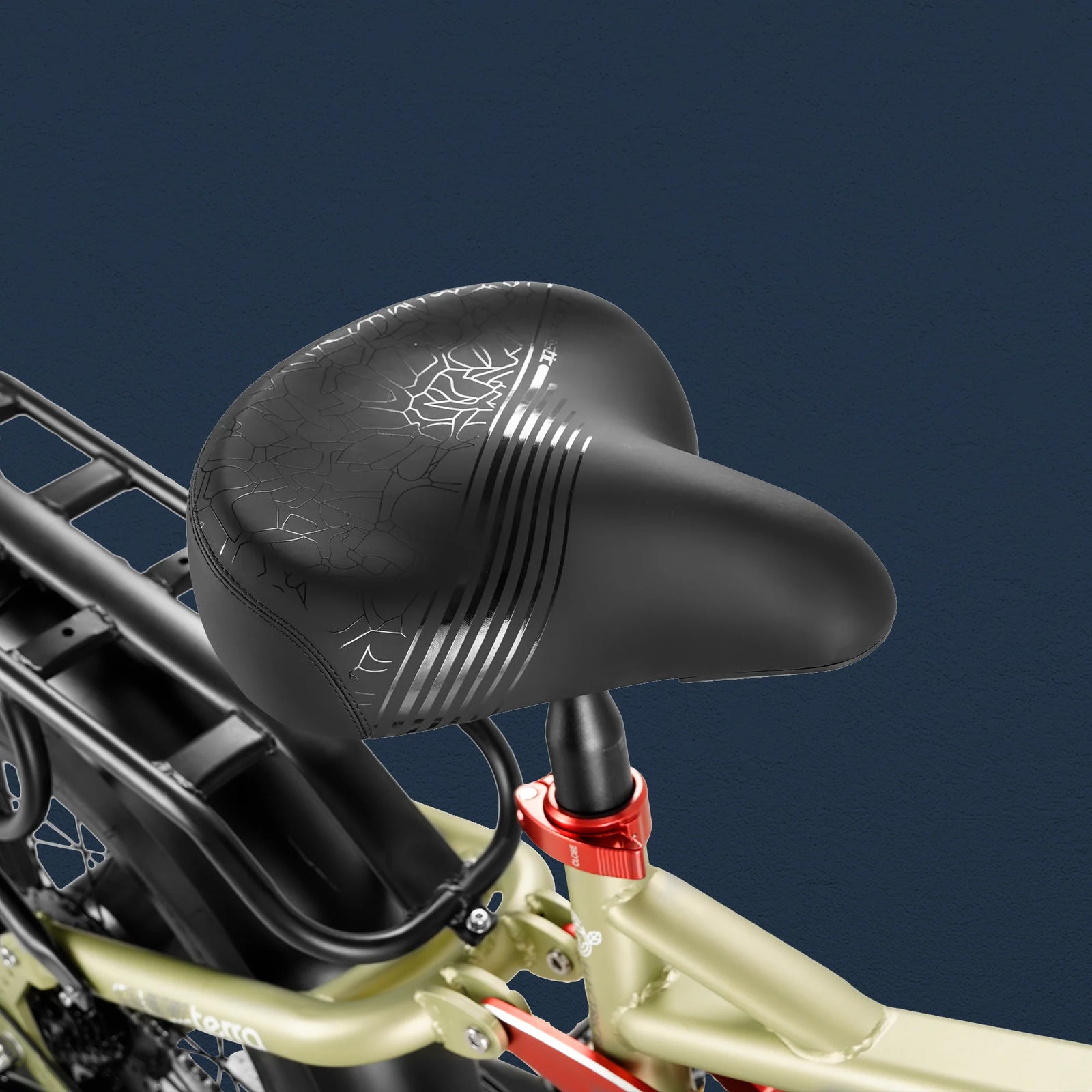

    Seat

    Comfort Saddle

    Indulge in the luxury of our foam-layered masterpiece, engineered with the exceptional performance of dual shock-absorbing balls. Revel in unmatched comfort and experience supreme shock absorption like never before.

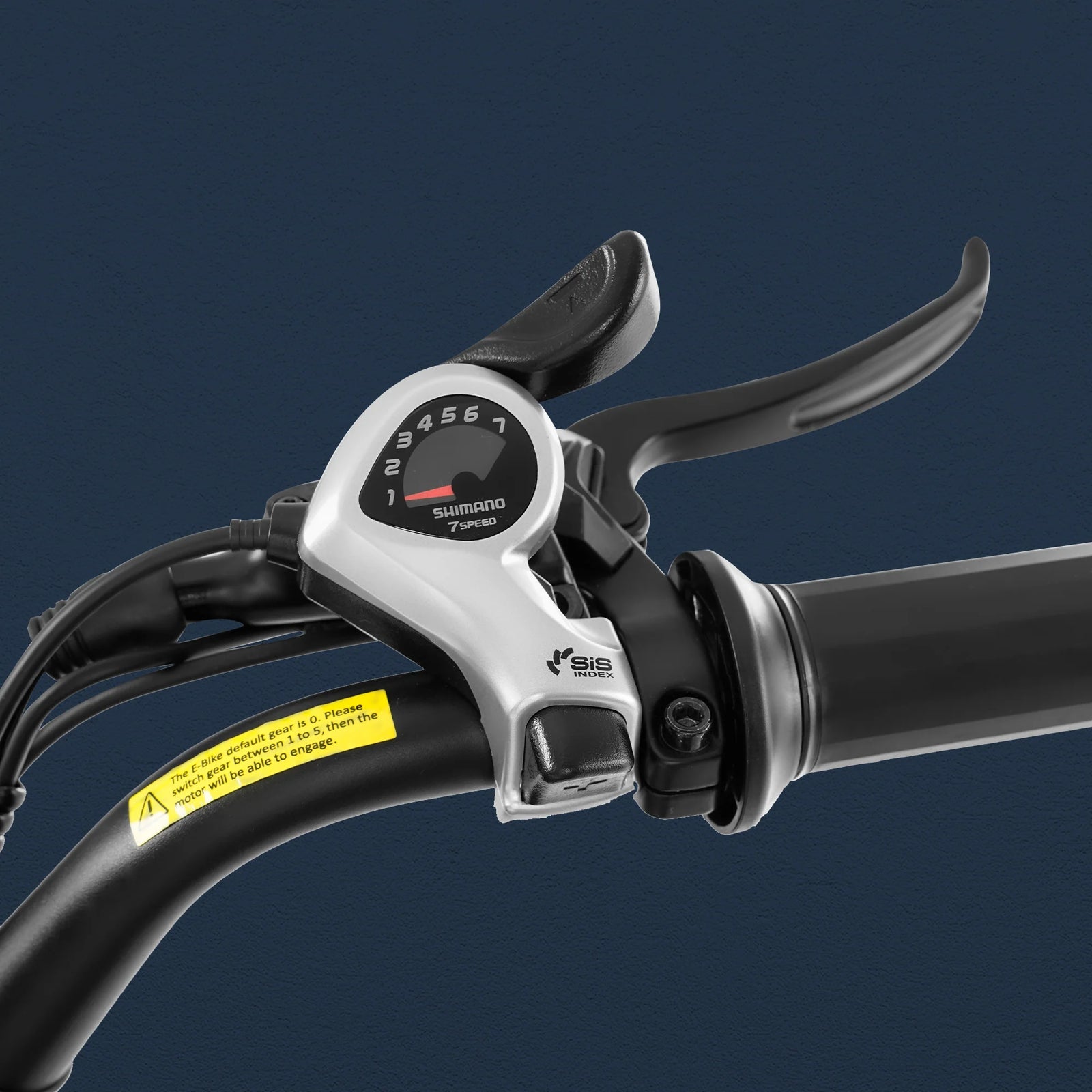

    Gears

    Shimano 7-Speed Shifting System

    The chain shifter seamlessly transitions between 7-speed gears, ensuring consistent performance across all terrains. Experience unparallel control over your ride, effortlessly navigating various landscapes with precision and ease

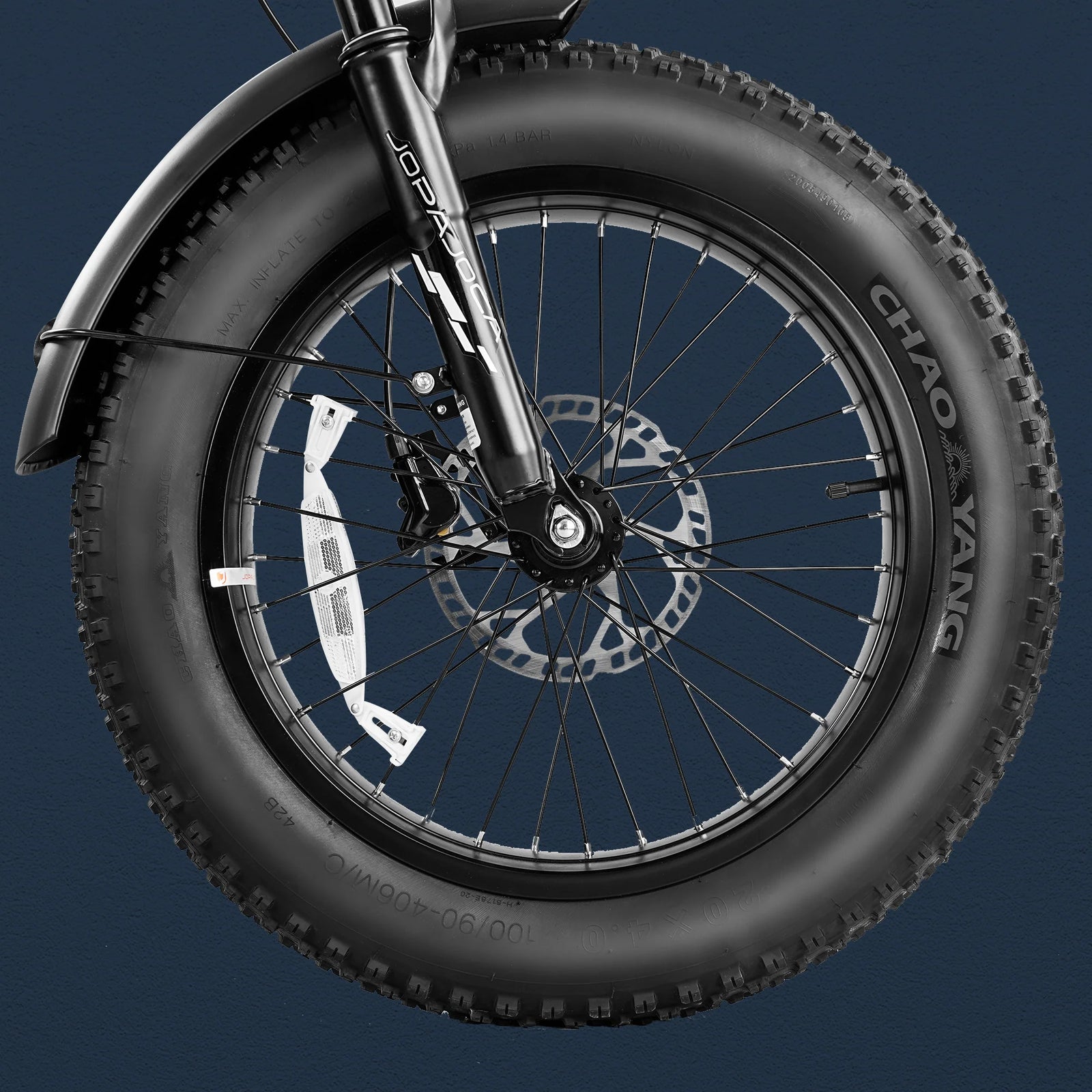

    Tires

    All-Terrain Tires

    Experience superior grip, handling, and responsiveness for optimal traction with 20"x 4" fat tires. Reflective strips enhance visibility in low-light conditions, while the anti-puncture design offers strong protection against potential tire damage.

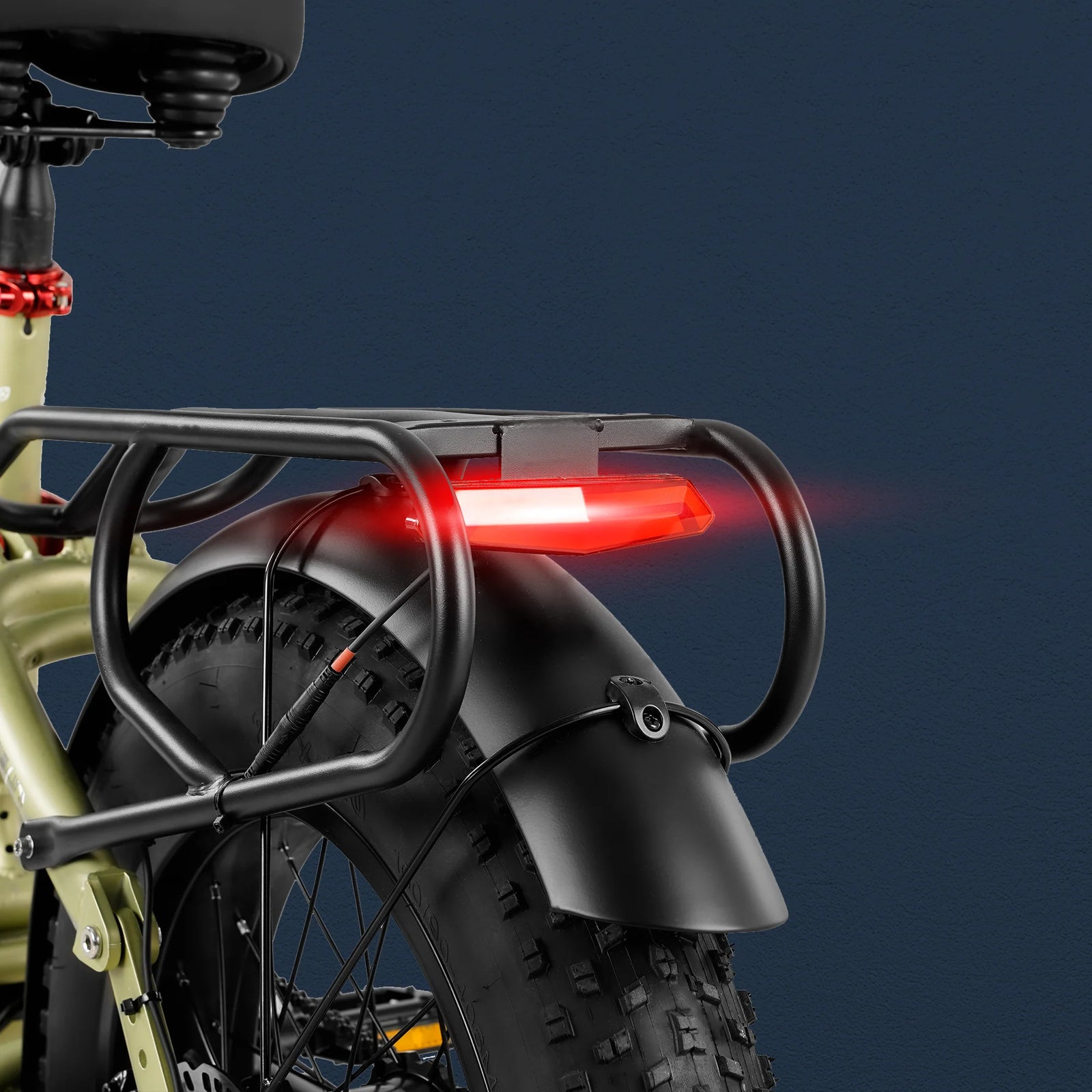

    Brake Light

    Integrated Brake Light

    Durable rear rack featuring an integrated brake light. Crafted from high-quality, lightweight materials, carry your gear securely while enhancing your bike's safety. The built-in brake light offers increased visibility to ensure you're seen on the road.

    BRAKES

    Dual-piston Hydraulic Brakes

    Increased stopping power, providing excellent braking performance and durability.
