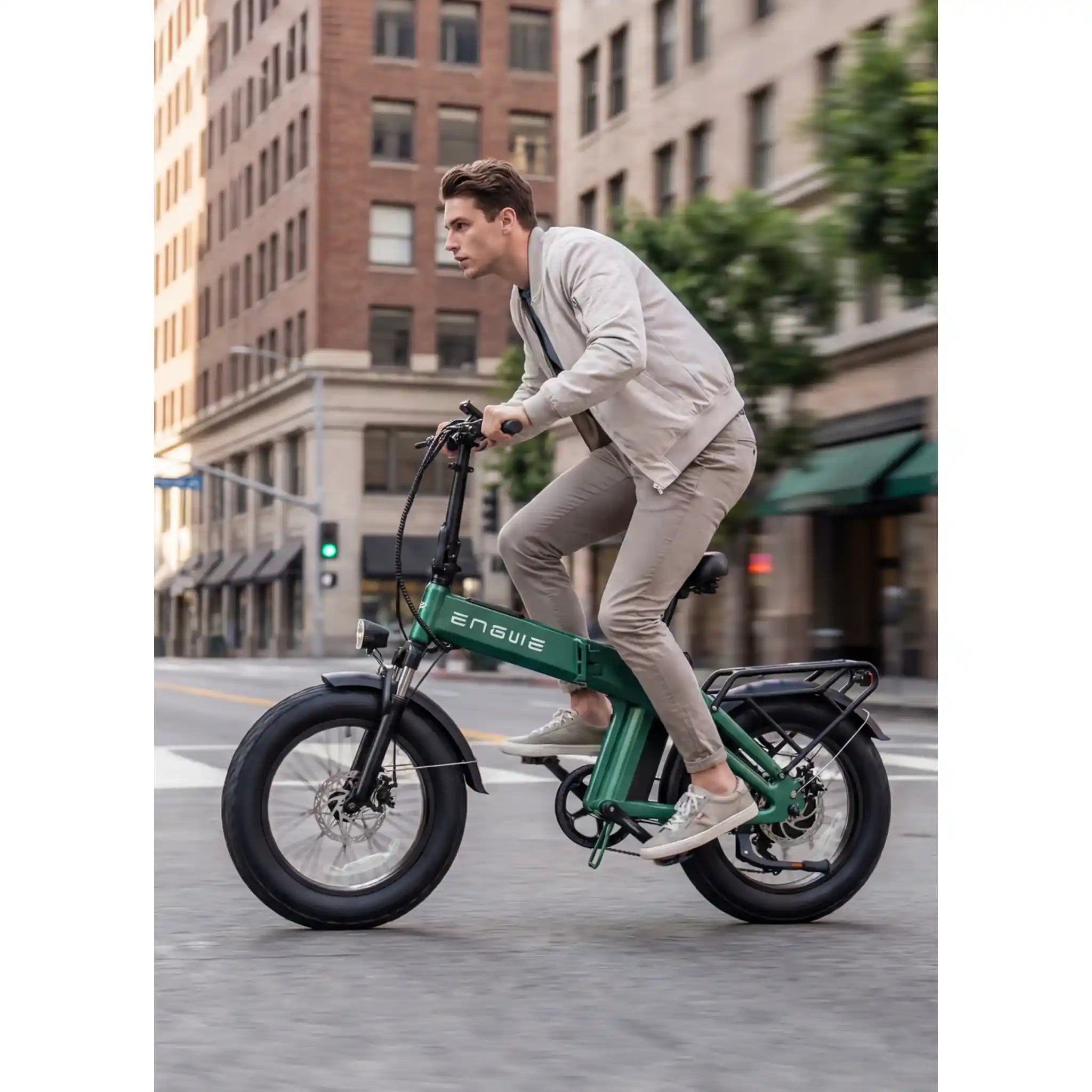

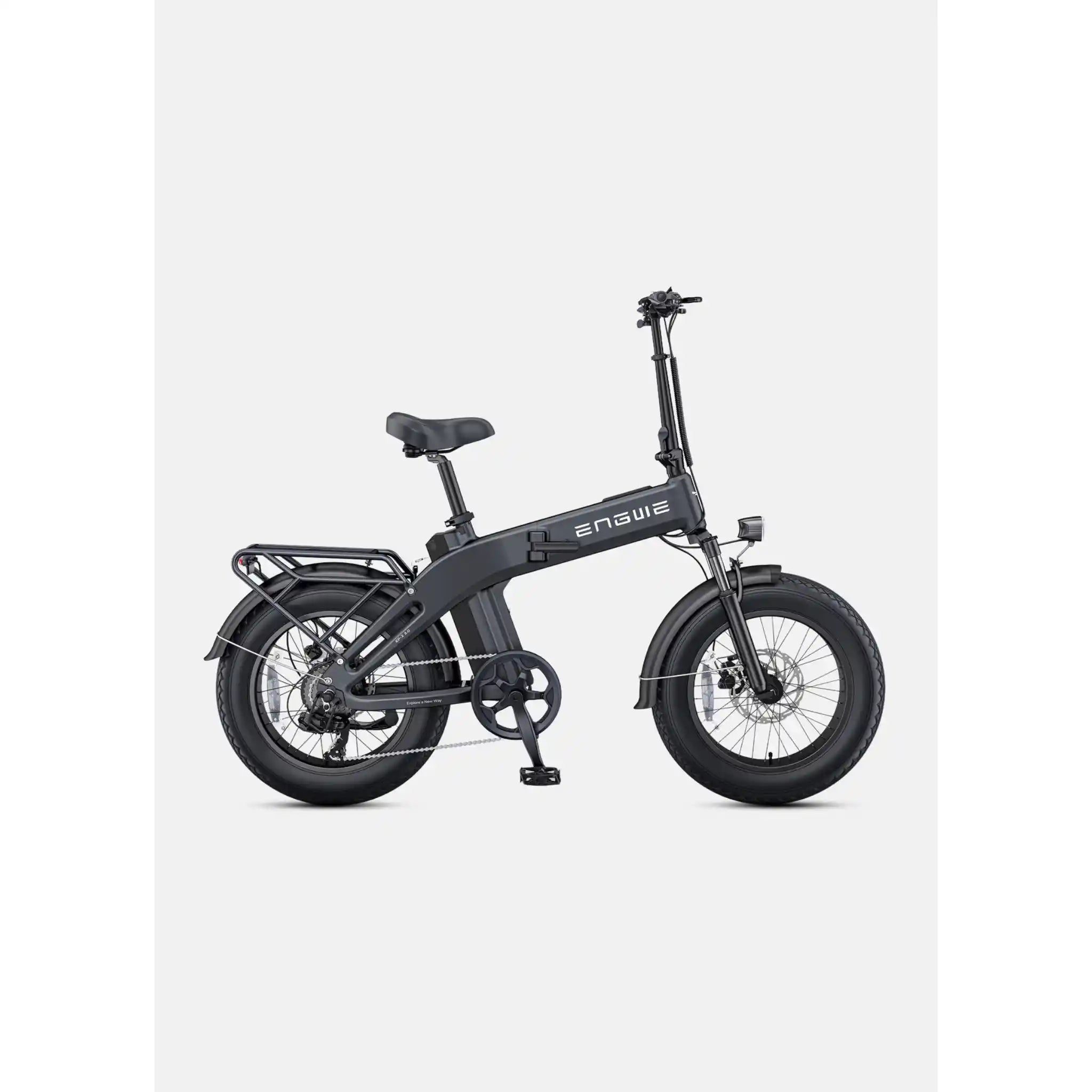

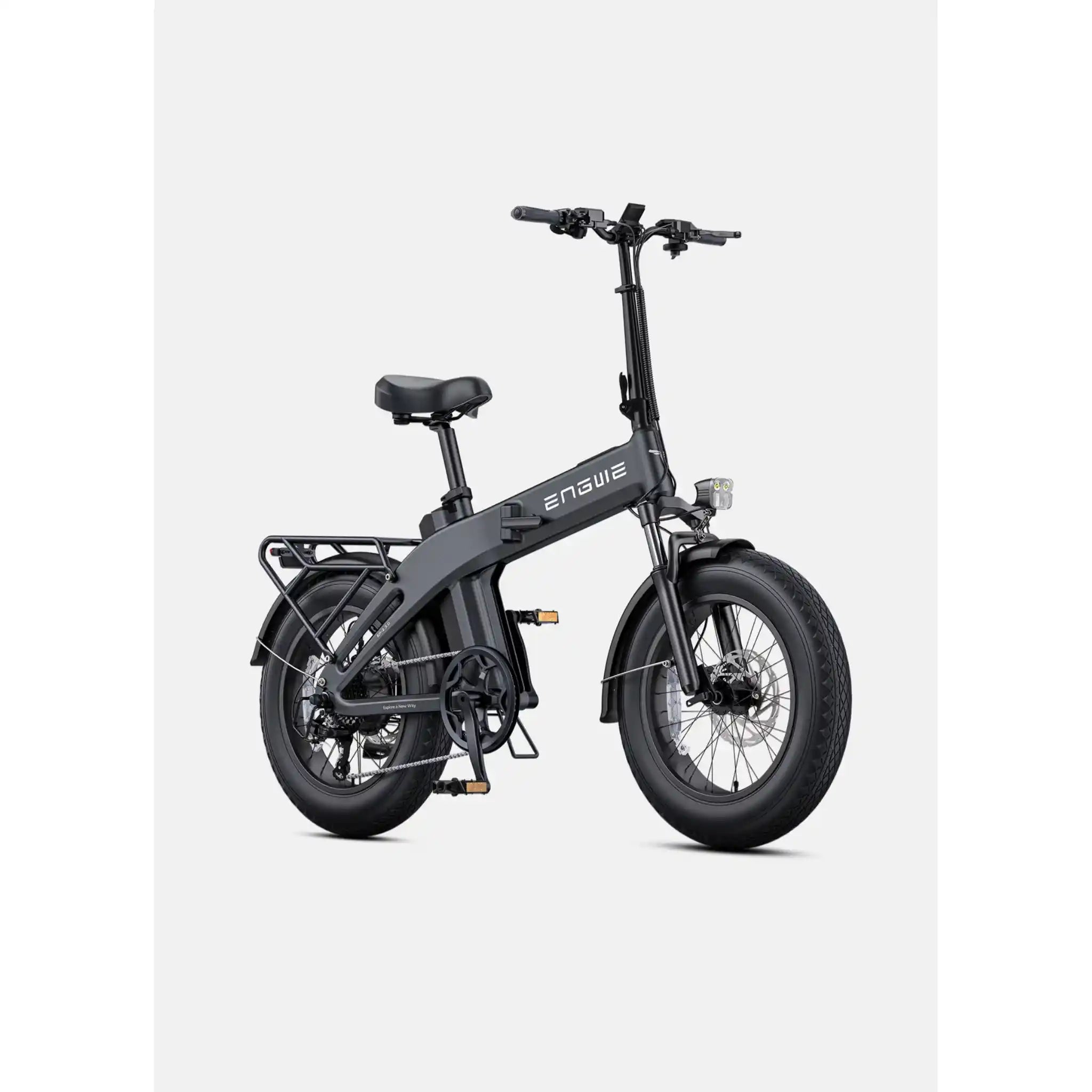

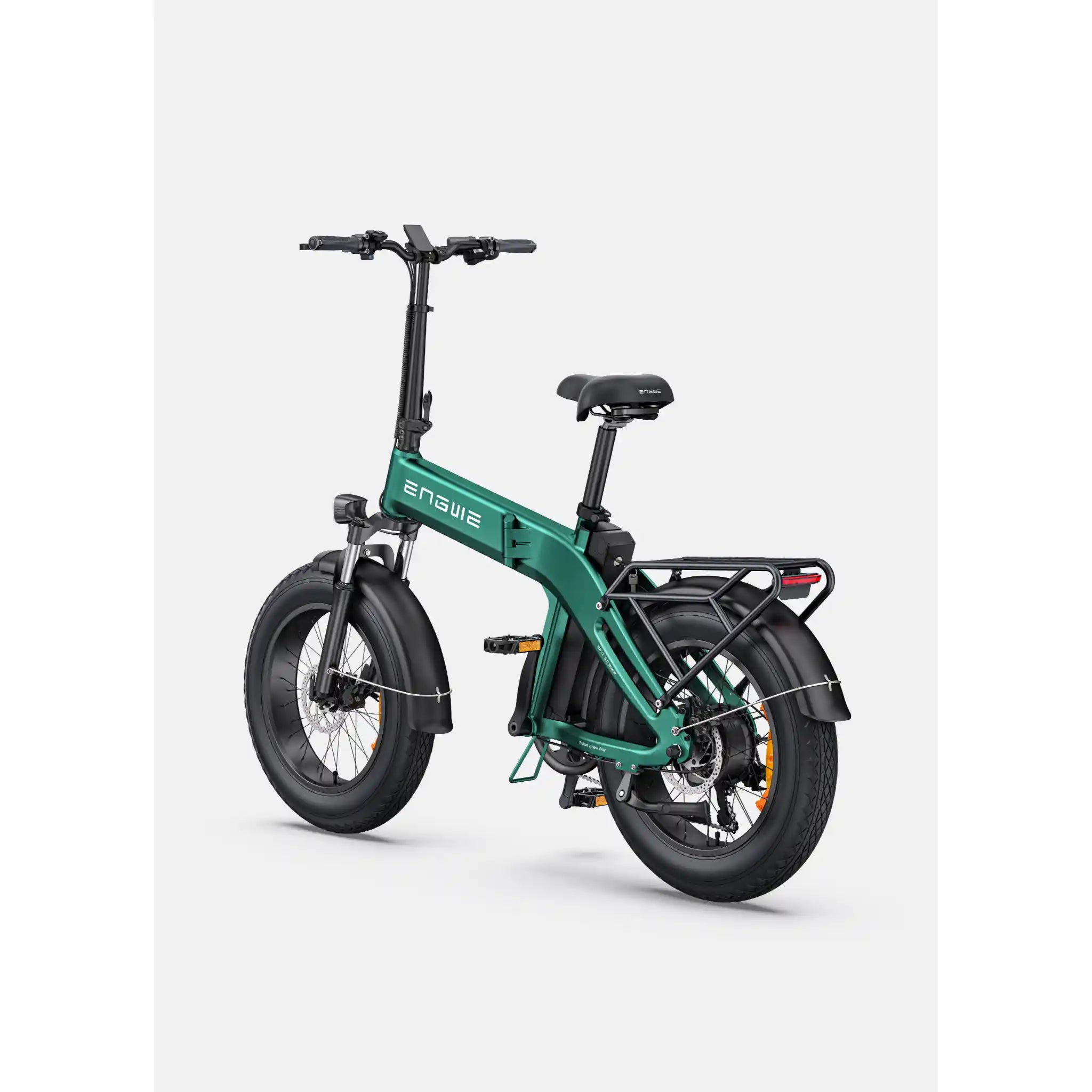

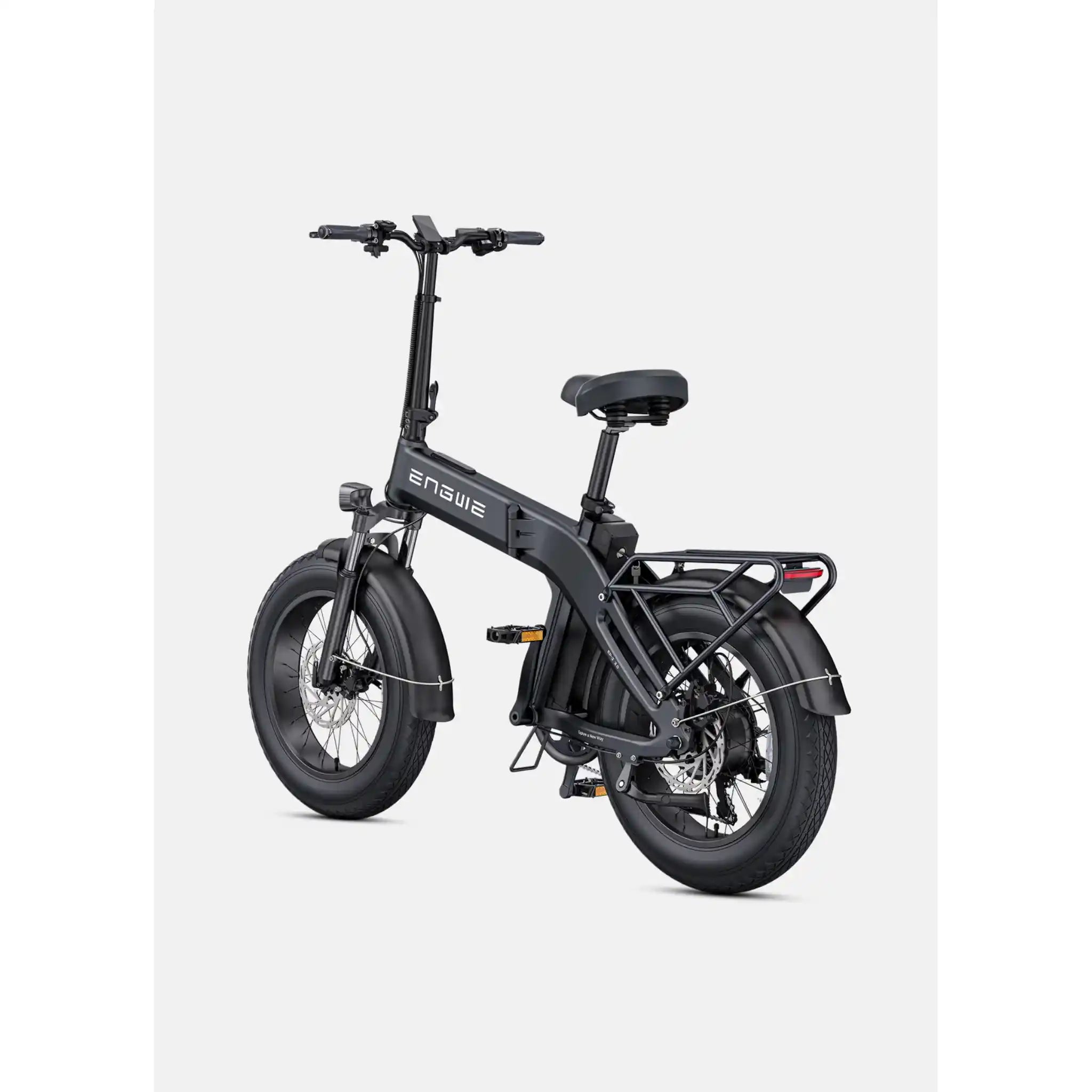

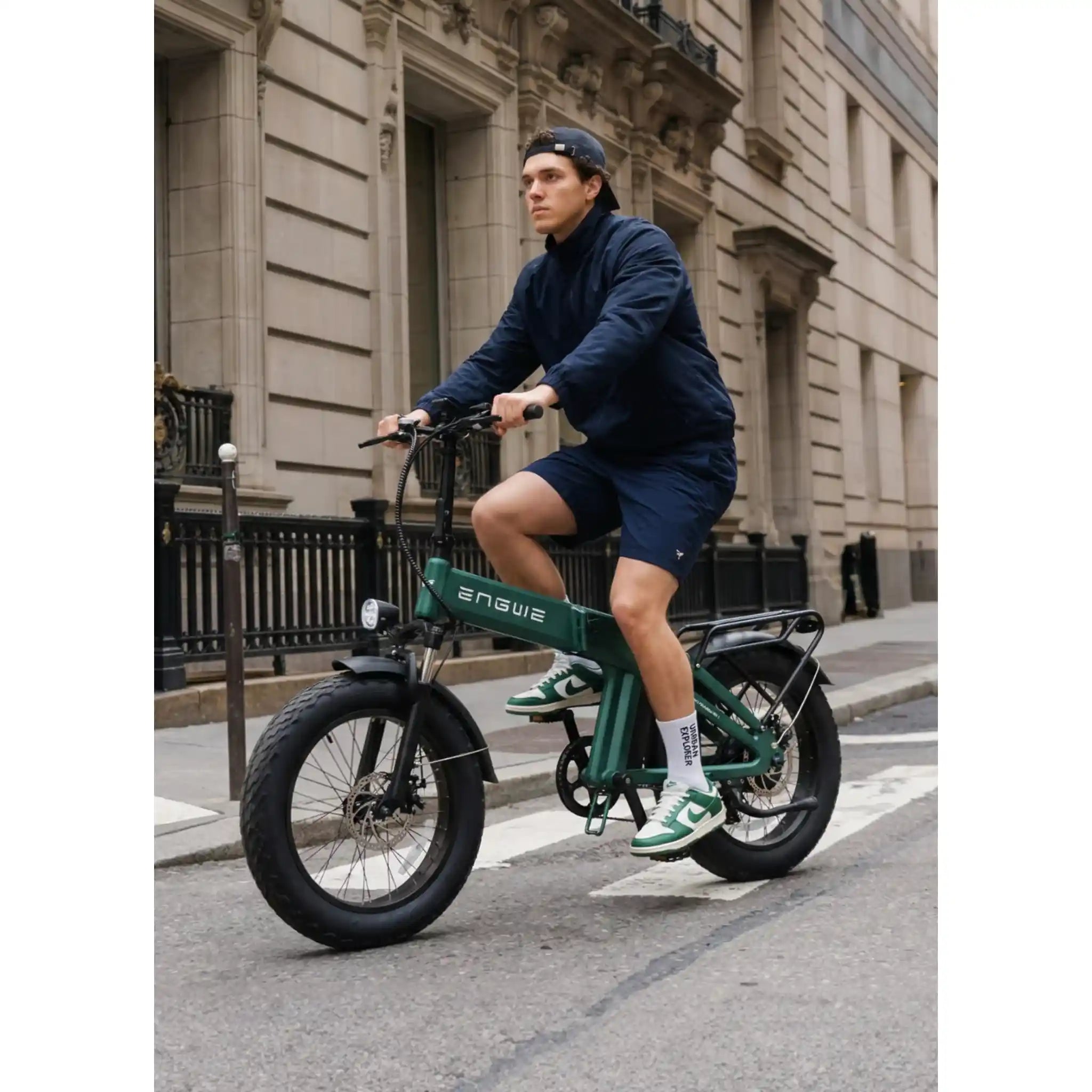

ENGWE - EP-2 3.0 Foldable Fat Tire Electric Bike

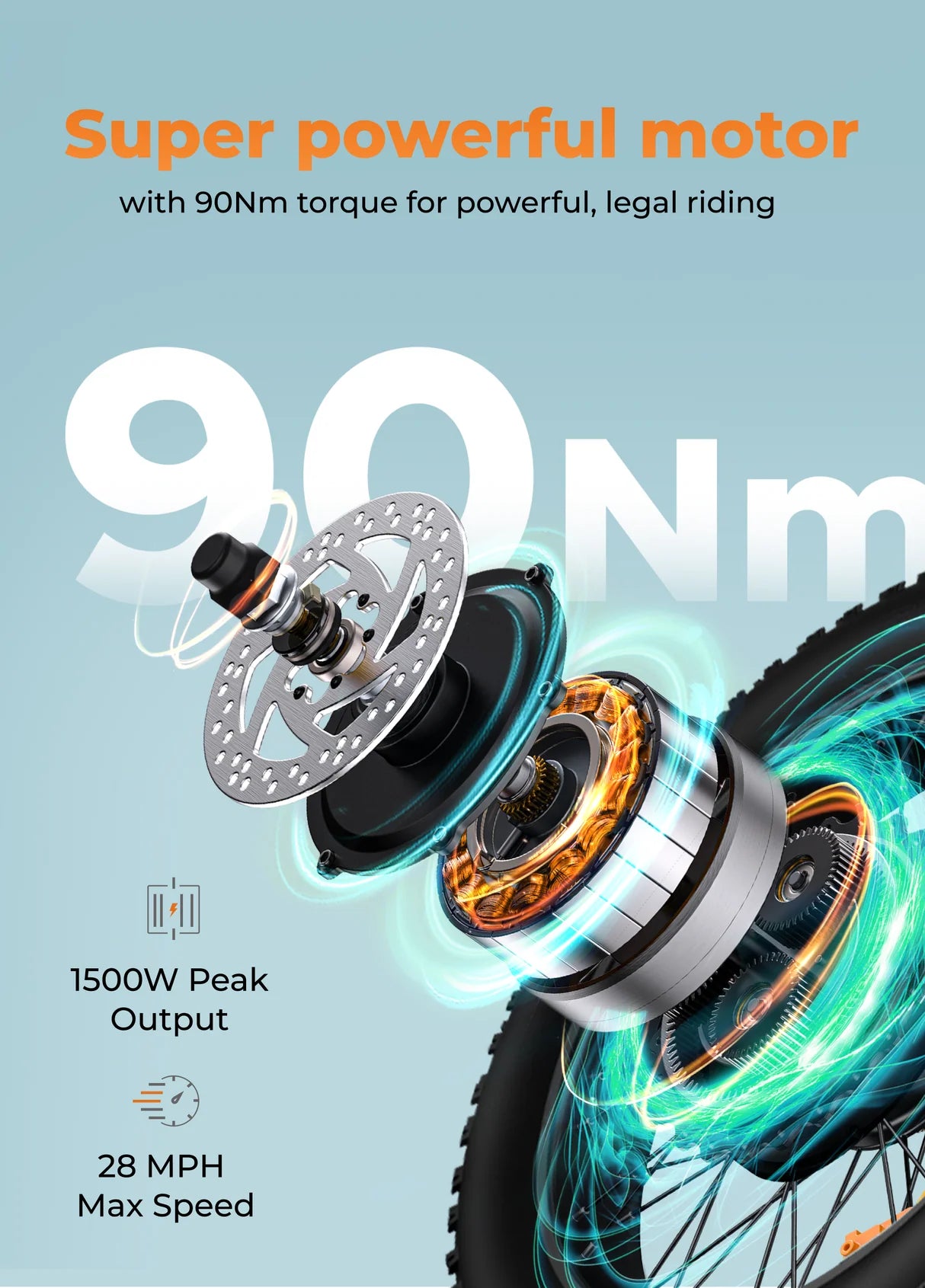

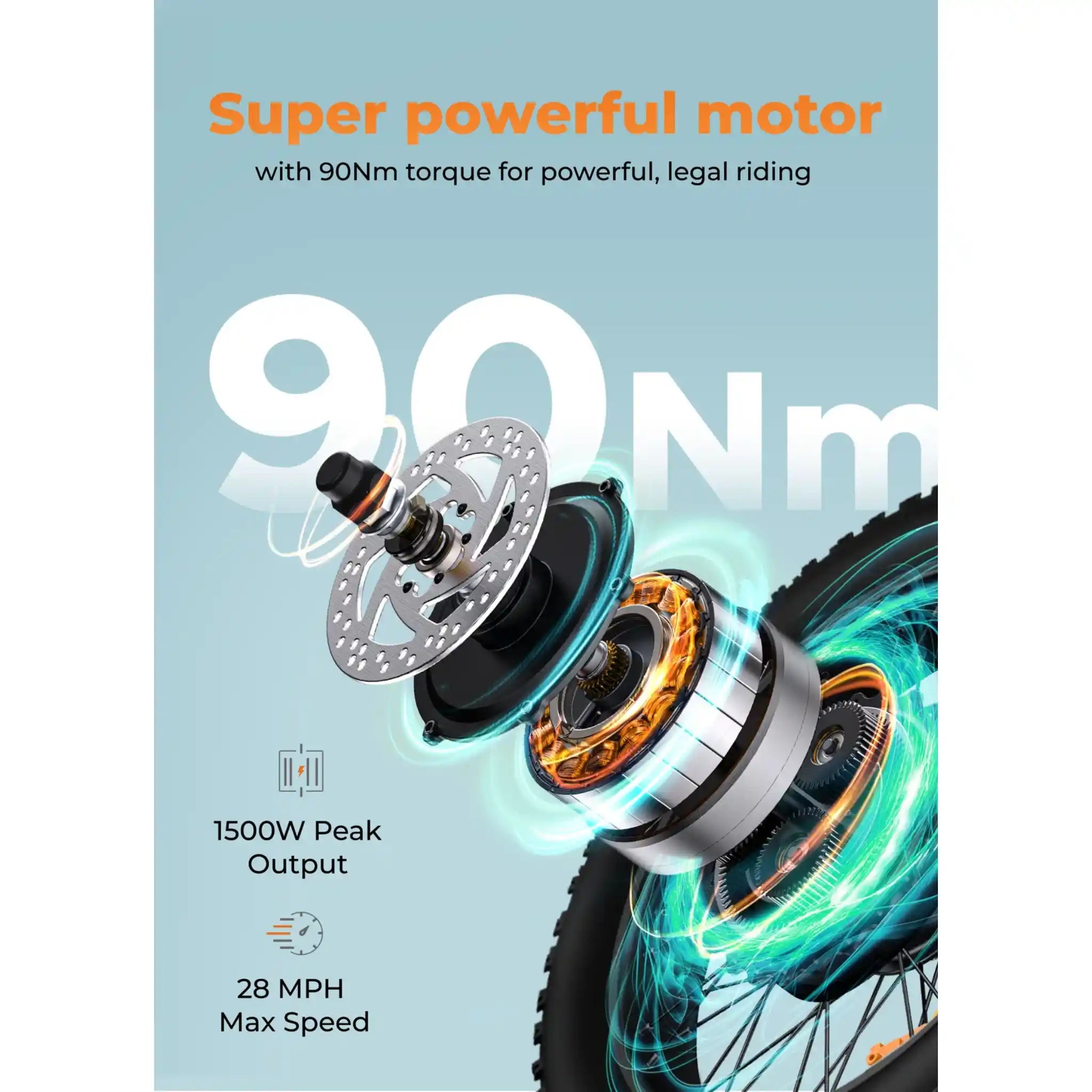

The ENGWE EP-2 3.0 takes the versatility of a compact folding e-bike and adds the power, technology and ride quality expected from a modern full-size electric commuter. Its 750W rear hub motor delivers up to 1,500W peak power and 90 Nm of torque, while a 48V 15Ah battery provides up to 65 miles of claimed range under PAS Level 1 conditions.

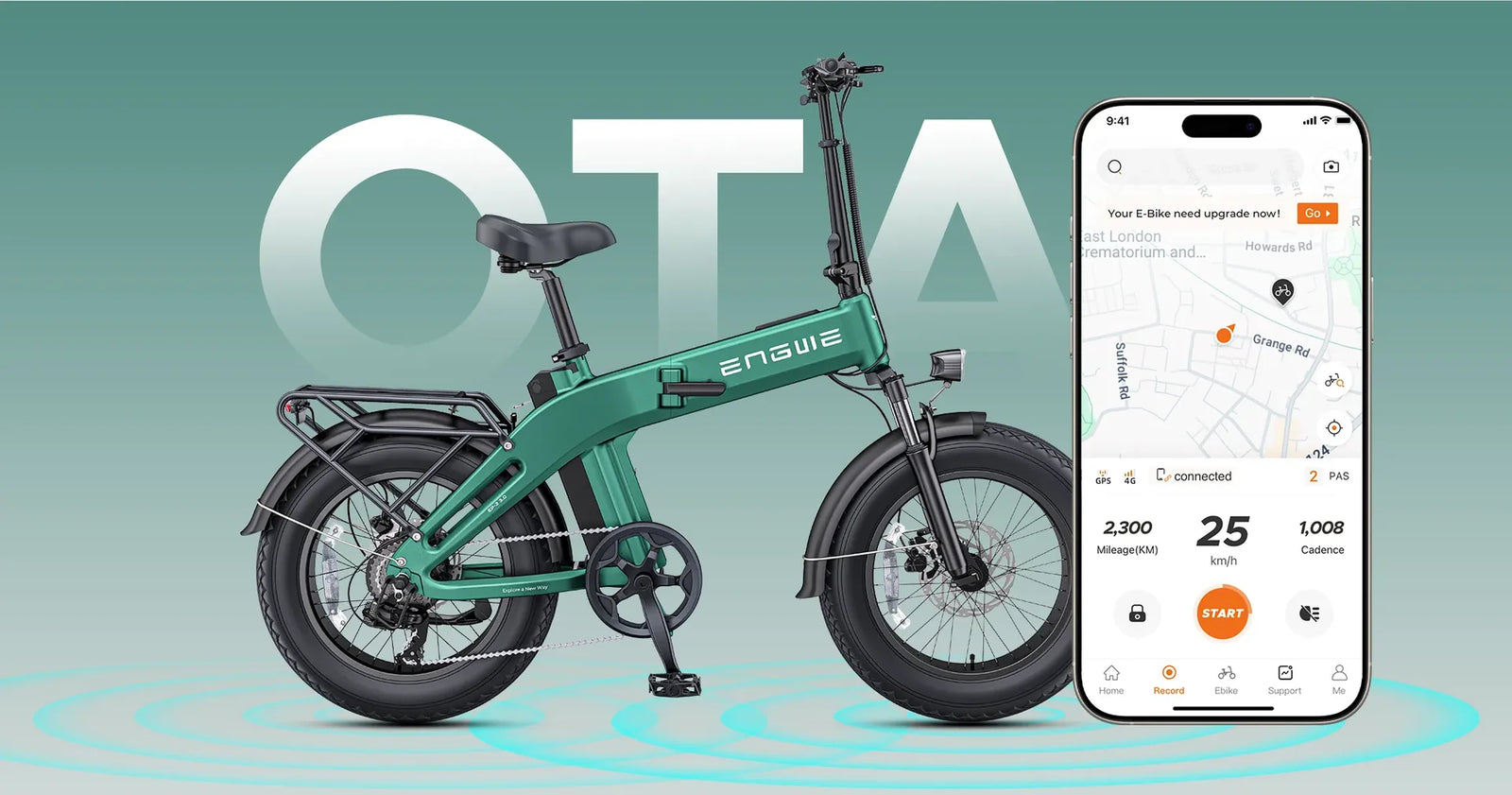

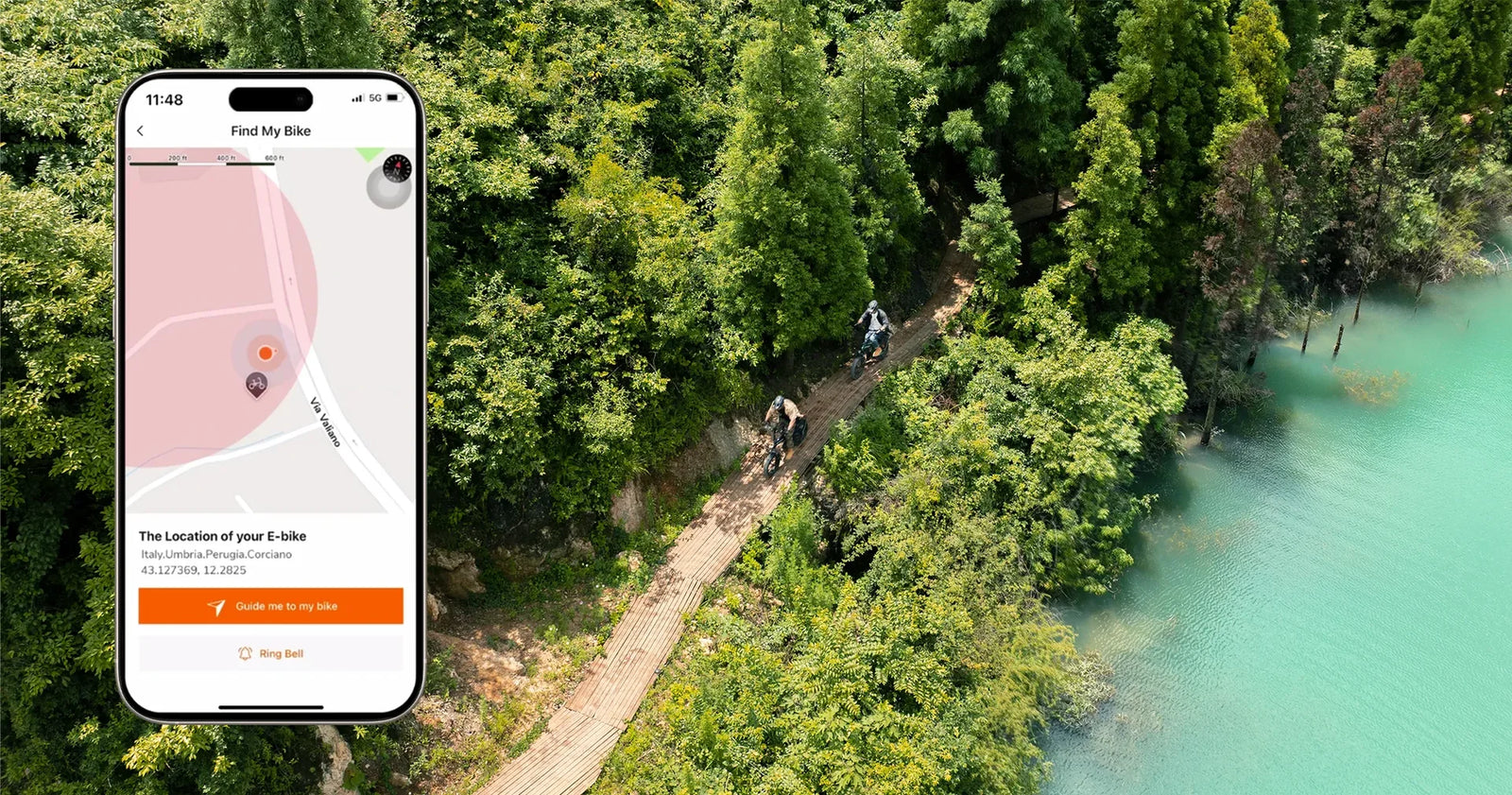

Designed for commuting, recreation and mixed-surface riding, the EP-2 3.0 combines 20" x 4.0" fat tires, hydraulic front suspension, Tektro hydraulic disc brakes and a selectable torque/cadence assist system. An integrated IoT system adds GPS tracking, motion alerts and app connectivity, while the folding magnesium-alloy frame makes the bike easier to store and transport.

HIGHLIGHTS

• MOTOR POWER: 750W Rated / 1,500W Peak
• TOP SPEED: Up to 28 MPH
• RANGE: Up to 65 Miles in PAS Level 1
• WEIGHT CAPACITY: 330 lbs

Battery Features

The EP-2 3.0 uses a frame-integrated 48V 15Ah lithium-ion battery, providing 720Wh of total capacity. ENGWE specifies 21700 battery cells and integrated BMS protection.

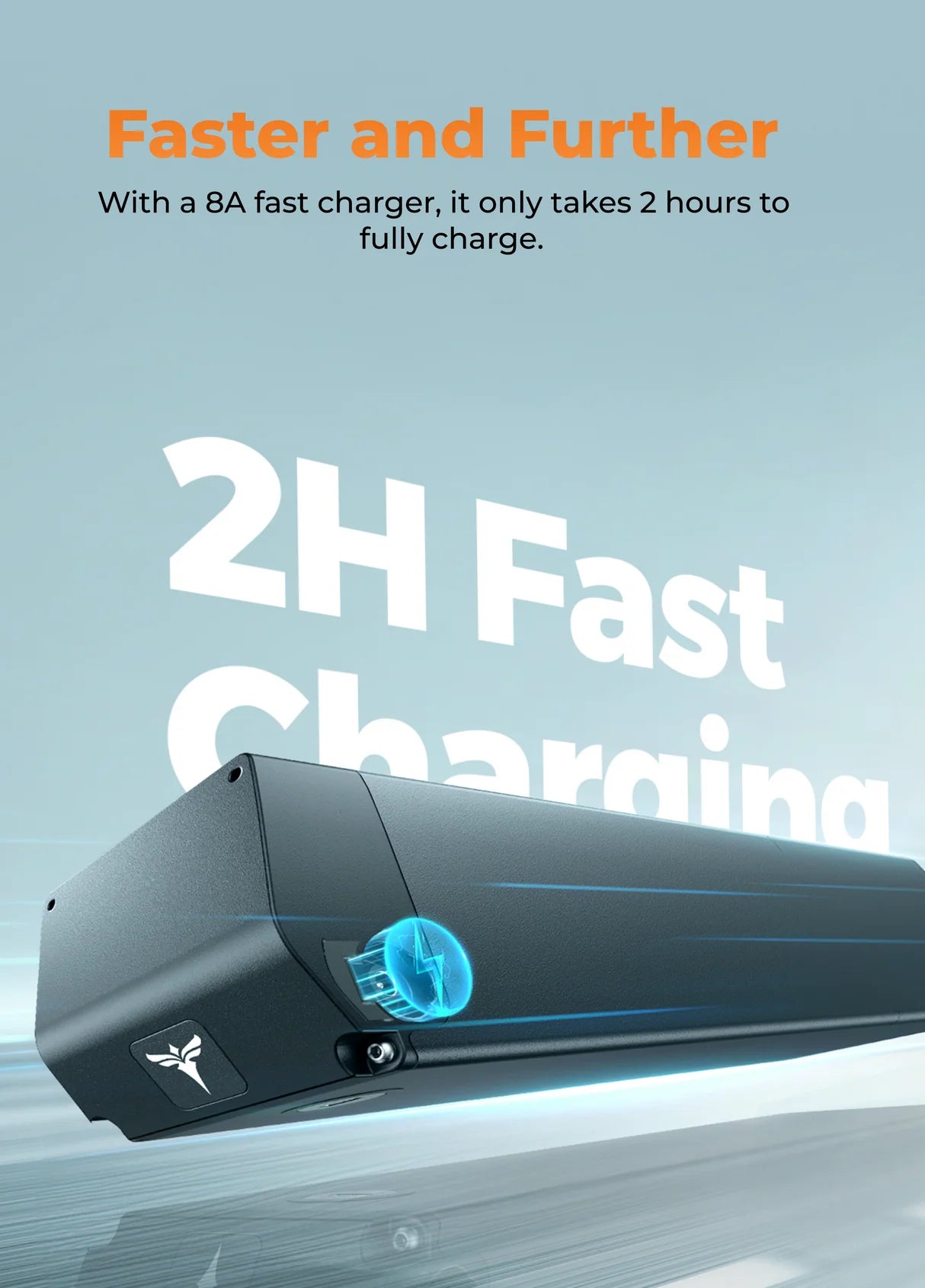

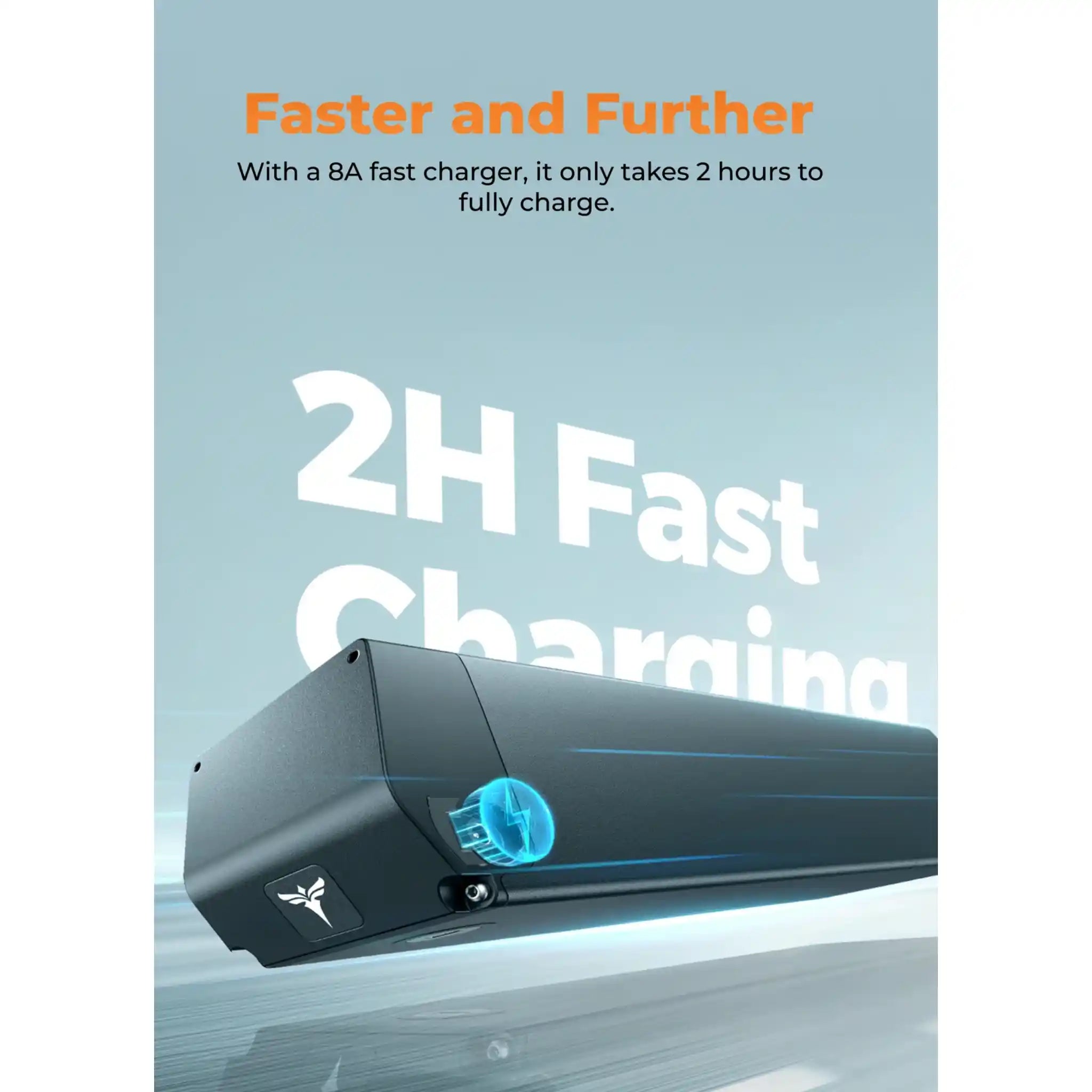

An included 54.6V 8A fast charger allows ENGWE to advertise approximately 2-hour fast charging, significantly reducing downtime between rides.

• Battery: 48V 15Ah
• Capacity: 720Wh
• Cells: 21700
• Battery Protection: BMS
• Maximum Claimed Range: Up to 65 miles at PAS Level 1
• Charger: 54.6V 8A
• Advertised Charging Time: Approximately 2 hours

Actual range may vary depending on rider weight, terrain, speed, assist level, weather and other riding conditions.

Cargo Features

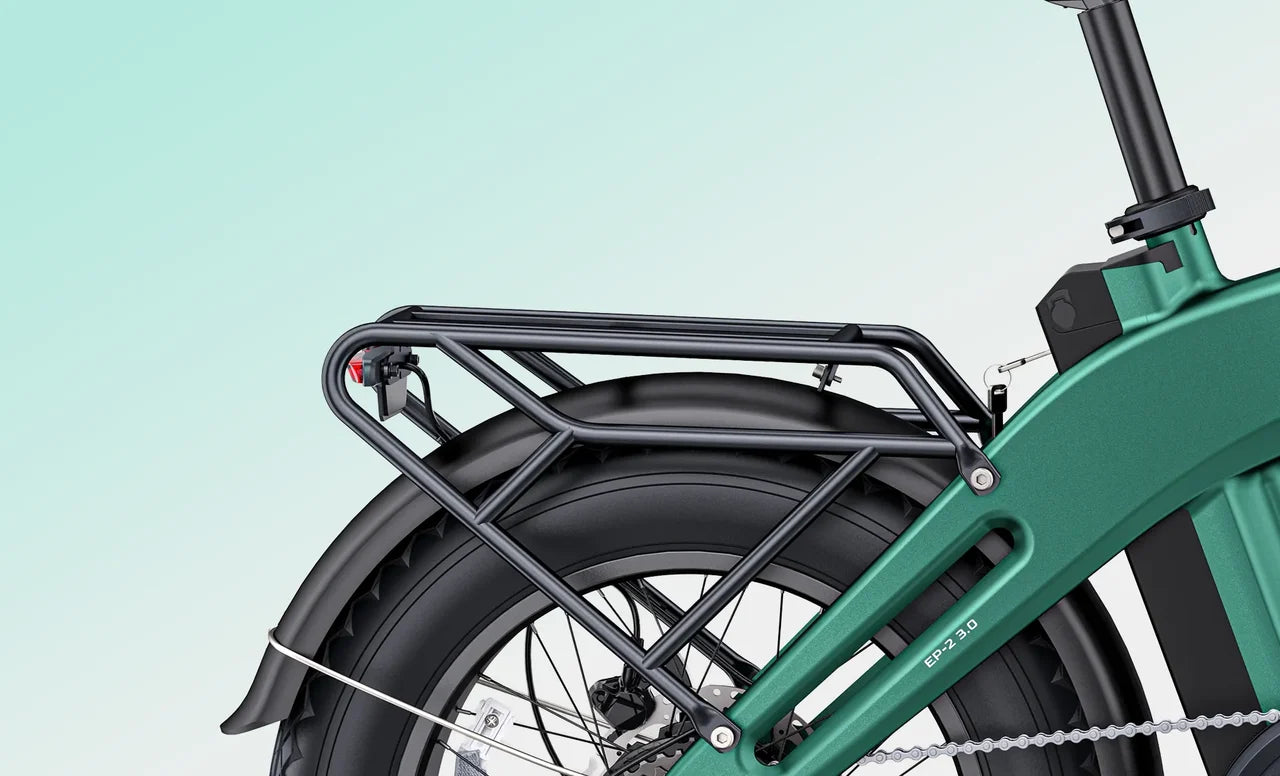

A rear cargo rack is included as standard equipment, giving the EP-2 3.0 additional versatility for commuting and everyday utility.

• Maximum Total Payload: 330 lbs
• Rear Rack: Included

ENGWE does not currently publish a separate maximum load rating for the rear rack.

Specs

• MODEL: ENGWE EP-2 3.0
• MOTOR: Rear Hub Motor
• RATED MOTOR POWER: 750W
• PEAK MOTOR POWER: 1,500W
• MAXIMUM TORQUE: 90 Nm
• BATTERY: 48V 15Ah / 720Wh Lithium-Ion
• BATTERY CELLS: 21700 Cells
• BATTERY PROTECTION: BMS
• CHARGER: 54.6V 8A
• MAXIMUM CLAIMED RANGE: Up to 65 Miles at PAS Level 1
• MAXIMUM SPEED: Up to 28 MPH
• PEDAL ASSIST: 5 Levels
• ASSIST SYSTEM: Selectable Torque Sensor / Cadence Sensor

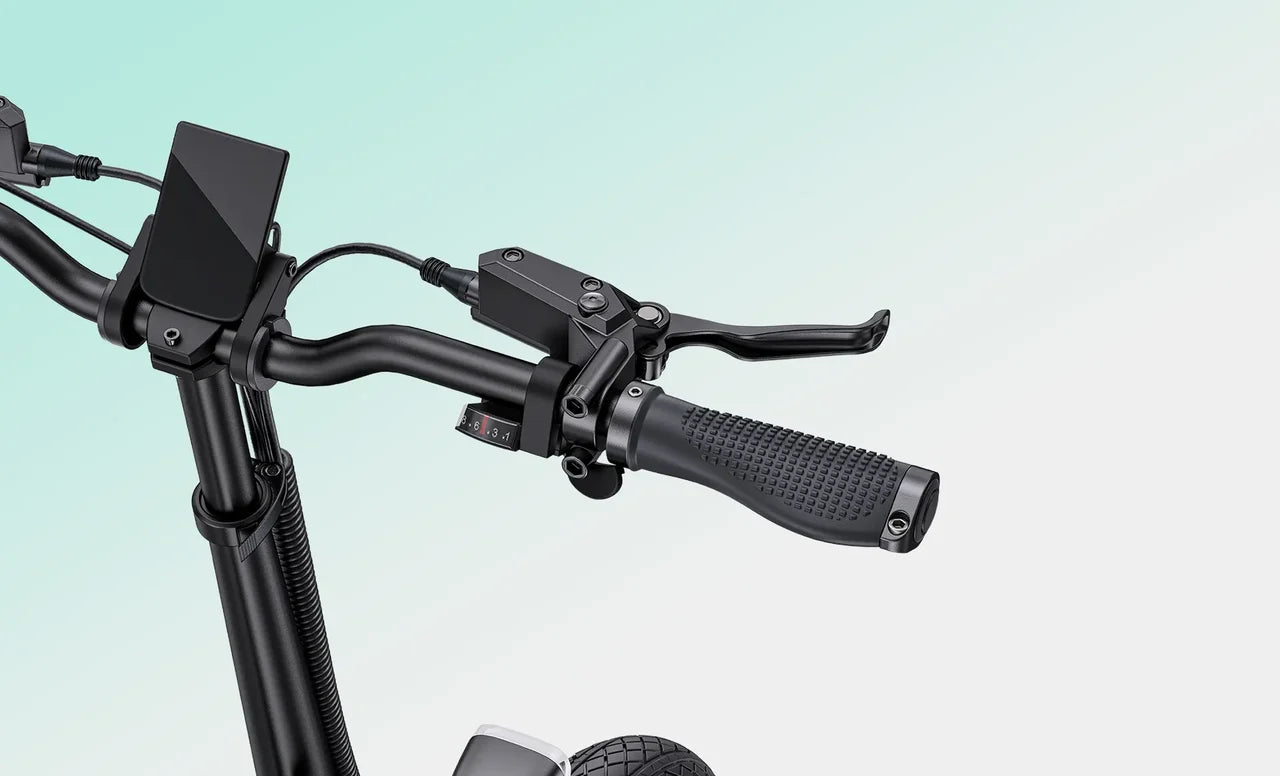

• DISPLAY: 3.5" ENGWE Color LCD Display
• DISPLAY CONNECTIVITY: Bluetooth
• IOT SYSTEM: GPS, 4G and Bluetooth
• FRAME: Foldable Step-Through Magnesium Alloy Frame with Integrated Battery
• FRONT FORK: Hydraulic Adjustable Lockout Fork
• FRONT SUSPENSION: 50 mm Travel

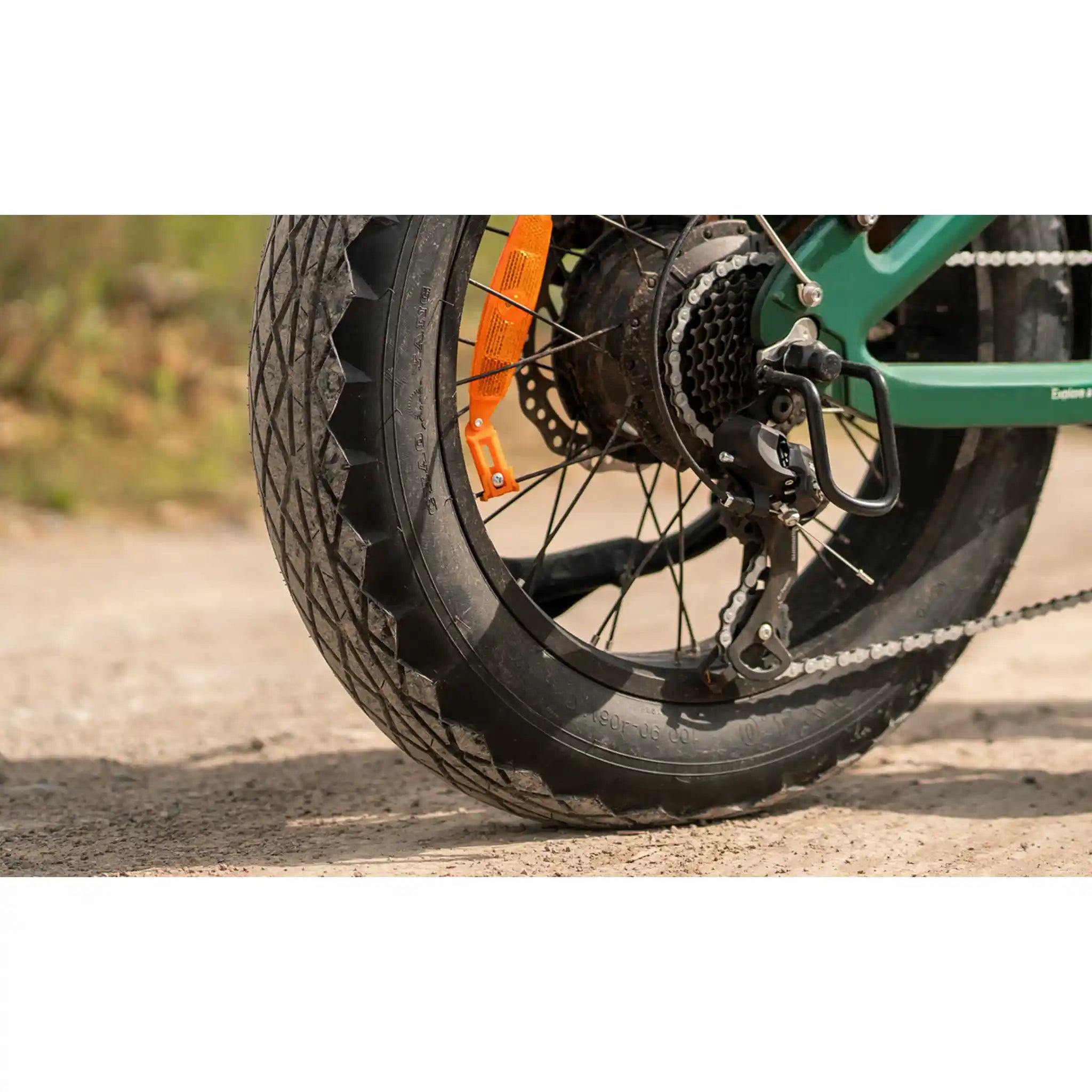

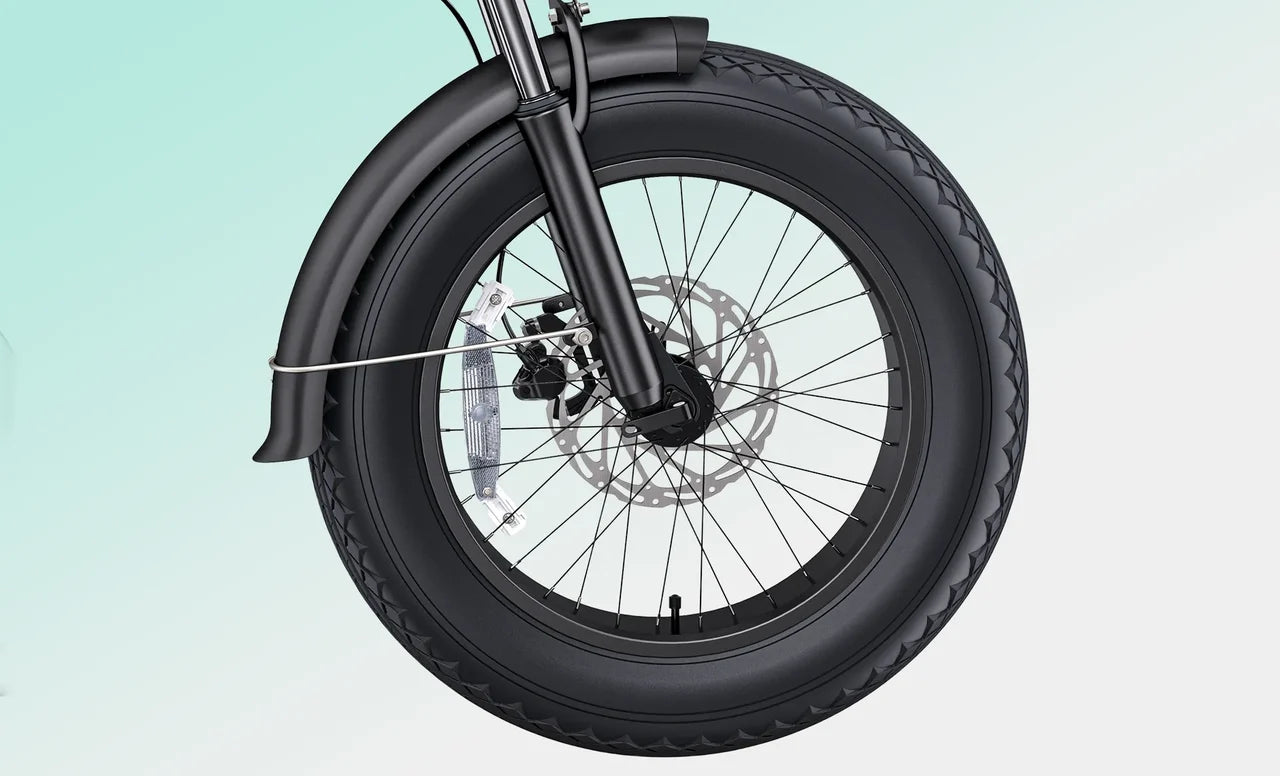

• TIRES: 20" x 4.0" Urban Hybrid Fat Tires
• PUNCTURE PROTECTION: 3 mm Anti-Puncture Layer
• WHEELS: 20" Double-Wall Aluminum, 36-Hole, 12-Gauge Spokes

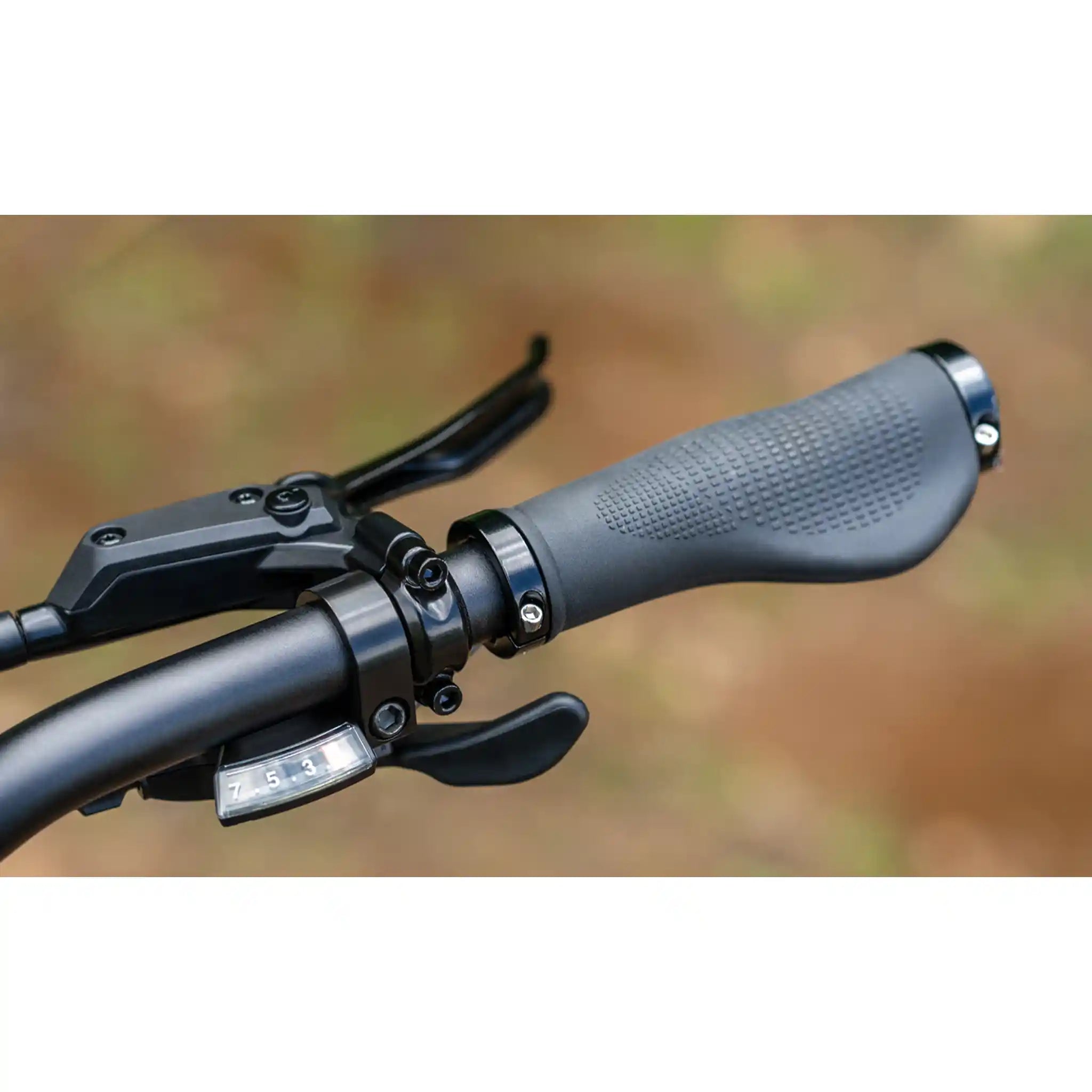

• BRAKES: Tektro Dual-Piston Hydraulic Disc Brakes
• BRAKE ROTORS: 180 mm Front and Rear

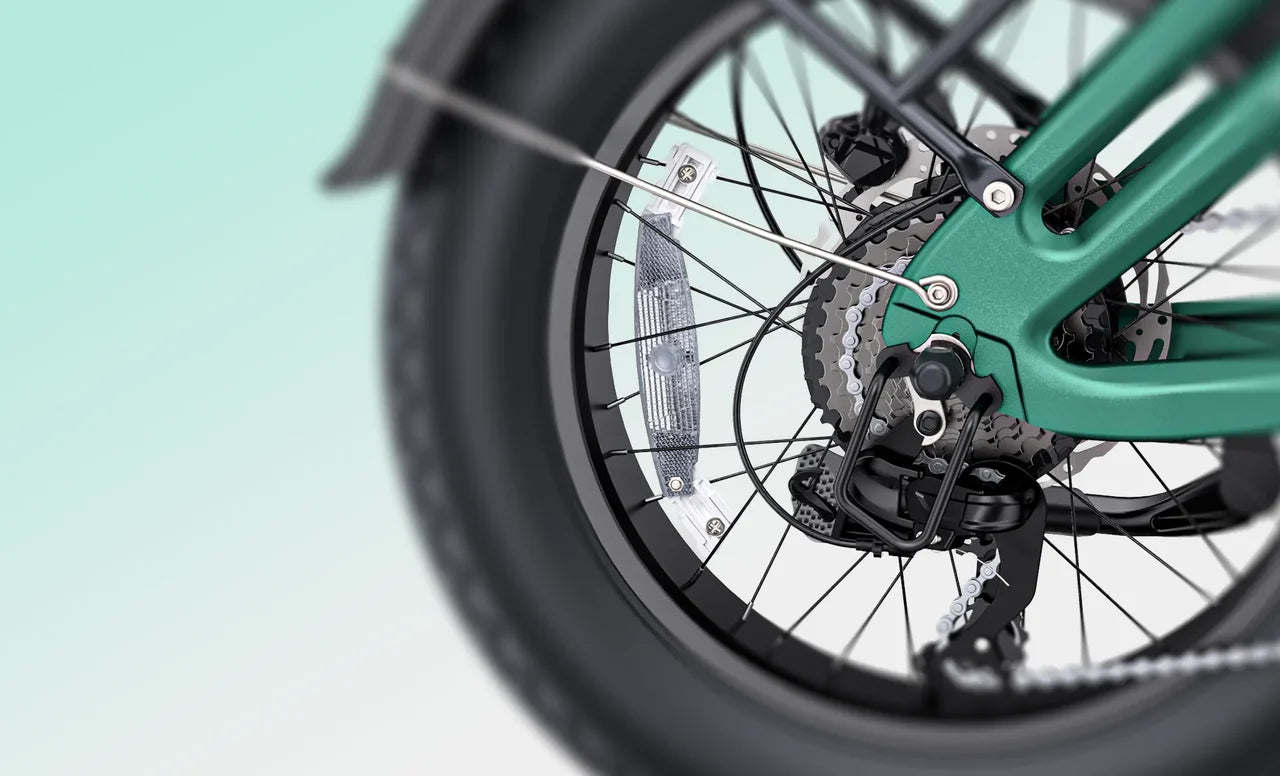

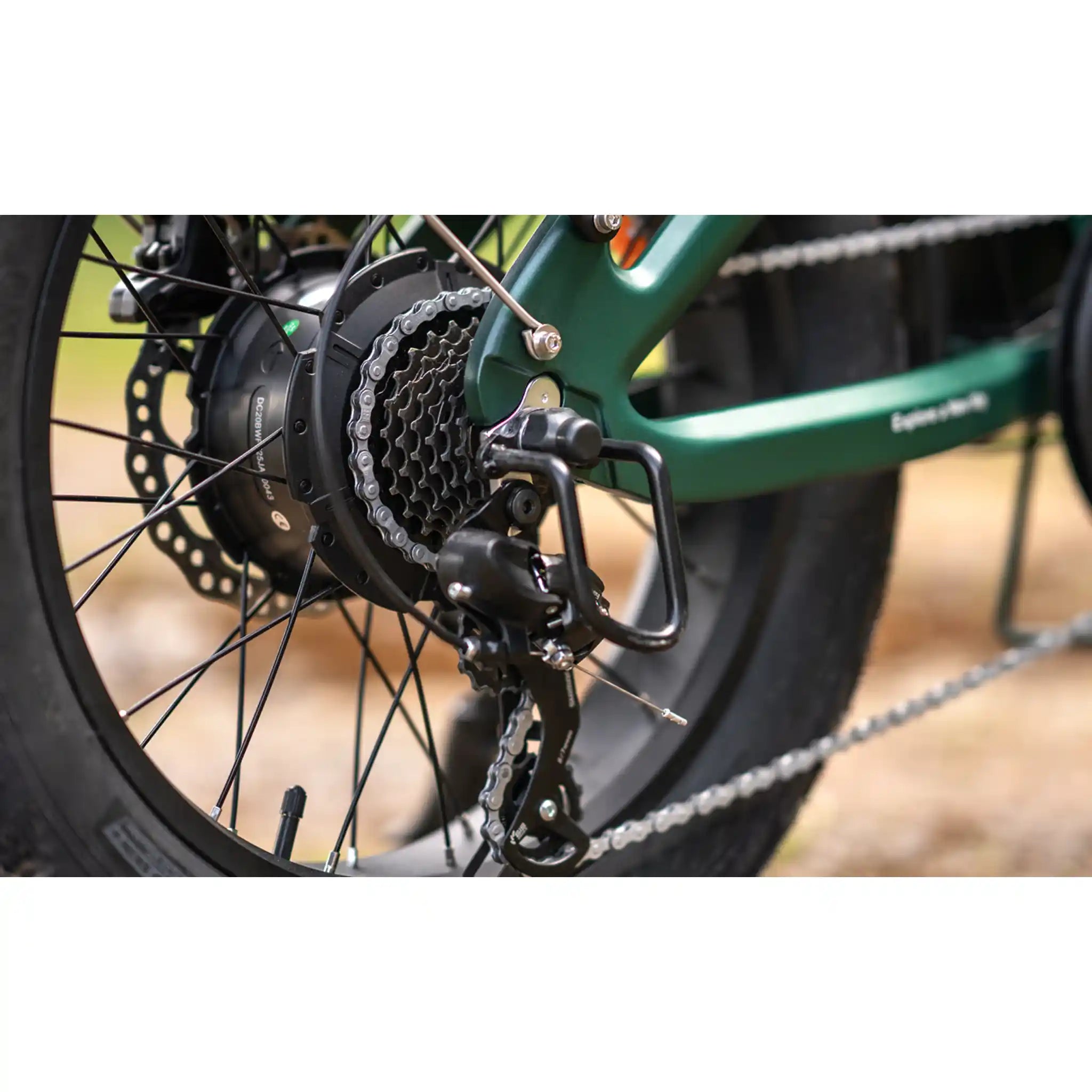

• REAR DERAILLEUR: Shimano Tourney RD-TY300, 7-Speed
• SHIFTER: Shimano SL-M315-7R
• CASSETTE: 7-Speed, 14T–28T

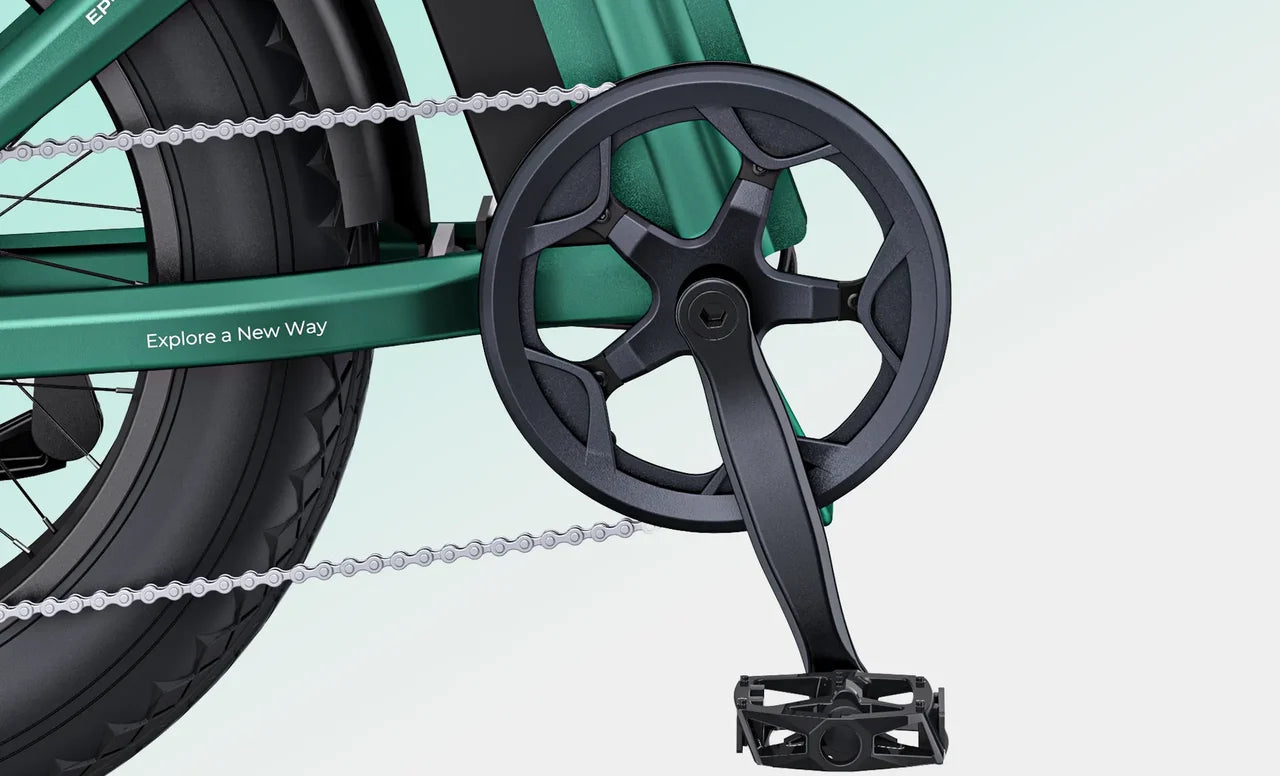

• CHAINRING: 48T
• CRANK: 170 mm
• CHAIN: Anti-Rust Bicycle Chain, 1/2" x 3/32", 124 Links
• PEDALS: Boron Steel, Non-Foldable

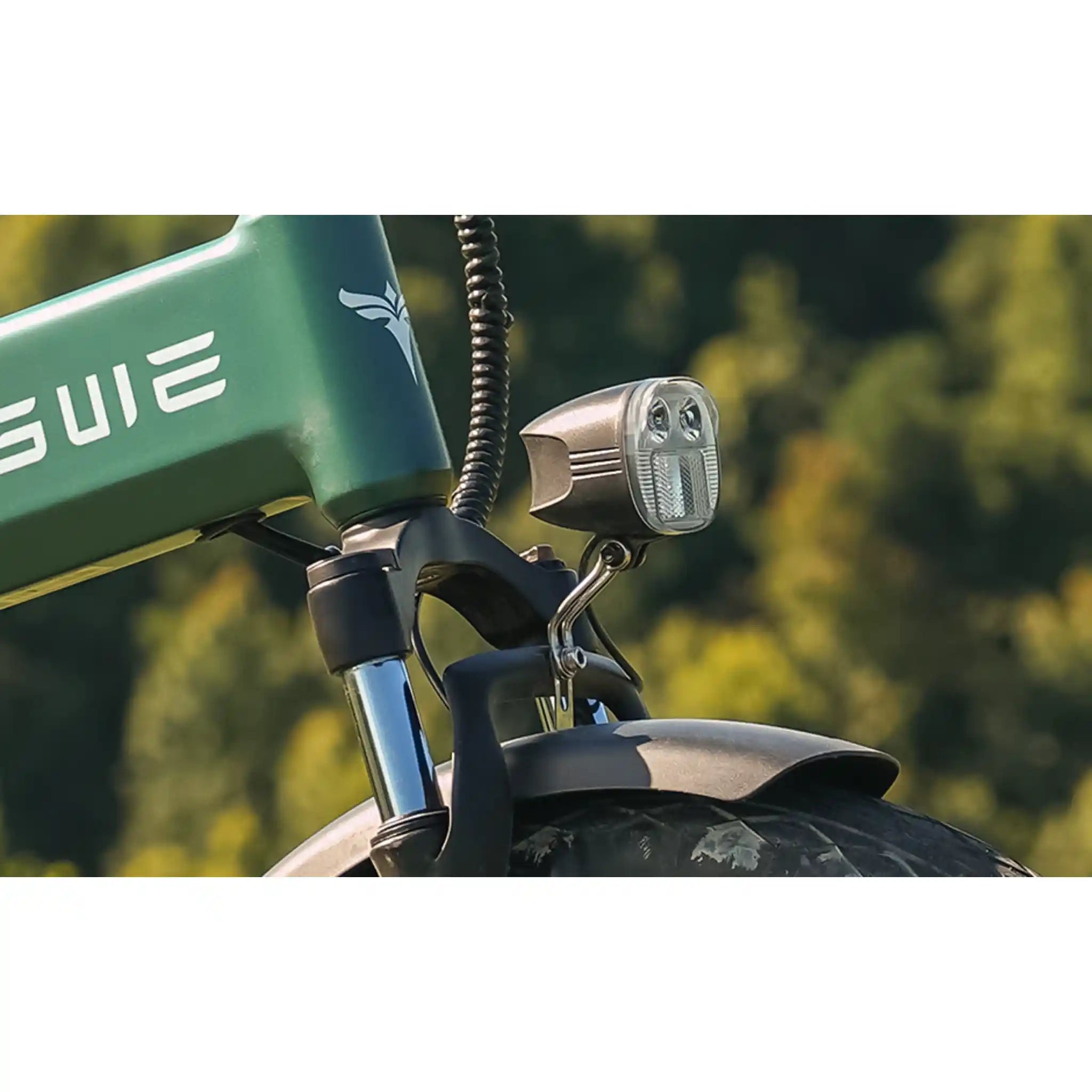

• FRONT LIGHT: 30 Lux with Integrated Electronic Horn
• REAR LIGHT: Automatic Brightening During Braking or Movement

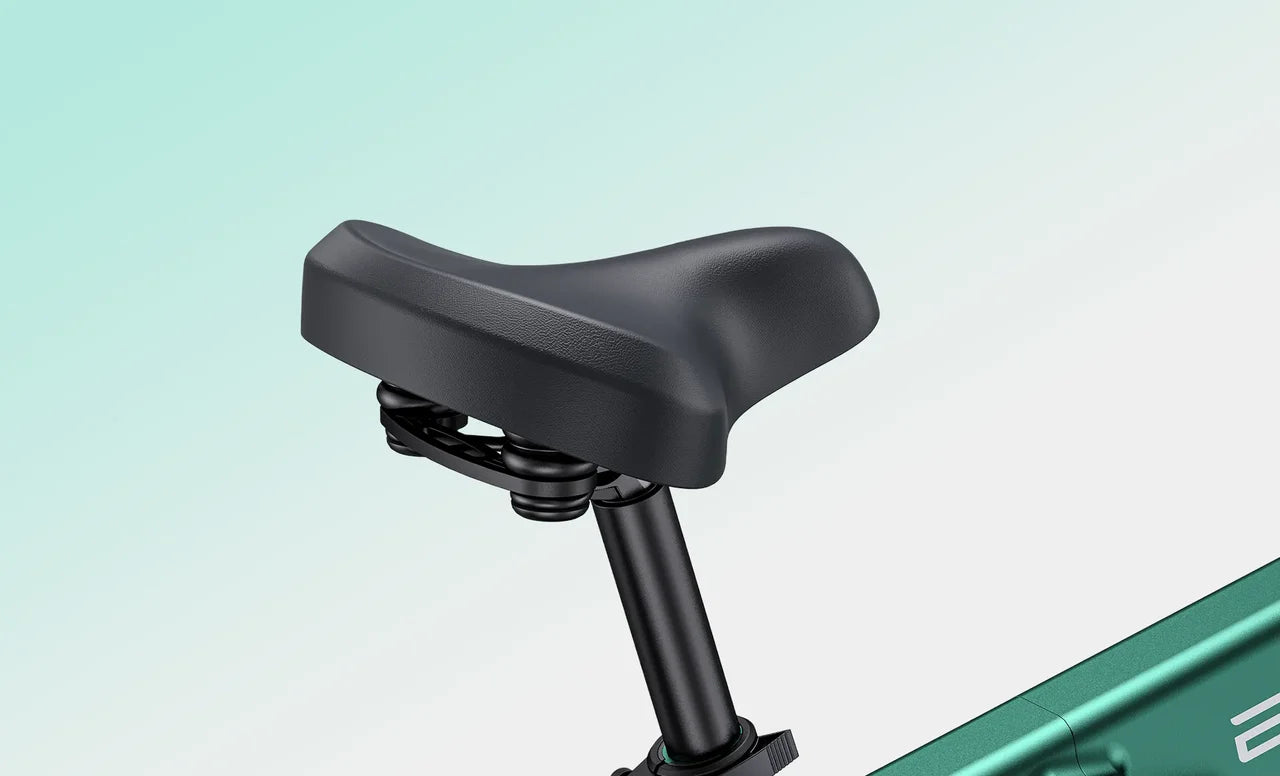

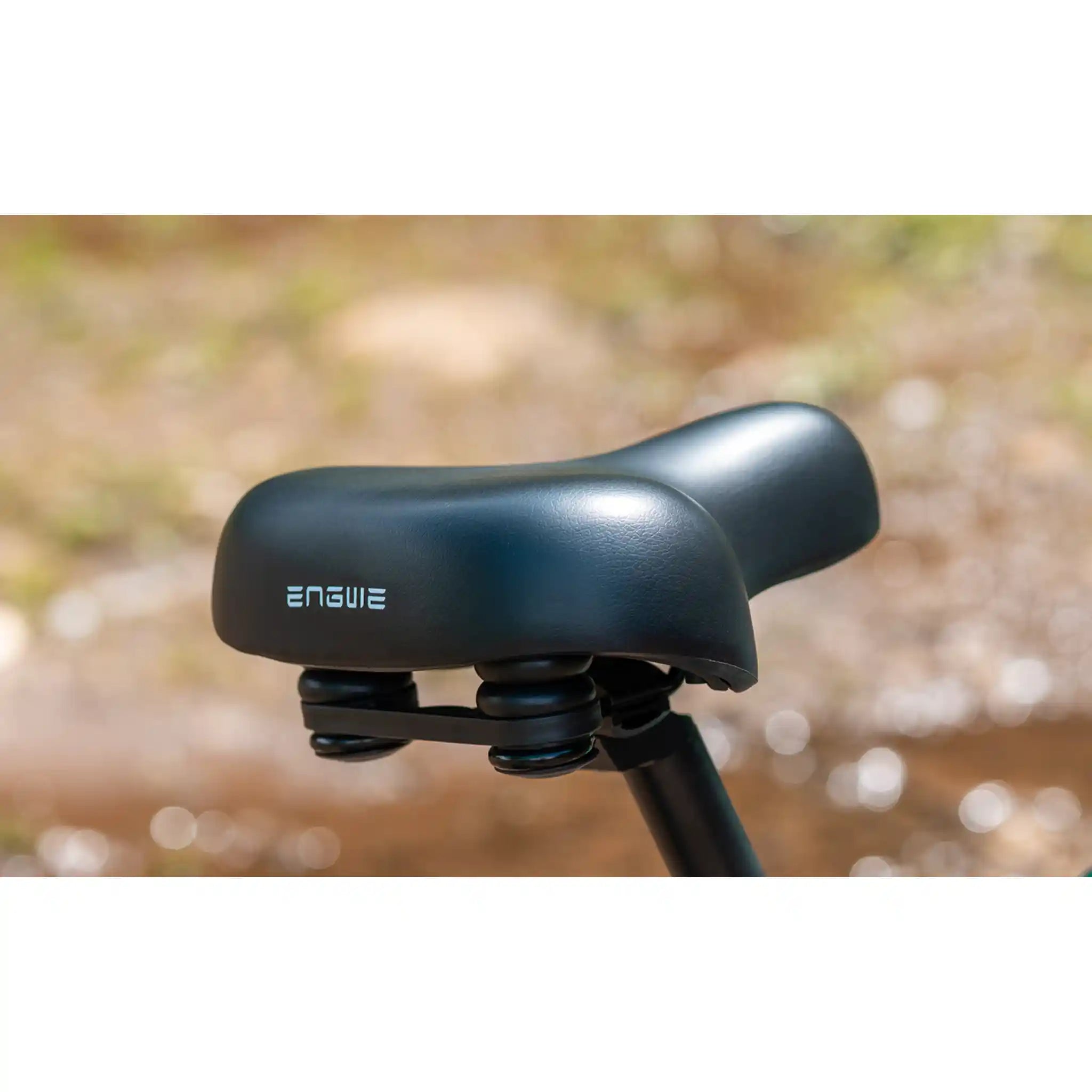

• SADDLE: ENGWE Soft Saddle
• SEAT POST: 10-Level Adjustable
• HANDLEBAR WIDTH: 680 mm
• STEM: Foldable
• SEAT CLAMP: Quick Release
• BIKE WEIGHT: 75.4 lbs / 34.2 kg
• MAXIMUM LOAD: 330 lbs / 150 kg
• RIDER HEIGHT: 5'5"–6'2" / 165–190 cm
• WATER RESISTANCE: IPX4
• FOLDABLE: Yes
• CERTIFICATION: UL 2849, certified by TÜV Rheinland

Riding Modes & Assist

The EP-2 3.0 offers five levels of pedal assist and allows the rider to select between torque-based and cadence-based assistance through the bike's system.

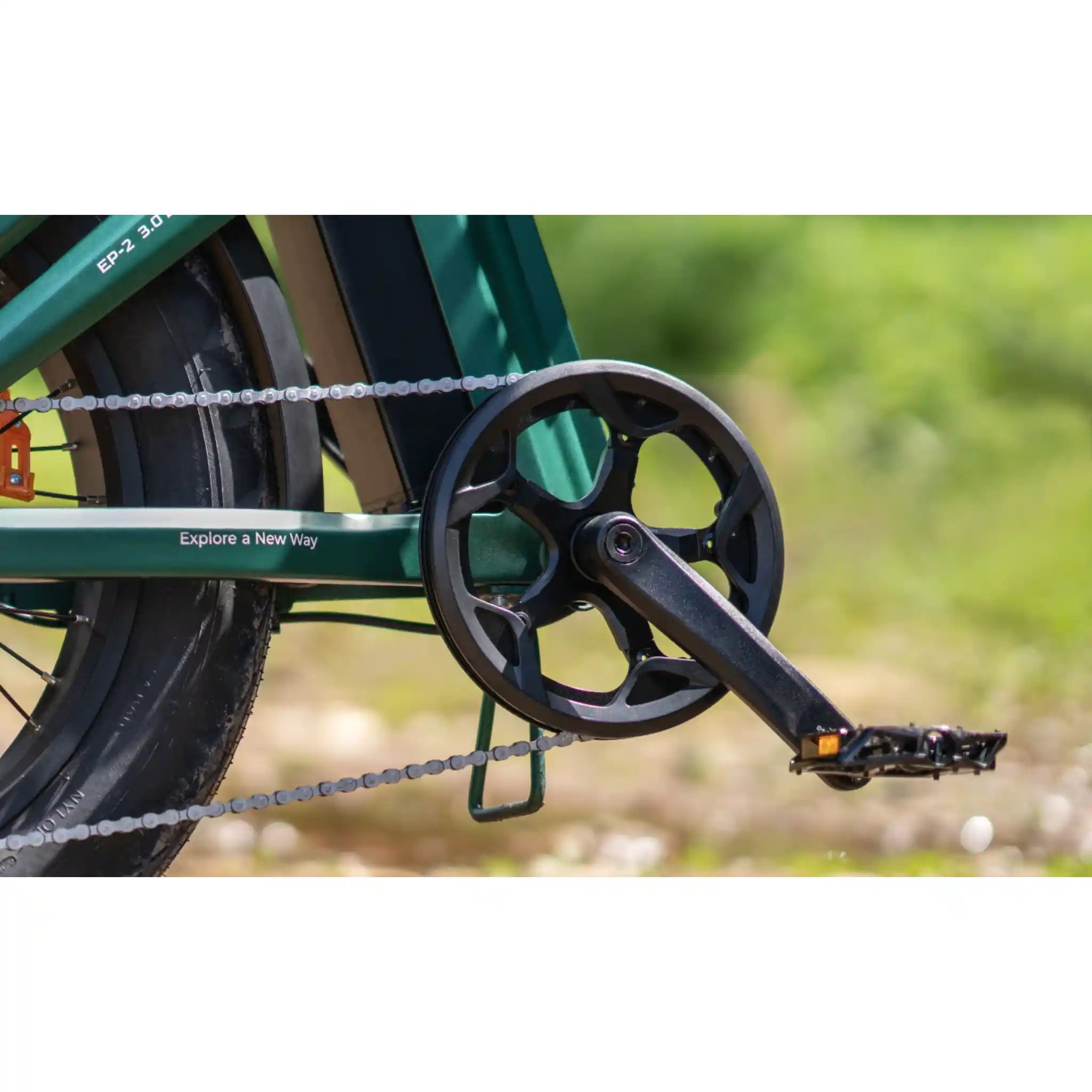

Torque sensing responds to how much force the rider applies to the pedals, providing a more natural and proportional power delivery. Cadence sensing provides assistance based primarily on whether and how quickly the pedals are turning, giving riders the flexibility to select the response that best suits their riding style.

• 5 Pedal Assist Levels
• Selectable Torque-Sensor Assist
• Selectable Cadence-Sensor Assist

Geometry

Unfolded Dimensions

• A- Wheelbase: 43.3" / 110 cm
• B- Total Length: 65.4" / 166 cm
• C- Reach: 16.0" / 40.6 cm
• D- Standover Height: 26.8" / 68 cm
• E- Minimum Saddle Height: 34.6" / 88 cm
• F- Maximum Saddle Height: 40.9" / 104 cm
• G- Minimum Handlebar Height: 49.6" / 126 cm
• H- Maximum Handlebar Height: 53.1" / 135 cm

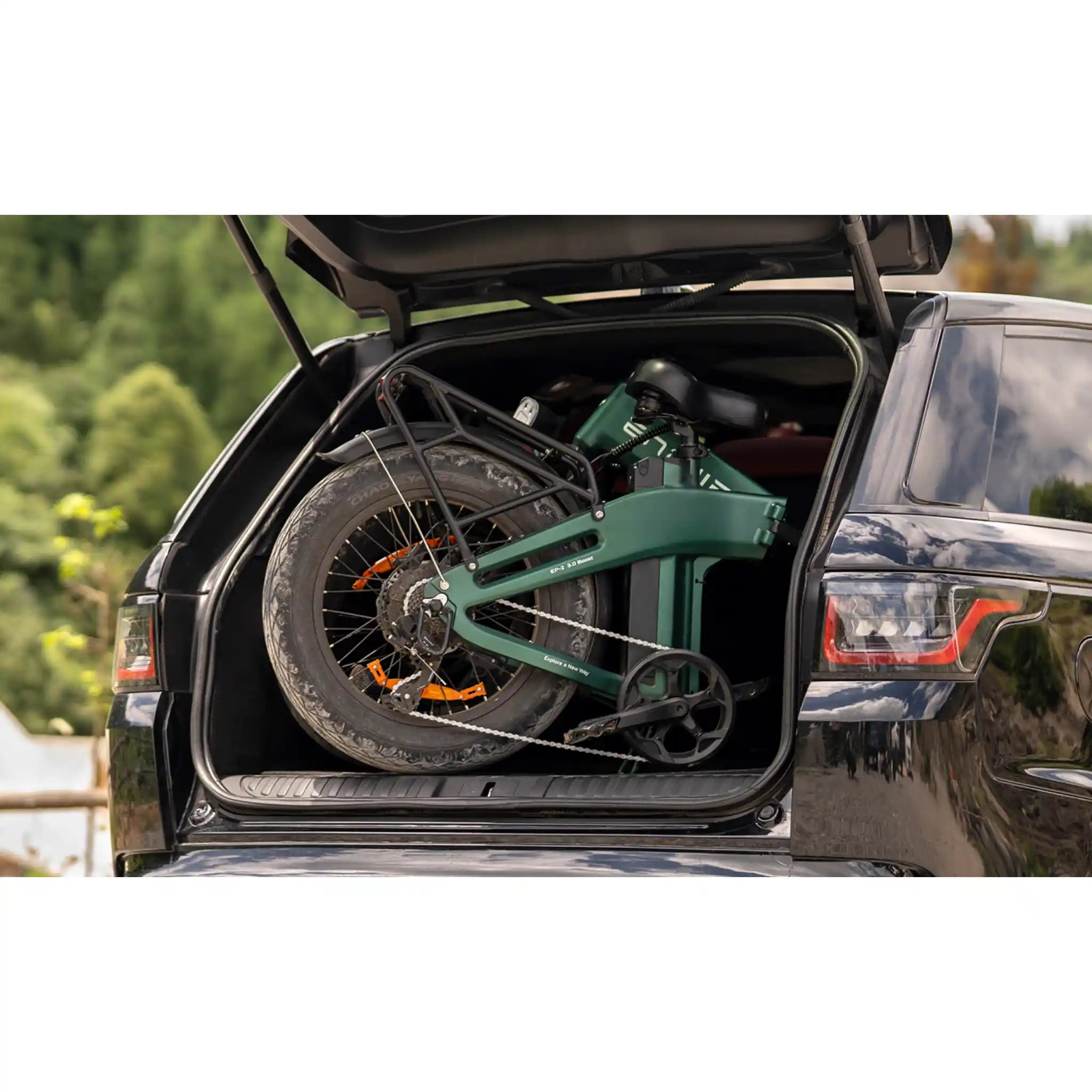

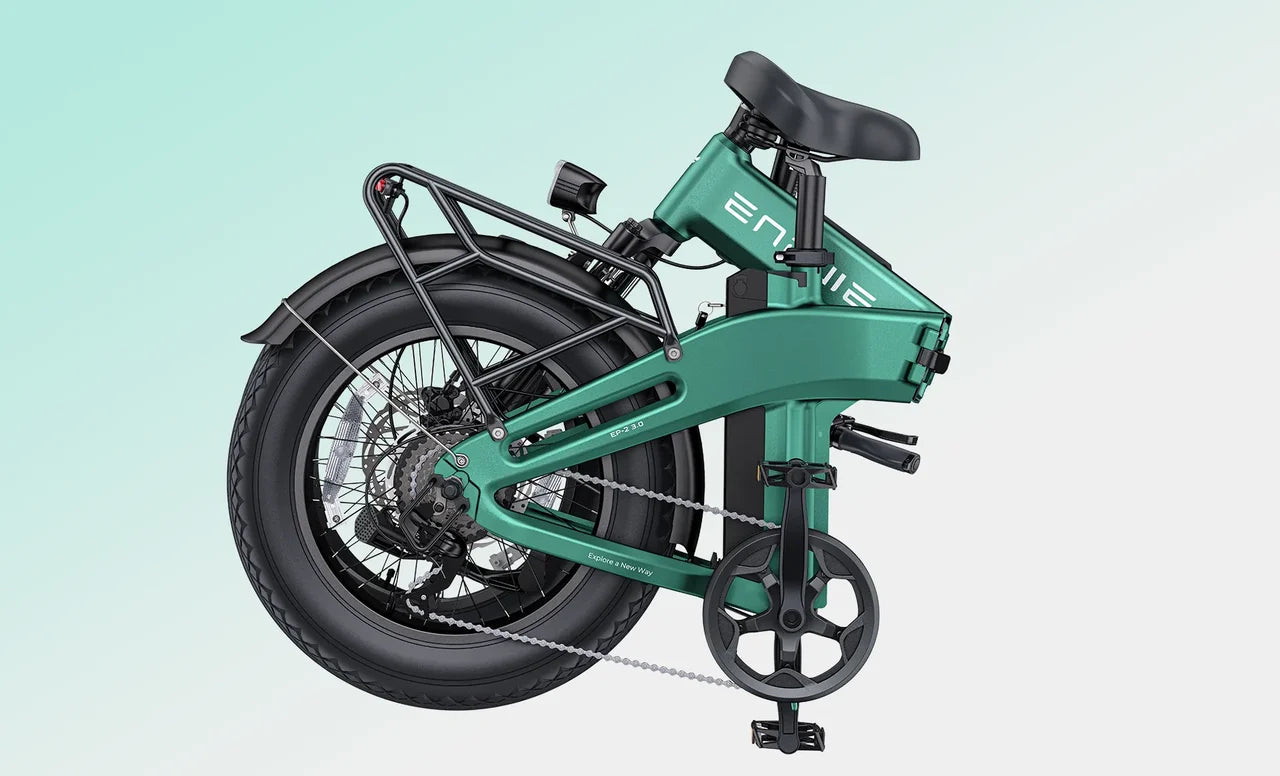

Folded Dimensions

• A- Length: 38.2" / 97 cm
• B- Width: 20.9" / 53 cm
• C- Height: 31.9" / 81 cm

Shipping Dimensions

• Package: 54.1" x 11.6" x 25.6" / 137.5 x 29.5 x 65 cm
• Gross Weight: Approximately 88.8 lbs / 40.3 kg

ENGWE notes that measured dimensions may vary by approximately 0–5 cm.

Owner's Manual

Please refer to the official ENGWE EP-2 3.0 Owner's Manual for complete operating, setup, maintenance and safety instructions here.

Assembly Guide

What's in the Box?

• ENGWE EP-2 3.0 E-Bike × 1
• 48V 15Ah Lithium-Ion Battery × 1
• 54.6V 8A Fast Charger × 1
• Front & Rear Fenders × 1 Set
• Bike Kickstand × 1
• Rear Rack × 1
• Pedals × 2
• Assembly Tools × 1
• English User Manual × 1
