FUCARE - Libra, Full Suspension Electric Cargo Bike 48V 750W 28MPH

One of the best-selling electric cargo bikes by Fucare!

Introducing the Libra Electric Cargo Bike, the ultimate solution for versatile and efficient transportation.  Whether you're commuting, running delivery errands, or exploring new trails, this full-suspension electric bike is designed to deliver an impressive range all while handling heavy loads or an extra passenger with ease.

The bike's robust aluminum alloy frame, combined with its front and rear suspension, ensures a smooth and comfortable ride on any terrain.  The step-through design and Fucare's unique Stability Triangle further enhance the bike's ease of use and stability making it a perfect companion for any trip.

Highlights

• MOTOR POWER: 750W rear geared hub motor
• TOP SPEED: 28-32 mph
• RANGE: 30-60 miles
• WEIGHT CAPACITY: 400 lbs and an optional rear seat capable of supporting an additional 100 lbs

Battery Features

• Battery: 48V 20Ah (Rated 19.2Ah) 21700 Samsung Cells
• Charger: 48V 3A Charger
• Charging Time: 6-8 Hours
• Battery Weight: 3.62 KG / 7.98 LBS

Cargo Features

This bike can handle 400 lbs and with rear seat capable of supporting an additional 100 lbs.

The welded rear rack adds a layer of versatility, making Libra your go-to for any journey—be it carrying passengers or cargo.

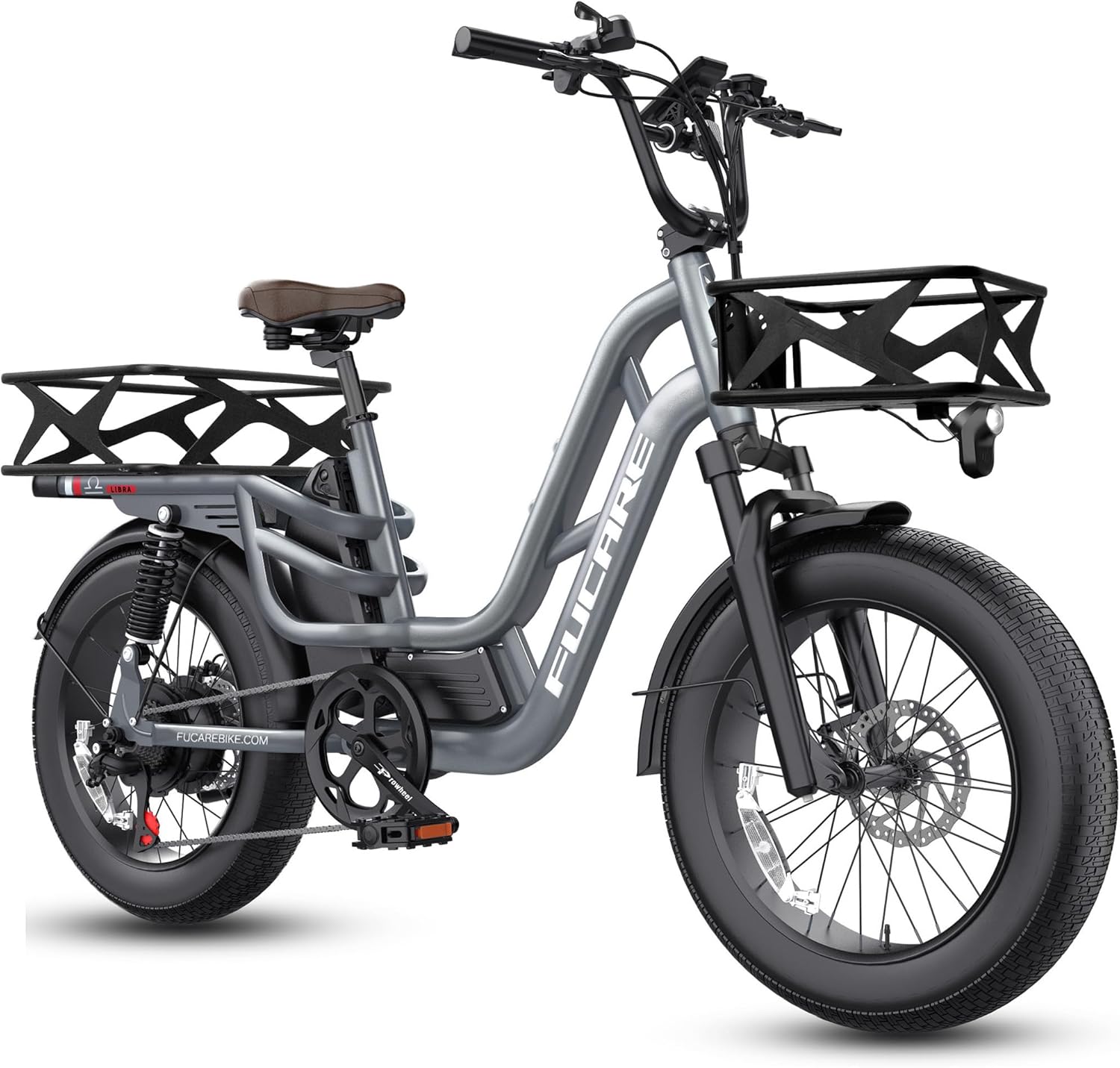

Front & Rear Basket Set (sold separately)

The cargo Front and Rear Basket set are easily installed to the Libra E-bike to transport goods and food deliveries with ease.

Dimension

• Small Basket (exterior): 12” x 12.8” x 5.5” (30.4cm x 32.4cm x 14cm)
• Large Basket (exterior): 18.1” x 13.4” x 5.5” (46cm x 34cm x 14cm)

Load Capacity

• Front mounted rack/basket: 30LBS (13.6KG)
• Rear mounted backset: 110LBS (50KG)

Specs

• Motor: SHENGYI 750W Rear Hub Motor
• Charger: 48V 3A Charger
• Controller: LISHUI 20A Controller
• Display: Yolin Integrated Smart LCD Display
• Battery: 48V 20Ah (Rated 19.2Ah) 21700 Samsung Cells
• Light: Headlight And Tailight (Integrated Brake Light)
• Frame: 6061 Aluminum Frame
• Front Fork: Suspension Front Fork
• Crankset: 52T 170mm Crankset
• Transmission: Shimano 7 Speed
• Tires: INNOVA 20*4.0'' All-Terrain Tires
• Rim: 20'' Double Wall Aluminum 36H
• Brake: F/R 180mm Hydraulic Brakes
• Fenders: Front & Rear Fenders Included
• Rear Rack: Included
• Top Speed: 28 - 32 Mph*
• Range: 40 - 120 Miles*
  • *Actual Performance May Vary Based On Factors Such As Temperature, Road Conditions, Rider's Weight, Etc.
• Climbing Ability: Up To 30°*
  • *Actual Performance May Vary Based On Factors Such As The Rider's Physical Strength, Terrain Steepness, Road Conditions, and the Ebike's Overall Condition, Etc.
• Torque: 80NM
• Rear Rack Max Load: 100lbs
• Max Load: 400lbs
• Battery Weight: 3.62 KG / 7.98 LBS
• Weight*:
  • Gross Weight: 46.8 KG / 103 LBS
  • Net Weight: 37 KG / 81.5 LBS
  • *All Stated Weight Numbers Have A +/- 3%-5% Tolerance. Net Weight Includes The Battery But Excludes All Accessories And Package. Gross Weight Includes The Battery And All Accessories And Package.
• Suggested Rider Height: 5‘2’‘ - 6’3‘’

Geometry

• Max Seat Hight (A) - 99.0 cm / 39.1 in
• Min Seat Hight (B) - 83.8 cm / 33.0 in
• Seat Tube Length (C) -45.0 cm / 17.7 in
• Head Tube Length (D) - 21.0 cm / 8.3 in
• Wheel Base (E) -119.0 cm / 46.9 in
• Chain stay Length (F) - 49.0 cm / 19.3 in
• Reach (G) - 44.0 cm / 17.3 in
• Top Tube Length (H) - 60.0 cm / 23.6 in
• Head Tube Angle (I) - 71゜
• Seat Angle (J) - 73゜
• Stack (K) - 60.4 cm / 23.7 in

Suggested Rider Height: 5‘2’‘ - 6’3‘’

Owner's Manual & Maintenance Guide

Please refer to the Owner's Manual here.

Please refer to the Display Manual here.

Assembly Guide
