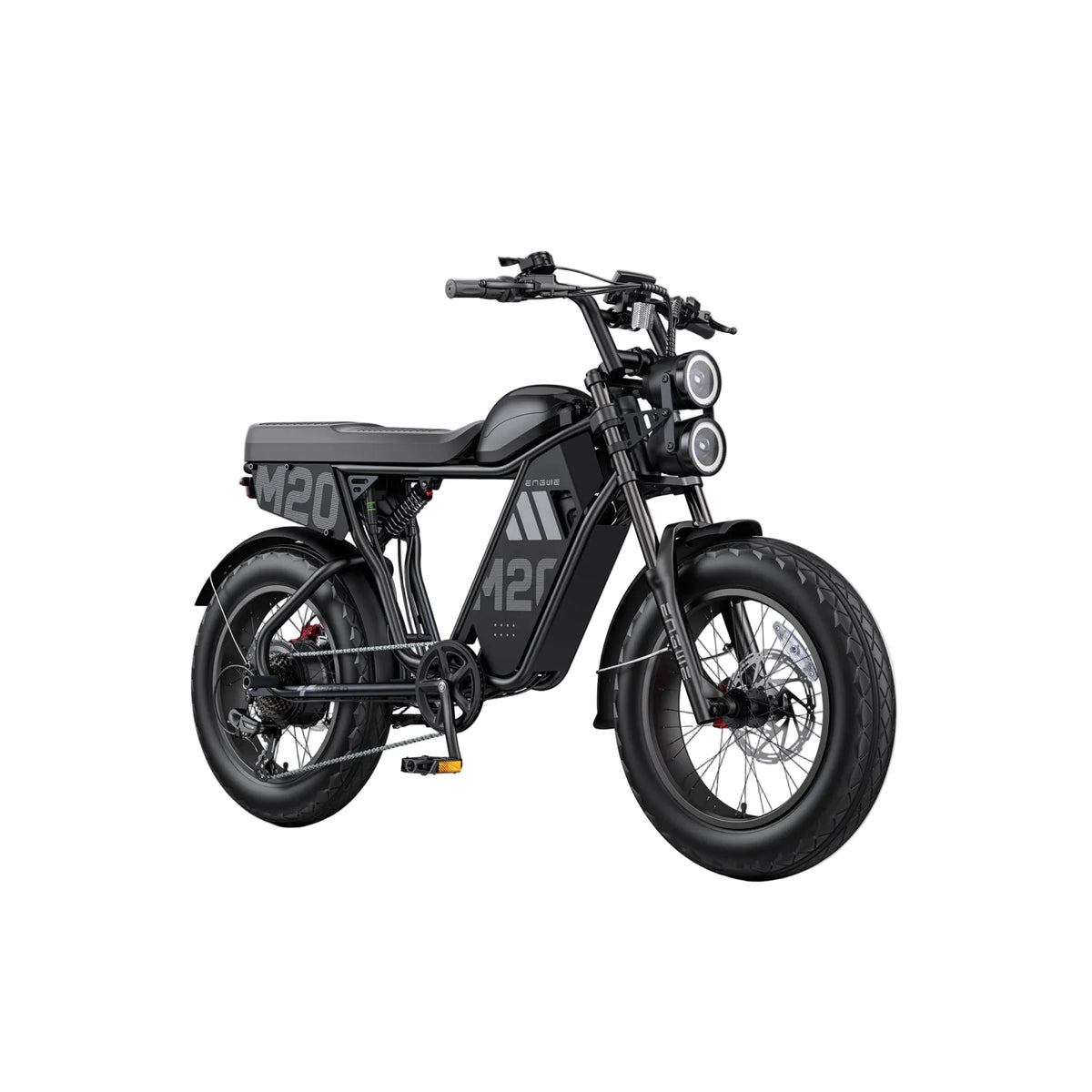

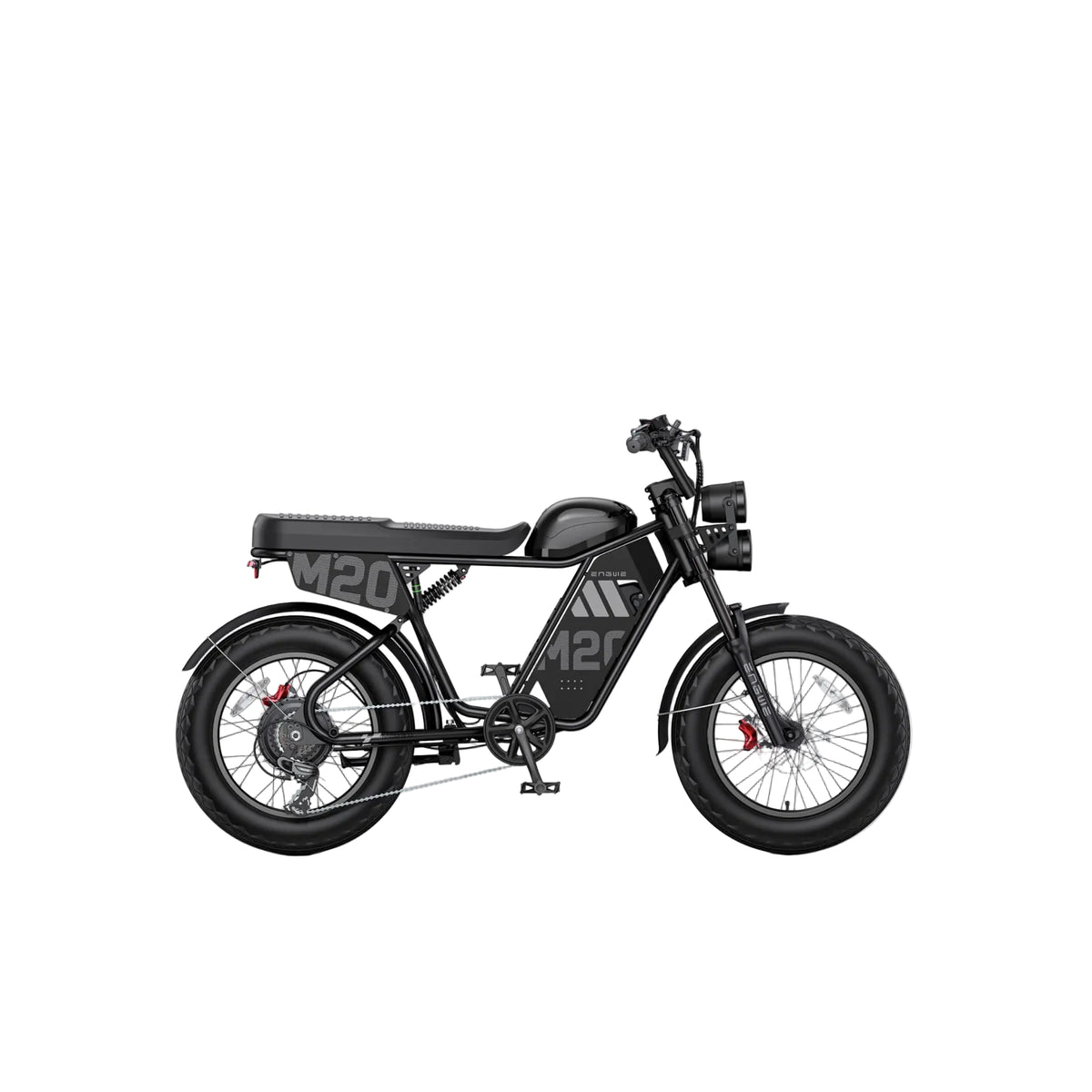

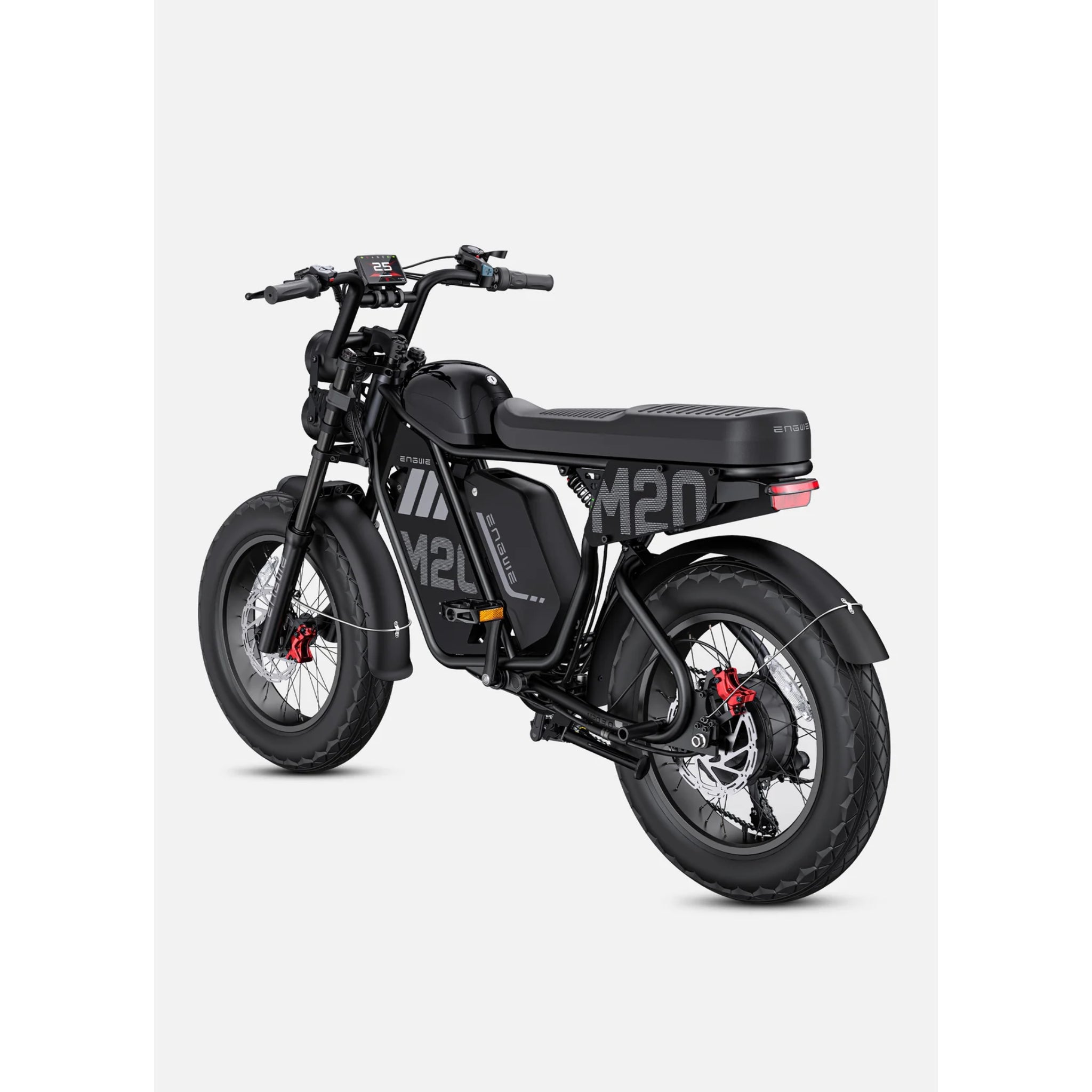

ENGWE - M20 3.0, Full Suspension E-Bike 52V 1200W 28MPH

Discover elevated e-bike performance with the ENGWE M20 3.0—a moto-inspired, full-suspension machine built for spirited urban rides and trail adventures. Combining muscular power, responsive suspension, and intuitive controls, this bike delivers thrilling speed paired with practical, all-day comfort.

HIGHLIGHTS

• MOTOR POWER: 3300 W peak output
• TOP SPEED: Up to 40 mph
• RANGE: Up to ~90 mi (single battery) / ~180 mi (dual battery)
• WEIGHT CAPACITY: 330 lb rider + cargo capacity

Battery Features

• Battery Options: Single 1200 Wh (60 V 20 Ah) or Dual 2400 Wh (60 V 40 Ah)
• Fast Charging: 8 A charger, 0–80 % in approx. 2 hours
• Peak Torque: 120 Nm for brisk acceleration
• Throttle: Half-twist throttle for instant power delivery
• Intelligent BMS: Manages fast, safe charging and battery health

Specs

• MODEL: ENGWE M20 3.0

• FRAME MATERIAL: Aluminum Alloy

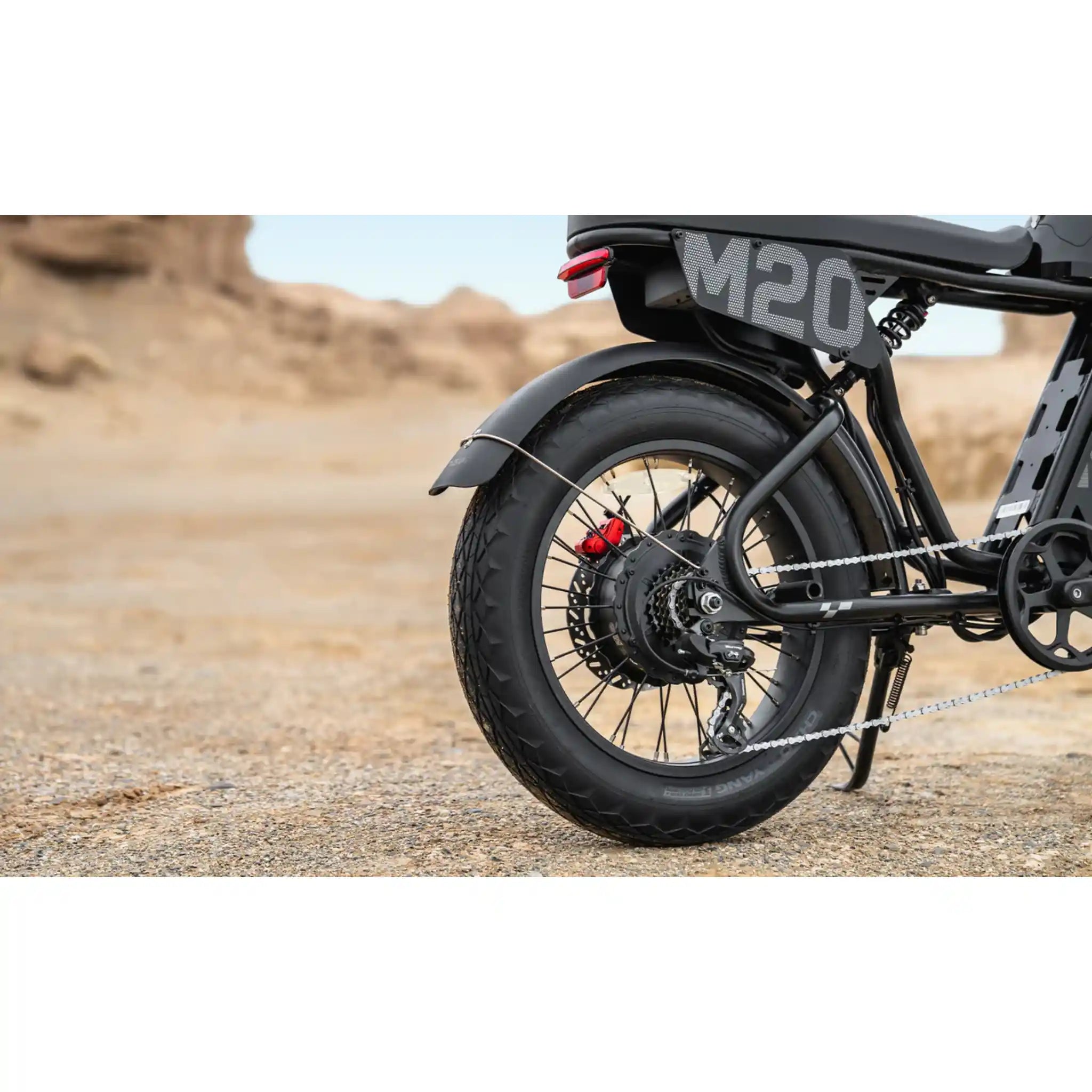

• MOTOR: 750W Rated Rear Hub Motor

• PEAK MOTOR POWER: 3,300W

• MAXIMUM TORQUE: 120 Nm

• BATTERY – SINGLE: 60V 20Ah Lithium-Ion / 1,200Wh

• BATTERY – DUAL: 60V 40Ah Total / 2,400Wh

• CHARGER: 8A Fast Charger

• CHARGING TIME: Approx. 2.5–3 Hours

• FAST CHARGE: 0–80% in Approx. 2 Hours

• MAXIMUM SPEED: Up to 40 MPH in Off-Road Mode

• FACTORY DEFAULT SPEED: 20 MPH

• MAXIMUM PAS RANGE: Up to 90 Miles – Single Battery / 180 Miles – Dual Battery

• THROTTLE-ONLY RANGE: Up to 40 Miles – Single Battery / 85 Miles – Dual Battery

• THROTTLE: Half-Twist Throttle

• MAXIMUM CLIMBING GRADE: 47%

• PEDAL ASSIST: Multiple PAS Levels

• TRANSMISSION: Shimano 7-Speed

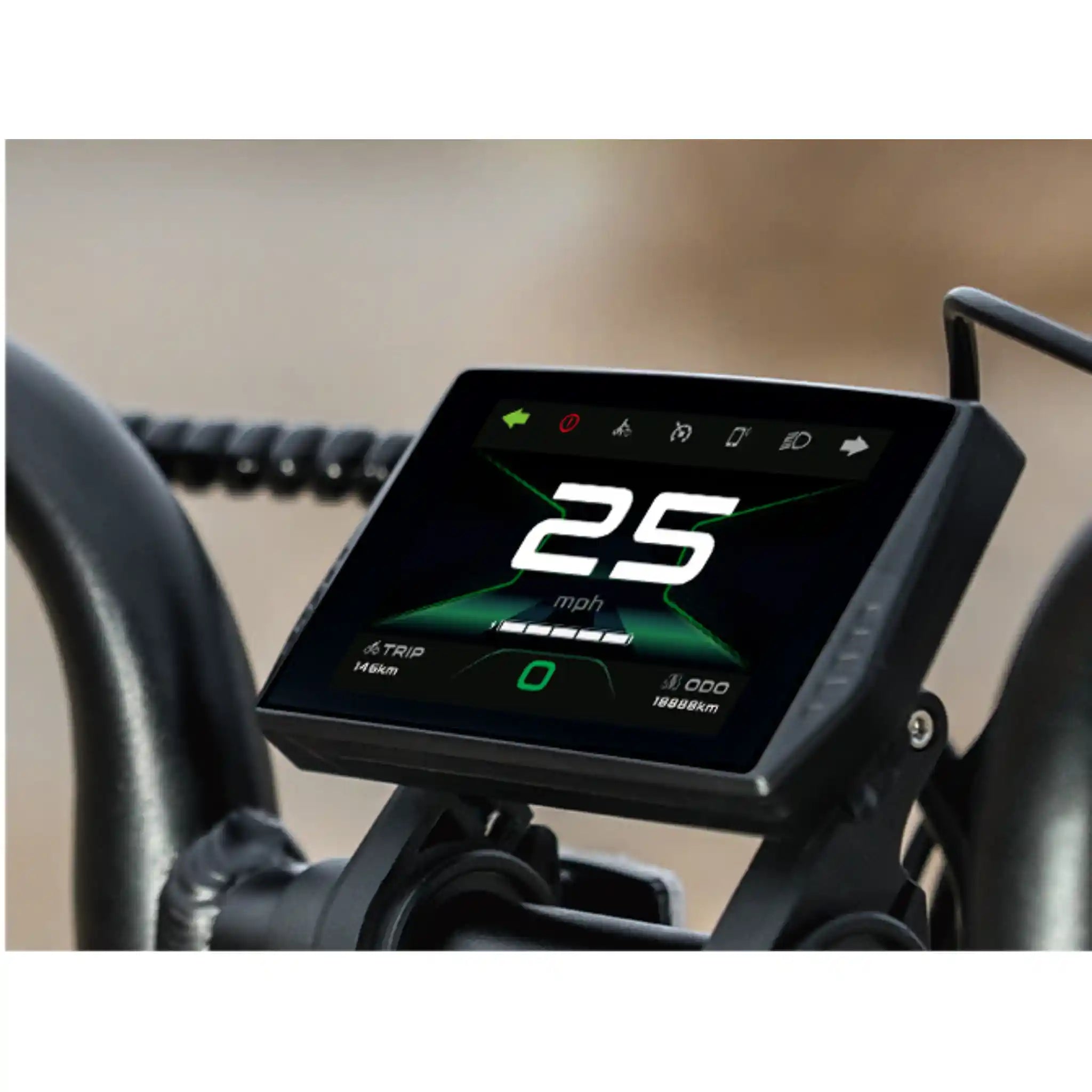

• DISPLAY: 3.5" Full-Color TFT Display

• FRONT SUSPENSION: Adjustable, 100 mm Travel

• REAR SUSPENSION: DNM Adjustable, 55 mm Travel

• SUSPENSION TYPE: Full Suspension

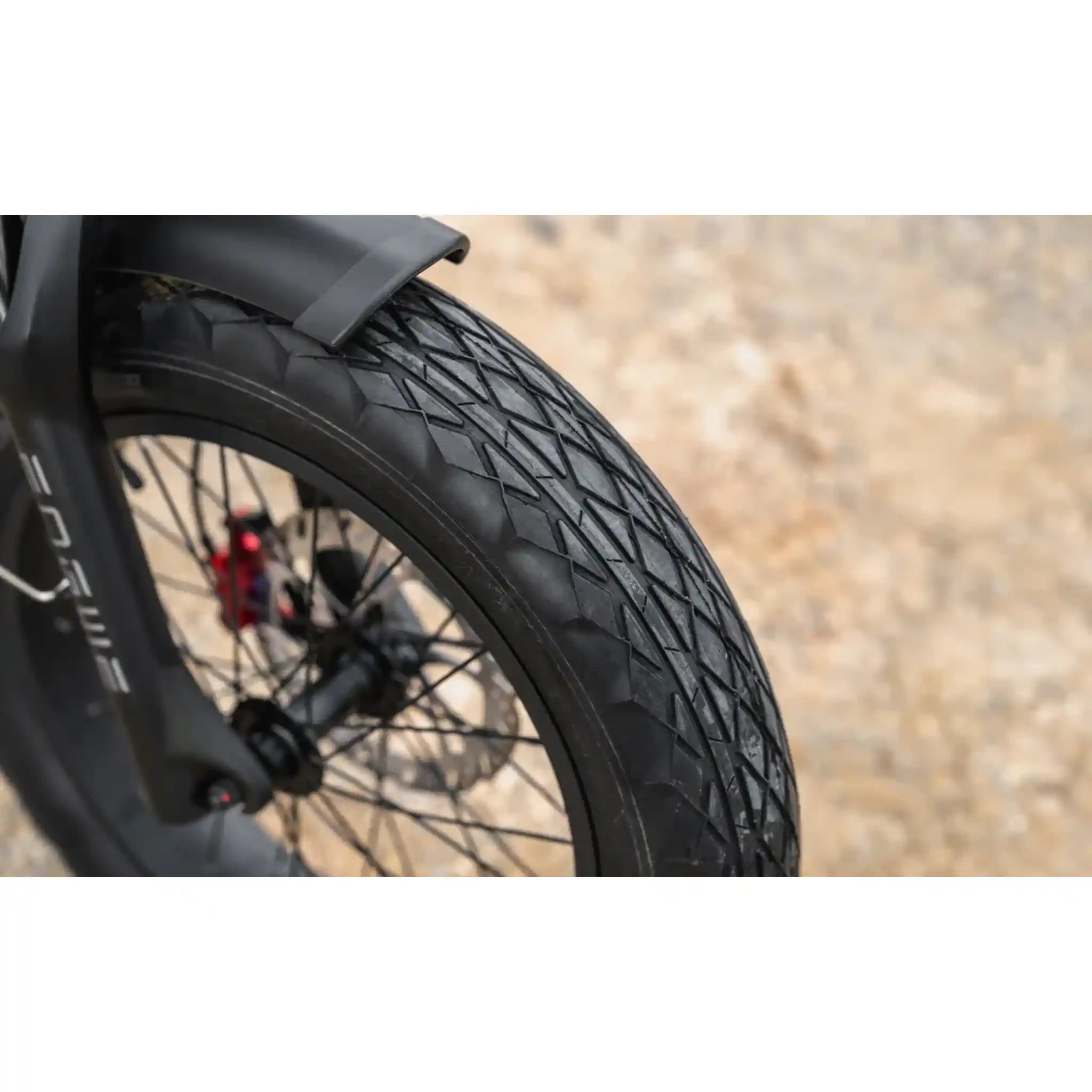

• TIRES: 20" × 4.0" Puncture-Resistant Fat Tires

• REAR TIRE COMPATIBILITY: Supports Up to 20" × 5.0" Rear Tire

• BRAKES: 4-Piston Hydraulic Disc Brakes

• BRAKE ROTORS: 203 mm Front & Rear

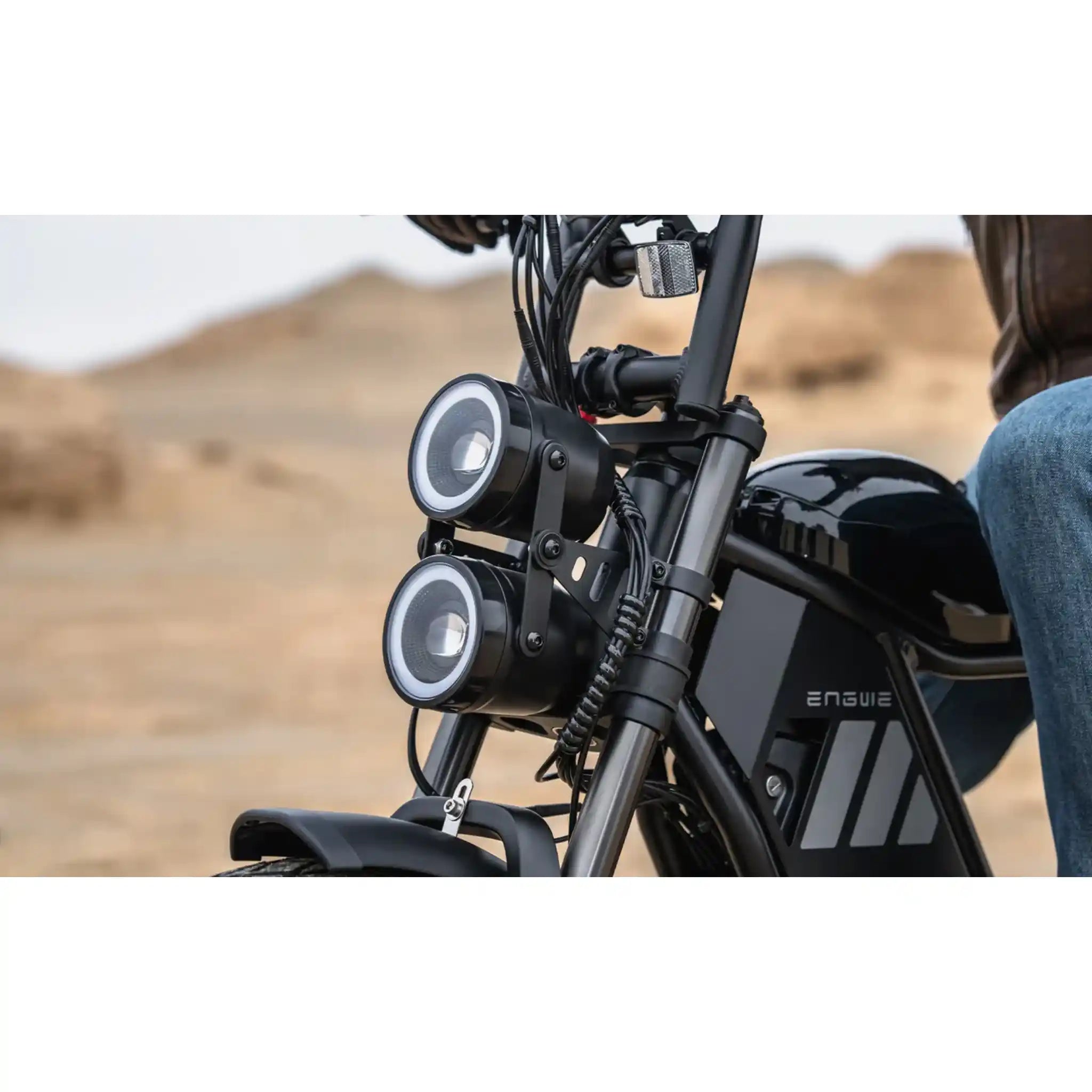

• FRONT LIGHT: Dual 60V Headlights with Integrated Horn

• REAR LIGHT: Integrated Brake Light and Turn Signals

• CRUISE CONTROL: Yes

• WATER RESISTANCE: IPX4

• MAXIMUM LOAD: 330 lbs / 150 kg

• BIKE WEIGHT: 102 lbs / 46.3 kg

• RECOMMENDED RIDER HEIGHT: 5'3"–6'8"

• HANDLEBAR HEIGHT: 41"

• TOTAL LENGTH: 71"

• SEAT HEIGHT: 31"

• WHEELBASE: 48"

• STANDOVER HEIGHT: 31"

• HANDLEBAR REACH: Adjustable

Geometry

Please note: There may be a difference of 0~1.9 inches (0~5 cm between measured and actual data.

Owner's Manual

Assembly Guide

What's in the Box?

• 1 × ENGWE M20 3.0 Electric Bike (single or dual battery version)
• 1 × Removable Battery (2 × if dual‑battery version)
• 1 × Battery Charger
• 1 × Assembly Toolkit
• 1 × Pedal Set
• 1 × Rearview Mirror Set
• 1 × User Manual
• 1 × Assembly Guide

Warranty

To learn more details about this product's warranty, please refer to our Warranty Page.
