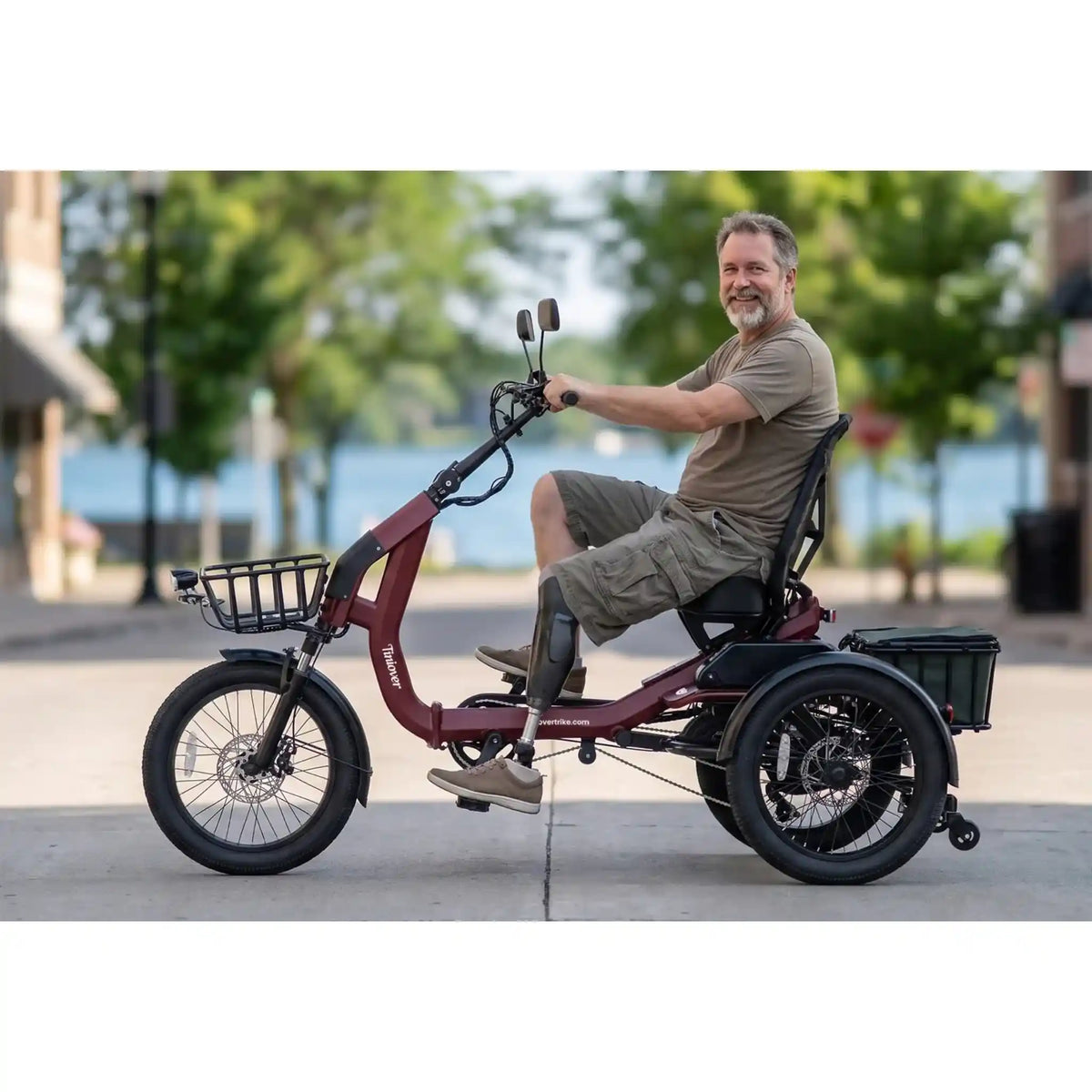

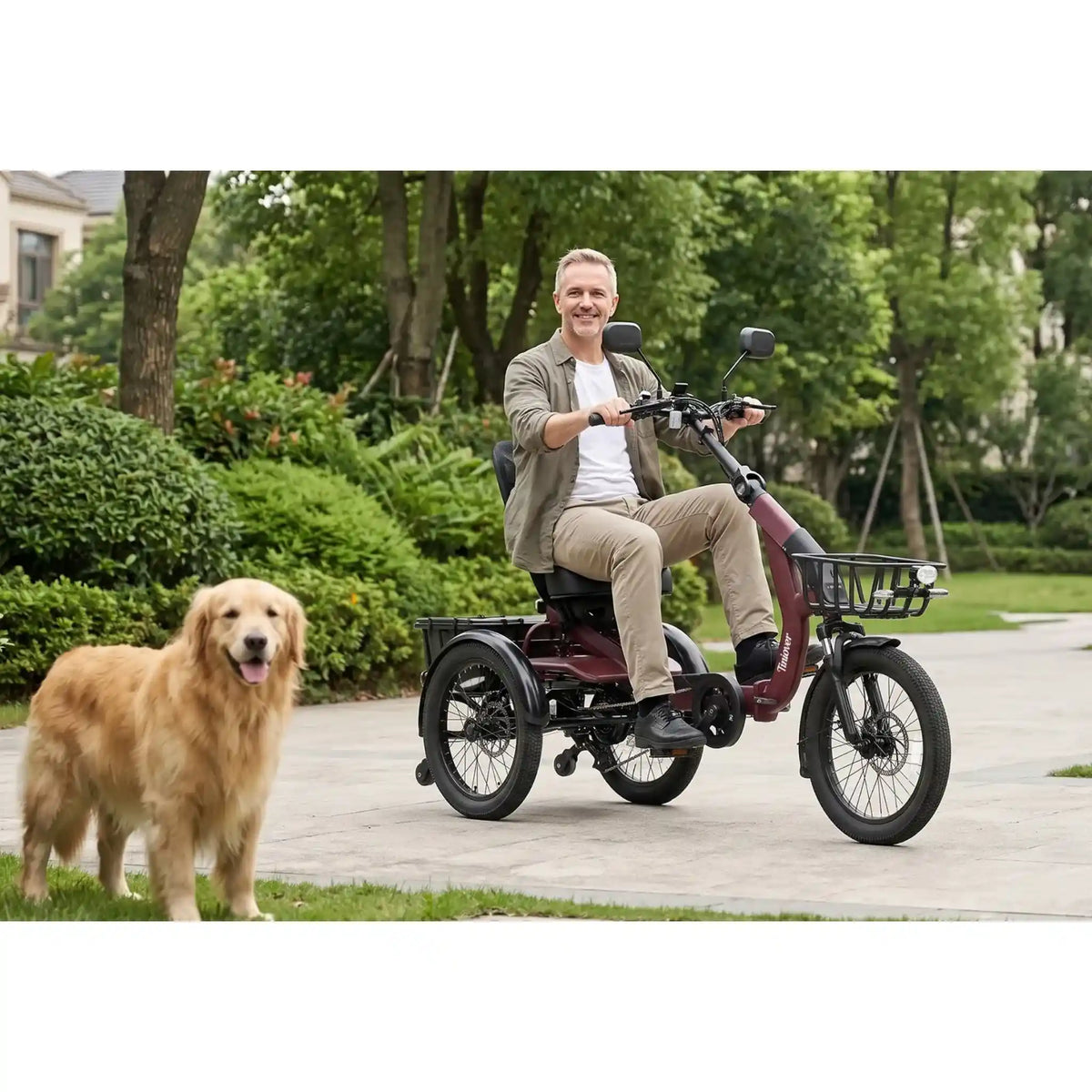

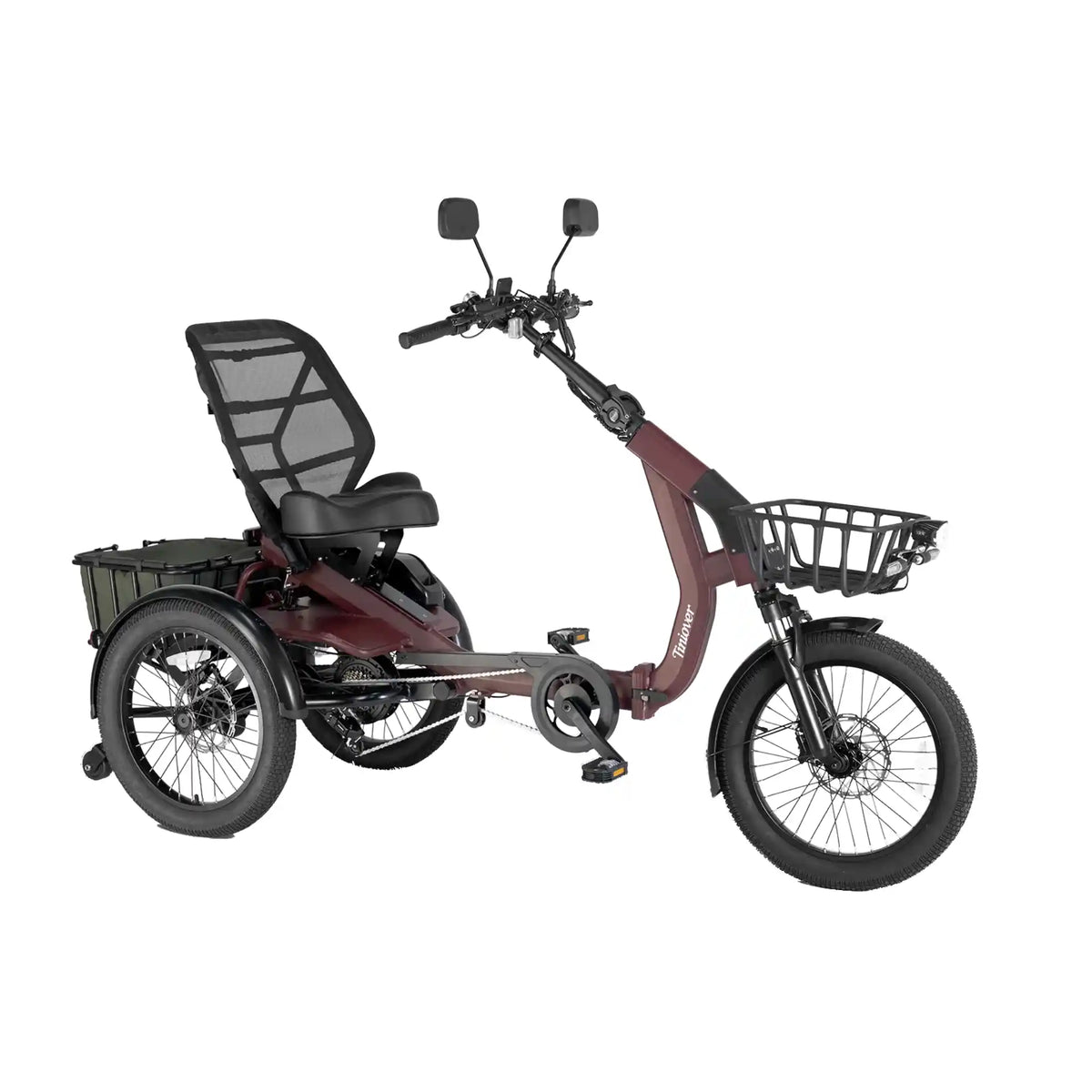

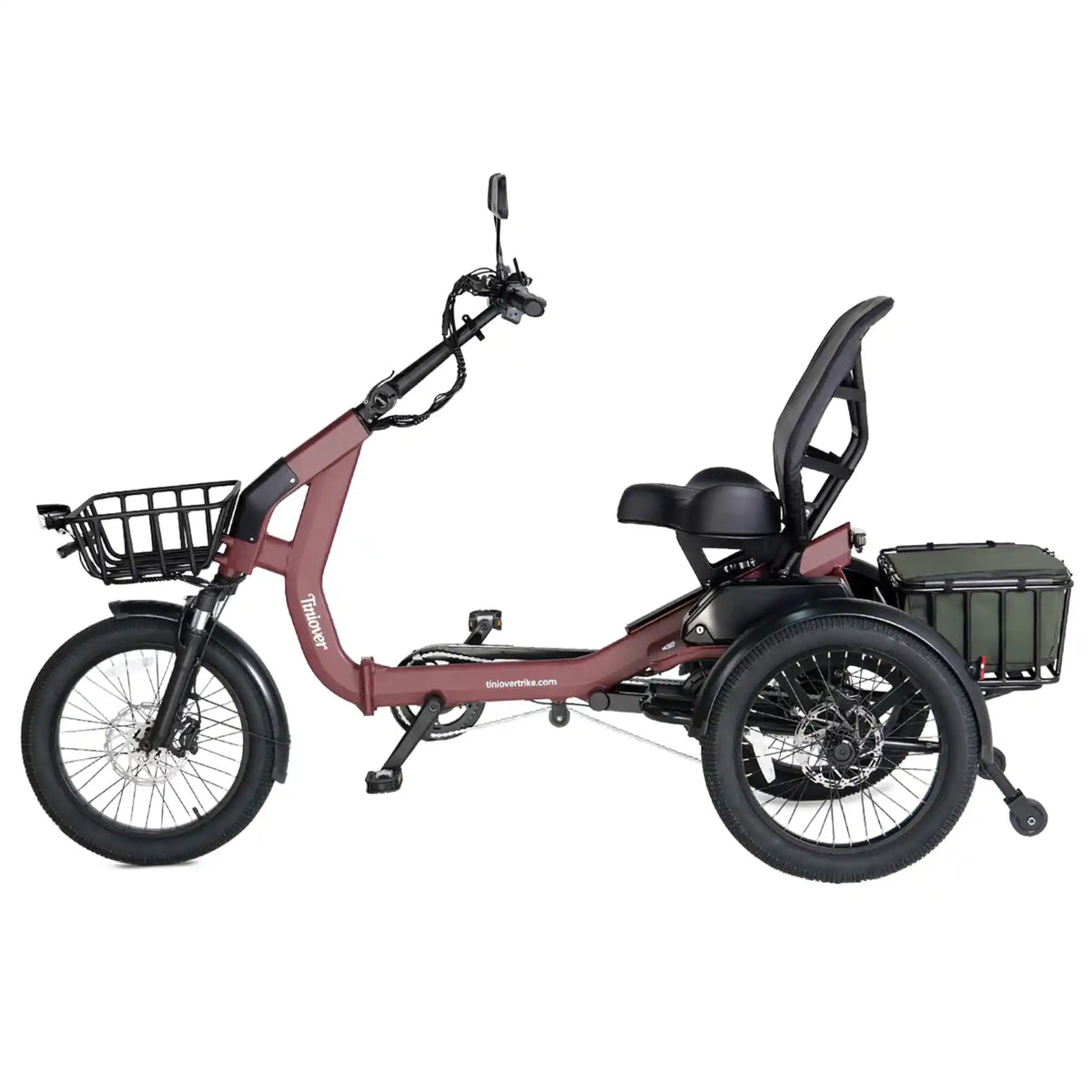

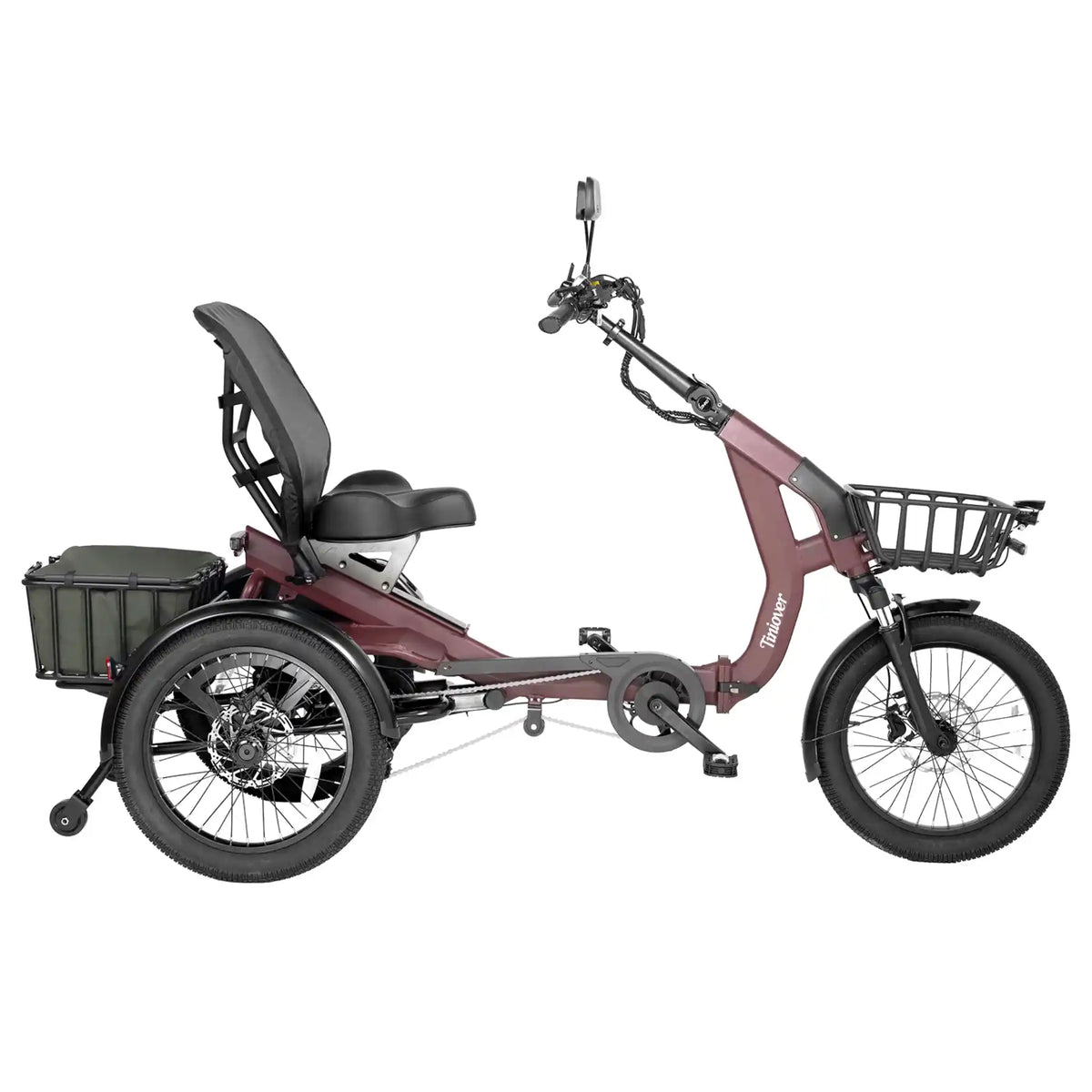

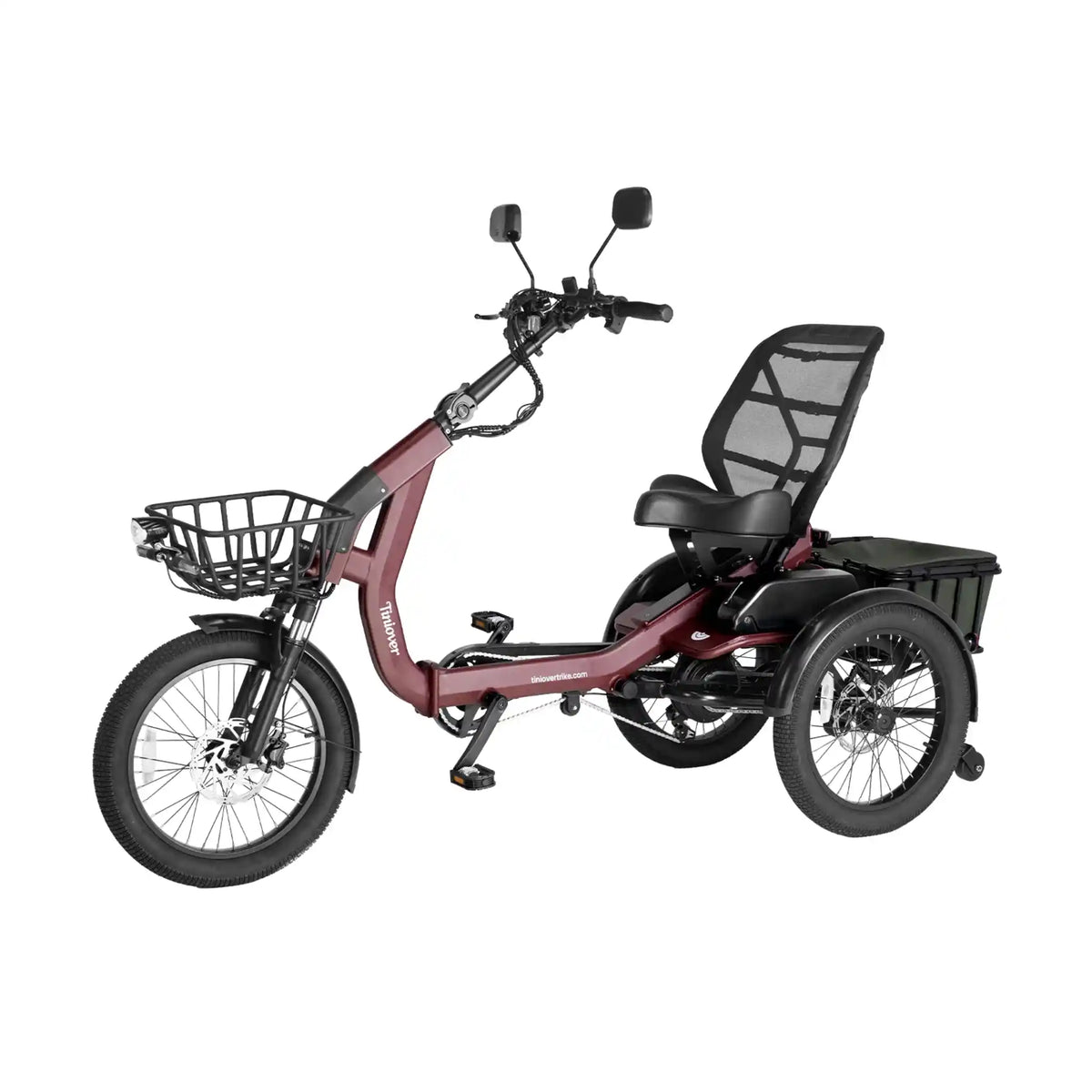

The Tiniover Lake is a premium semi-recumbent electric trike designed around comfort, stability and adjustability. Its forward-pedal riding position, extra-wide seat and supportive adjustable backrest create a relaxed riding posture, while the seat, handlebars and backrest can all be fine-tuned to accommodate riders from 4'7" to 6'7".

Powered by a 750W rated / 1,200W peak rear motor delivering up to 90 Nm of torque, the Lake combines serious performance with a torque sensor, full front-and-rear suspension, triple hydraulic brakes and a speed differential for smooth, controlled handling. A 48V 20Ah removable LG-cell battery provides up to 80–100 miles of pedal-assist range, while dual-battery capability allows riders to expand total capacity to 40Ah / 1,920Wh for extended riding.

HIGHLIGHTS

• MOTOR POWER: 750W Rated / 1,200W Peak

• TOP SPEED: Up to 20 MPH

• RANGE: 60–80 Miles Throttle / 80–100 Miles PAS

• WEIGHT CAPACITY: 550 lbs

Battery Features

The Lake is powered by a removable 48V 20Ah lithium-ion battery using LG cells, delivering 960Wh of capacity. Tiniover rates the standard battery for approximately 60–80 miles in throttle mode or 80–100 miles using pedal assist, depending on riding conditions.

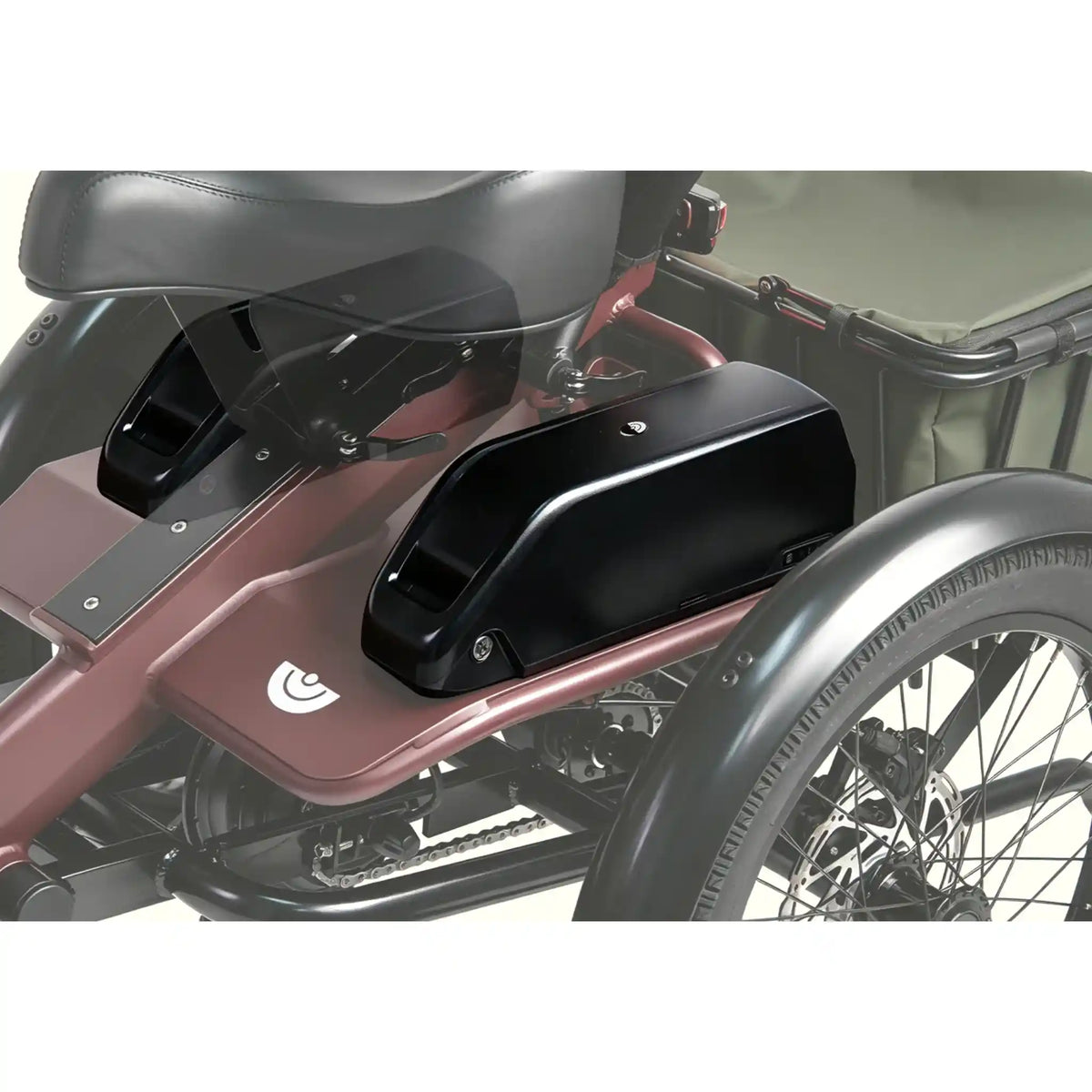

The frame also supports a second battery installed on the opposite side of the trike. With two 20Ah batteries installed, total battery capacity increases to 40Ah / 1,920Wh. The batteries are used alternately rather than simultaneously. Tiniover does not currently publish a specific dual-battery range figure.

• Battery: 48V 20Ah Lithium-Ion

• Battery Capacity: 960Wh

• Battery Cells: LG Lithium Cells

• Battery Type: Removable

• Throttle Range: 60–80 Miles

• Pedal-Assist Range: 80–100 Miles

• Charging Time: Approximately 6–8 Hours

• Battery Weight: Approximately 10 lbs / 4.5 kg

• Dual-Battery Ready: Yes

• Maximum Supported Battery Capacity: 40Ah / 1,920Wh with two 20Ah batteries

Actual range will vary depending on rider weight, terrain, riding speed, weather conditions, payload and assist level.

Cargo Features

The Lake combines a 550 lb total payload capacity with included front and rear cargo baskets, making it suitable for groceries, recreational equipment and everyday cargo.

A dedicated rear rack and basket are included with the trike. Tiniover does not currently publish separate weight ratings for the individual front basket, rear basket or rear rack.

• Maximum Total Payload: 550 lbs / 250 kg

• Front Basket: Included

• Rear Basket: Included

• Rear Rack: Included

• Rear Basket Liner: Included

SPECS

• MODEL: Tiniover Lake

• TYPE: Semi-Recumbent Electric Trike

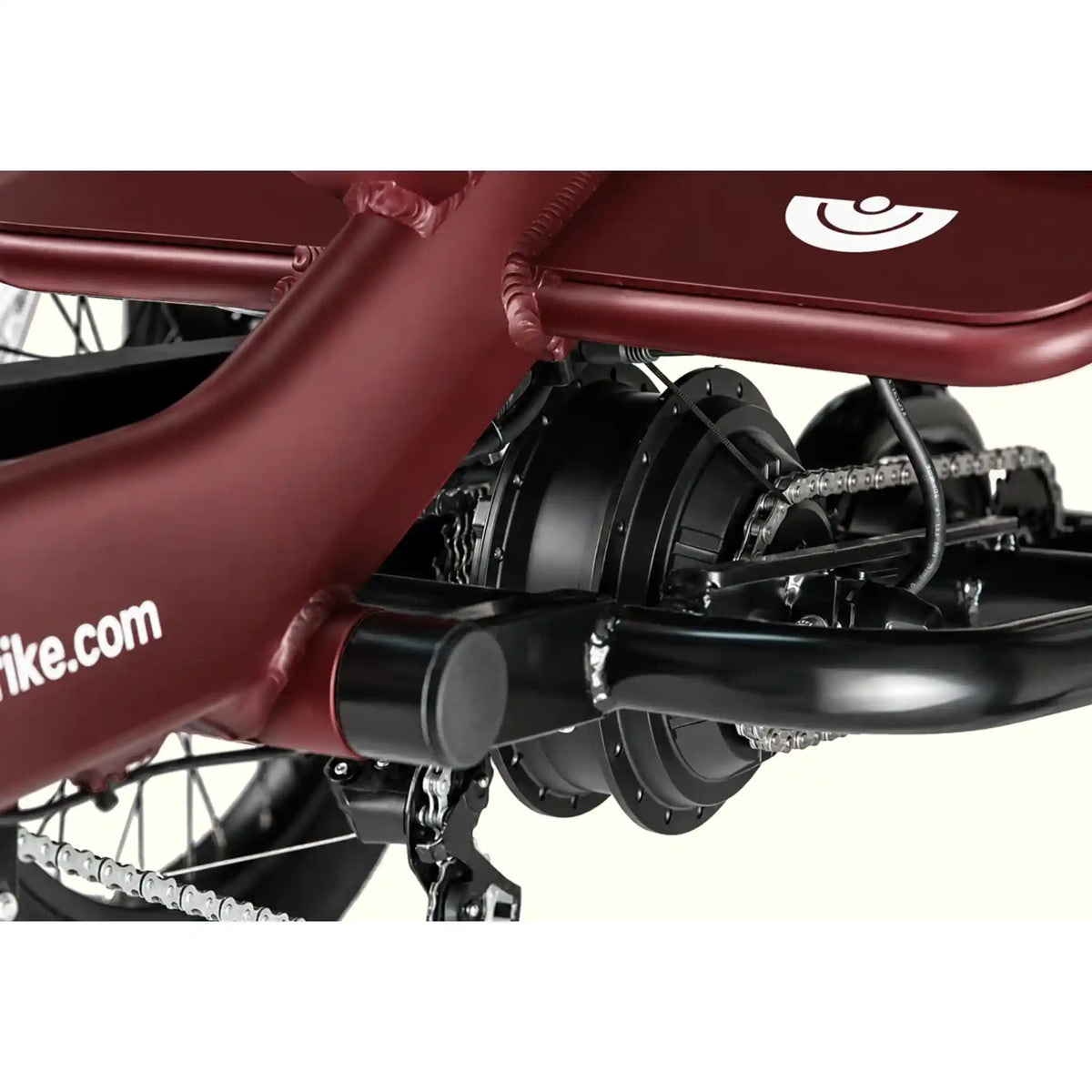

• MOTOR: Rear Hub Motor

• RATED MOTOR POWER: 750W

• PEAK MOTOR POWER: 1,200W

• MAXIMUM TORQUE: 90 Nm

• TOP SPEED: Up to 20 MPH

• BATTERY: 48V 20Ah Lithium-Ion

• BATTERY CAPACITY: 960Wh

• BATTERY CELLS: LG Lithium Cells

• DUAL-BATTERY CAPABLE: Yes

• DUAL-BATTERY CAPACITY: Up to 40Ah / 1,920Wh

• THROTTLE RANGE: 60–80 Miles

• PEDAL-ASSIST RANGE: 80–100 Miles

• CHARGING TIME: Approximately 6–8 Hours

• SENSOR: Torque Sensor

• FRAME: Aluminum Alloy

• FRAME TYPE: Foldable Step-Through

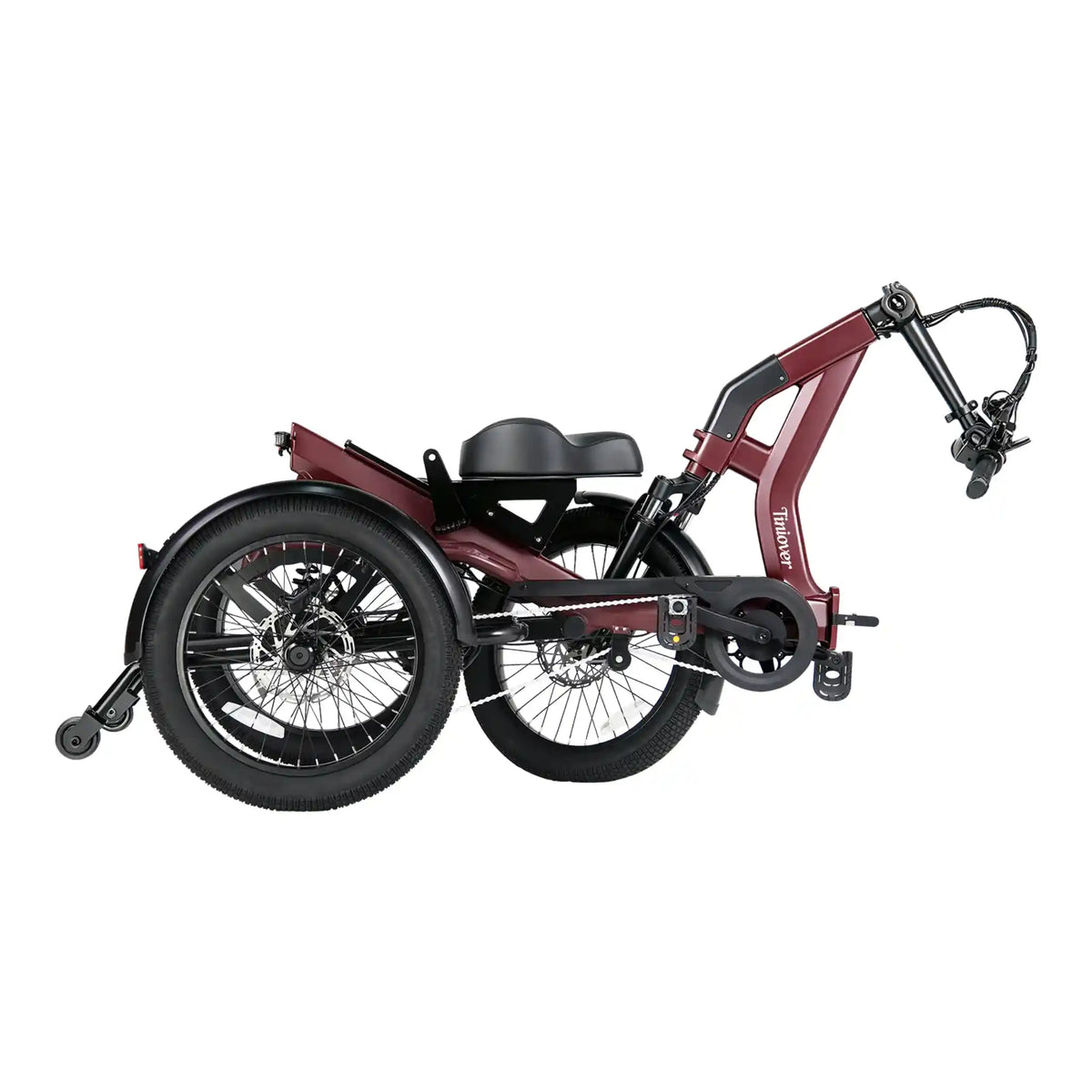

• FOLDING SYSTEM: Dual-Lock Folding Mechanism

• FRONT SUSPENSION: Yes

• REAR SUSPENSION: Yes

• SUSPENSION TYPE: Front & Rear Full Suspension

• TIRES: 20" × 3" Fat Tires

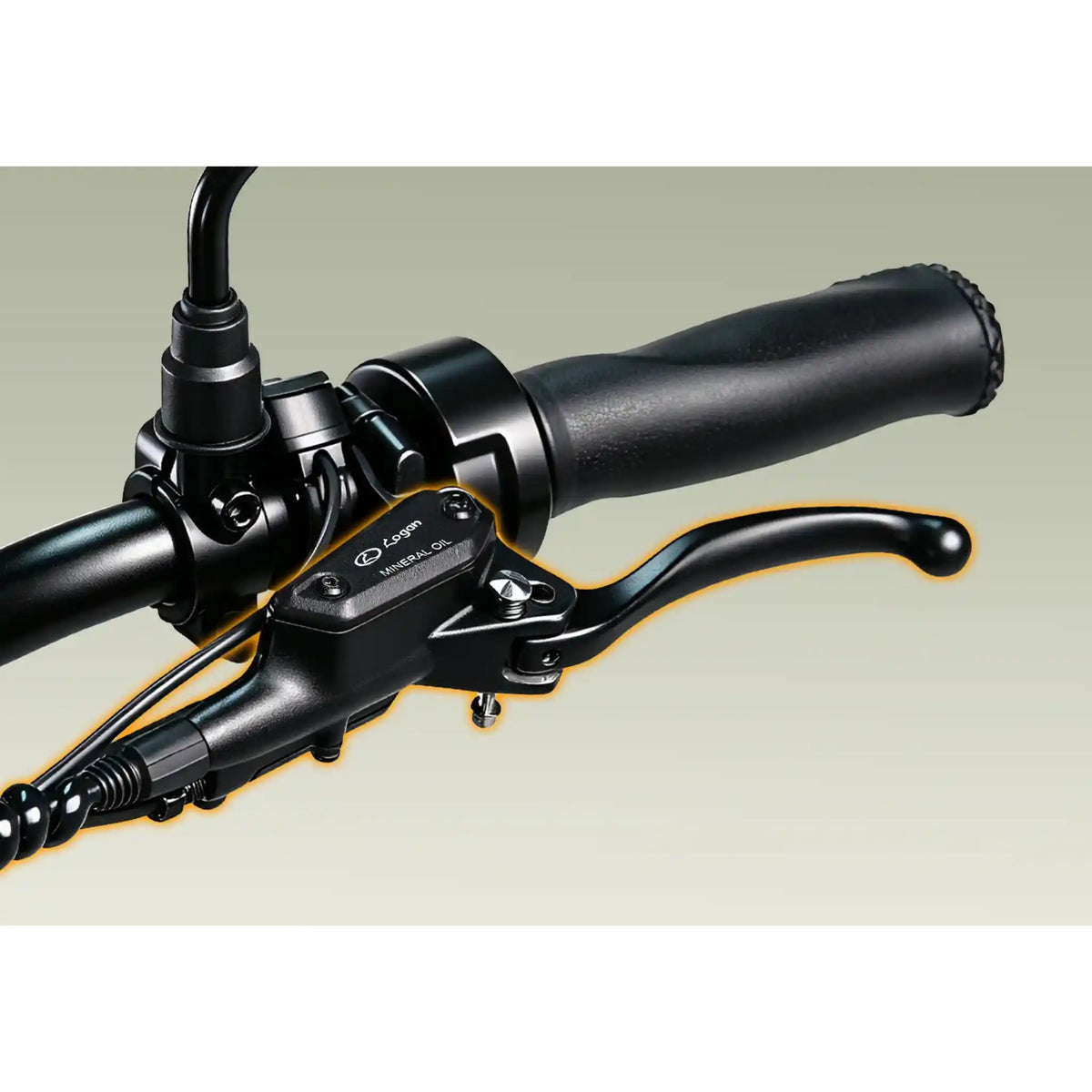

• BRAKES: Triple Hydraulic Disc Brakes

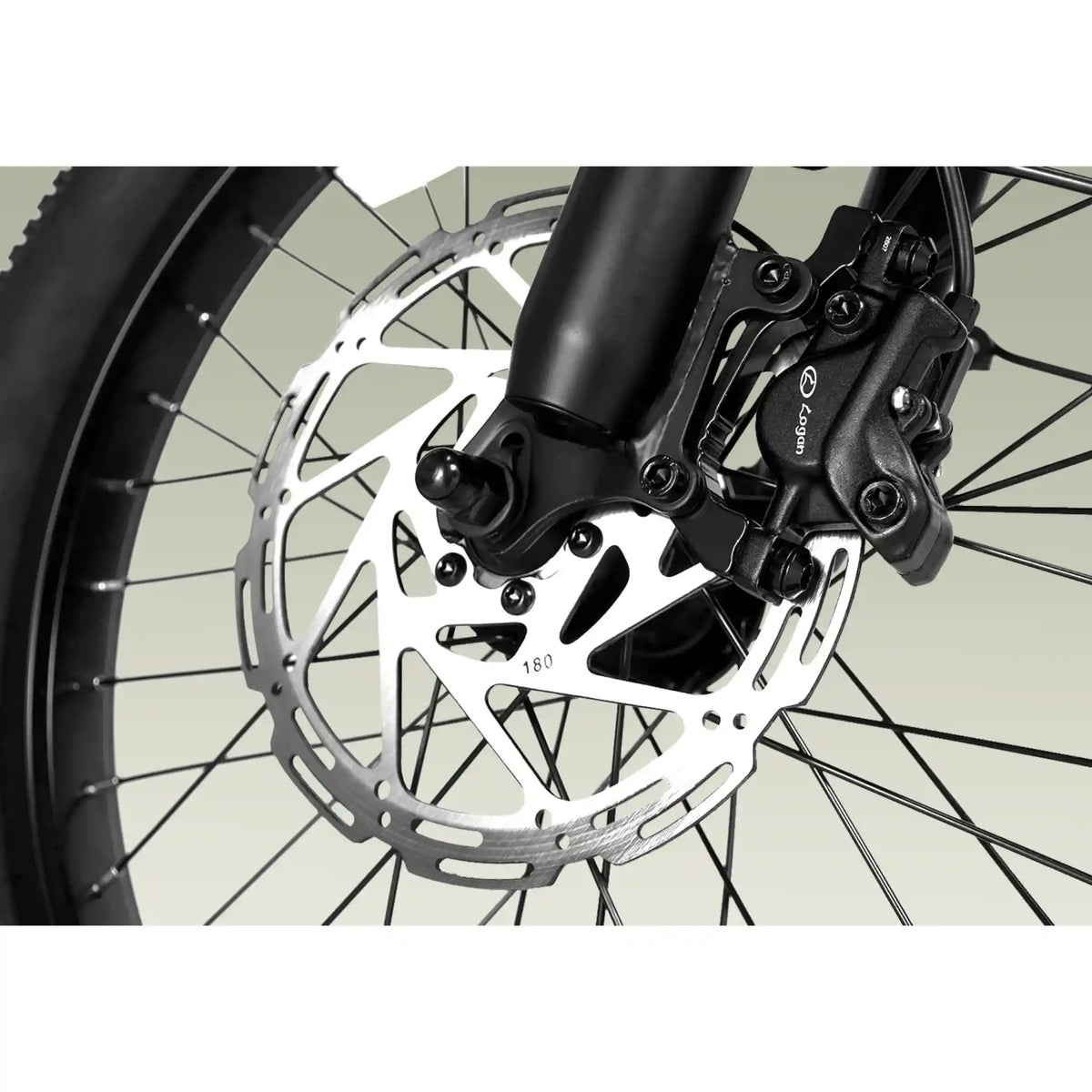

• BRAKE ROTORS: 180 mm

• MOTOR CUT-OFF SENSORS: Yes

• PARKING BRAKE: Yes – Hill Parking System

• TRANSMISSION: 7-Speed

• DIFFERENTIAL: Speed Differential

• REVERSE MODE: Yes

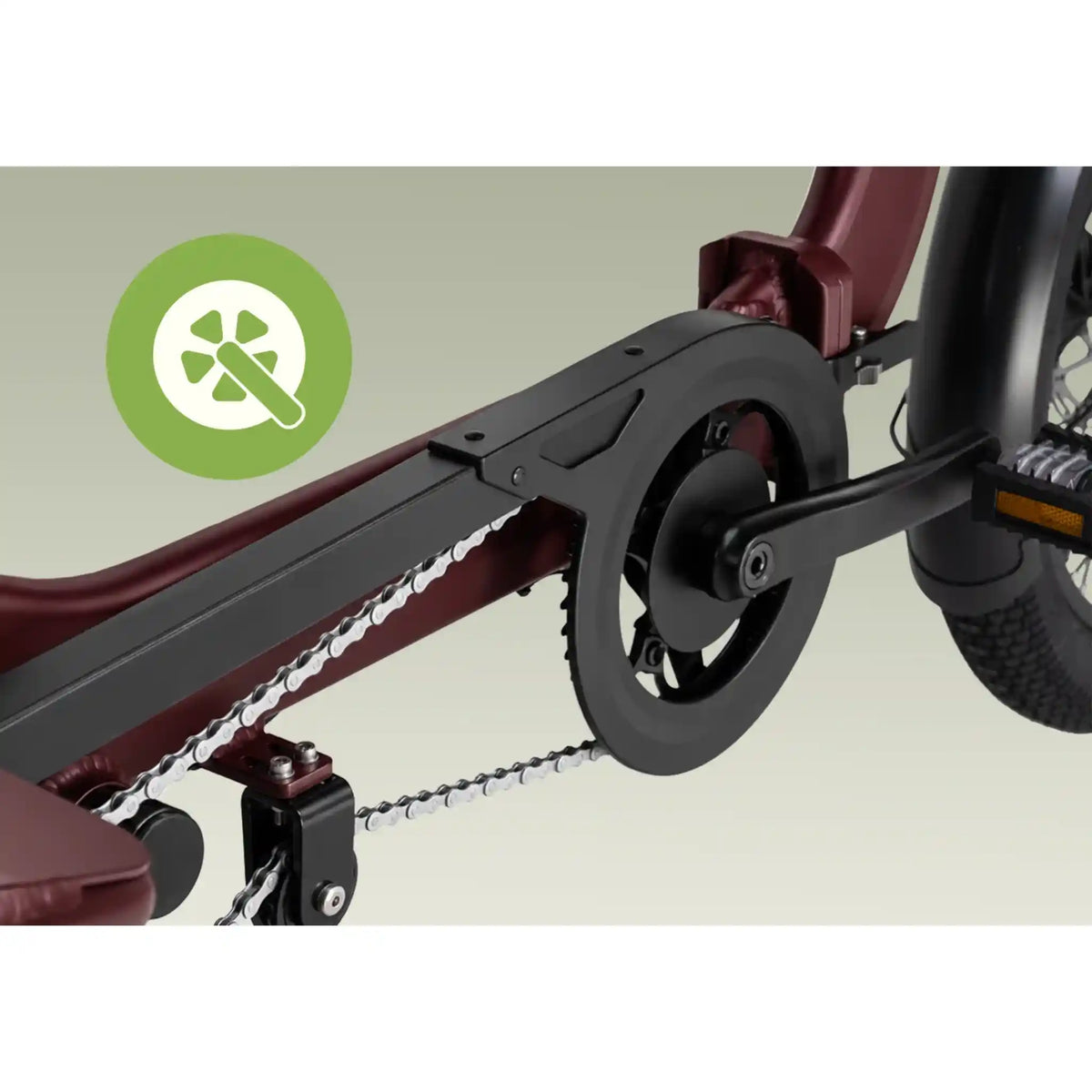

• CHAIN GUARD: Yes

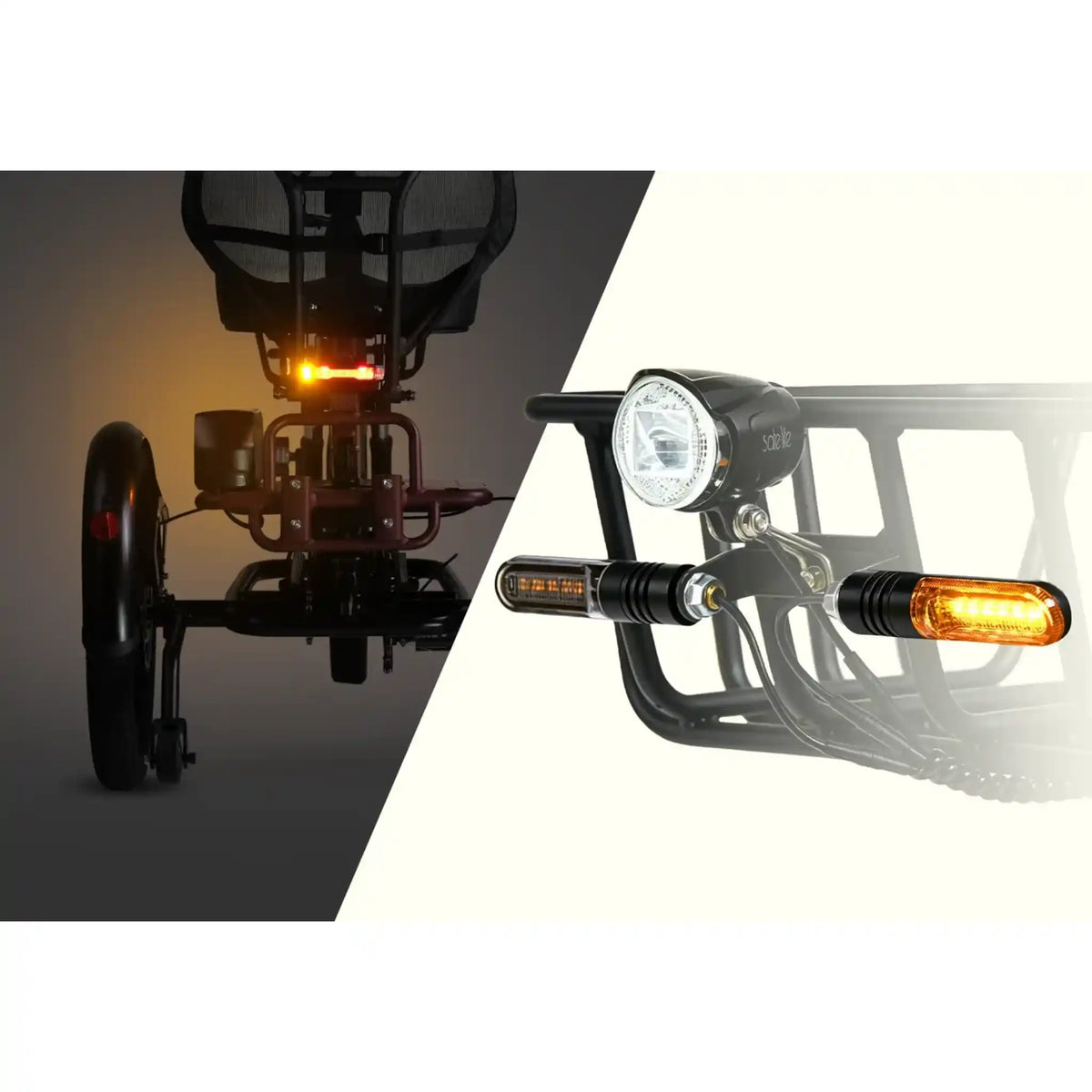

• FRONT TURN SIGNALS: Yes

• REAR TURN SIGNALS: Yes

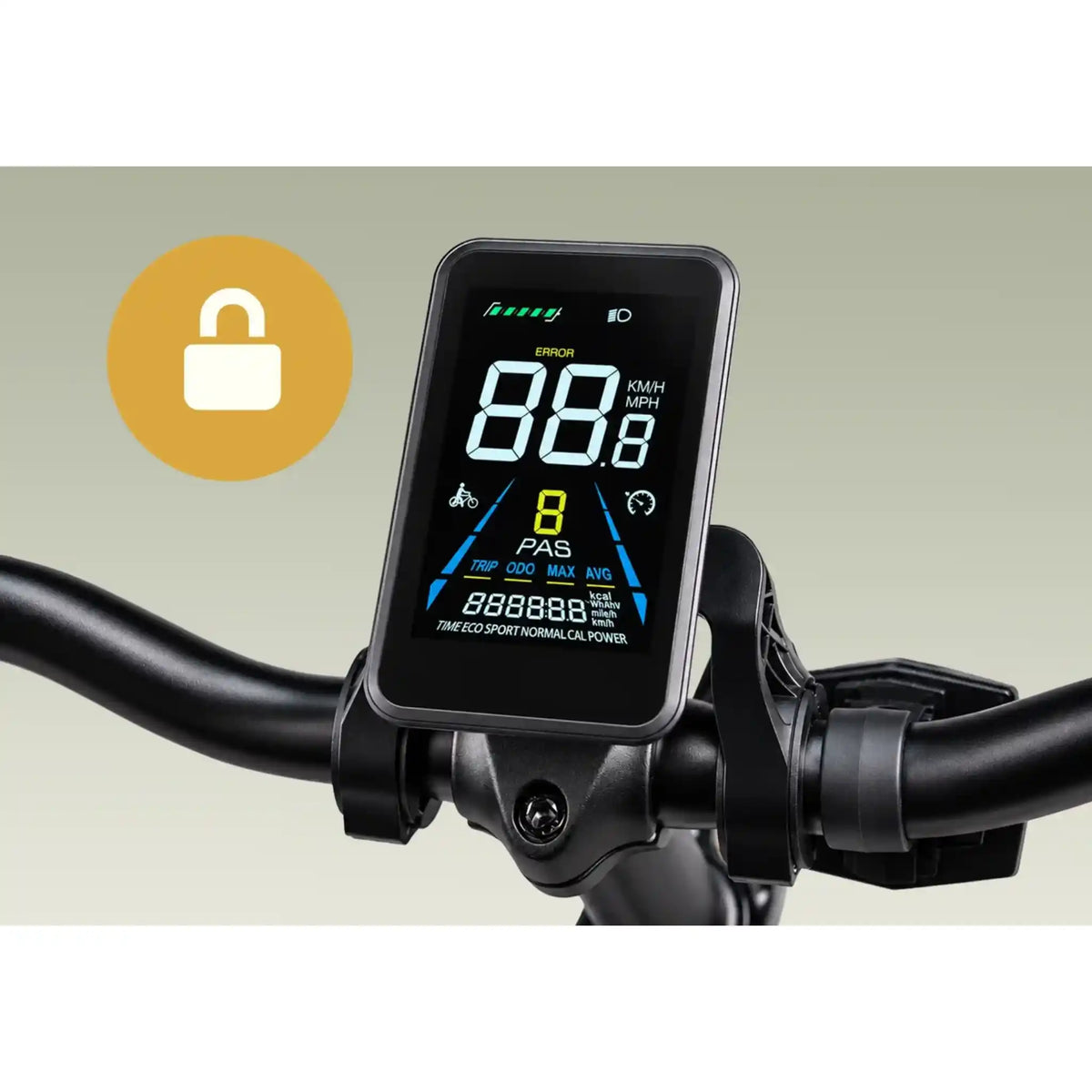

• DISPLAY: 4.6" Color LCD

• STARTUP PASSWORD: Yes

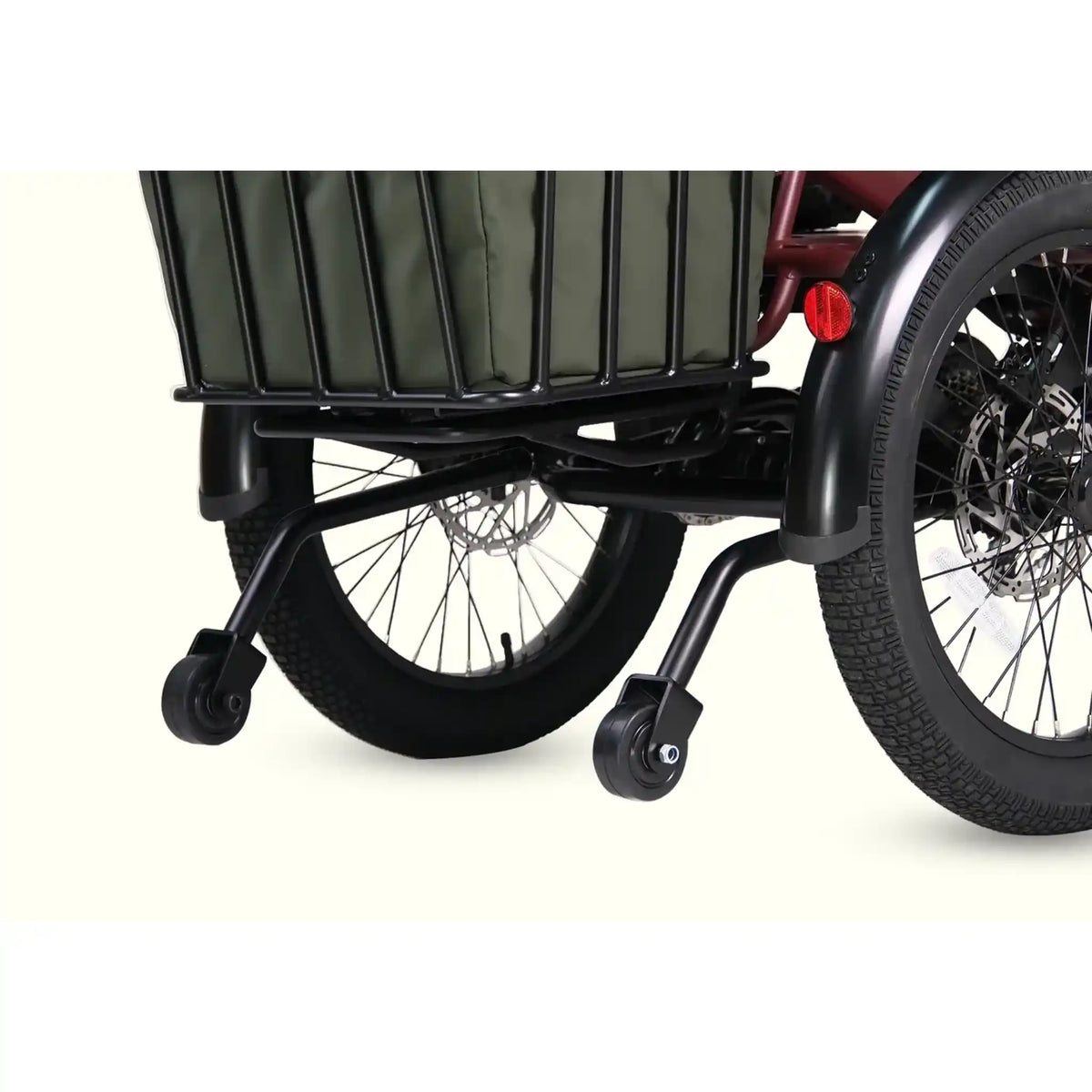

• ANTI-TIP ASSISTANCE WHEELS: Included

• MAXIMUM PAYLOAD: 550 lbs / 250 kg

• TRIKE WEIGHT WITH BATTERY: Approximately 137 lbs / 62 kg

• TRIKE WEIGHT WITHOUT BATTERY: Approximately 127 lbs

• BATTERY WEIGHT: Approximately 10 lbs / 4.5 kg

• RECOMMENDED RIDER HEIGHT: 4'7"–6'7" / 140–200 cm

• STANDOVER HEIGHT: 15.8" / 40 cm

• SEAT HEIGHT: 26.4"–31.1" / 67–79 cm

• HANDLEBAR HEIGHT: 39.4"–57.5" / 100–146 cm

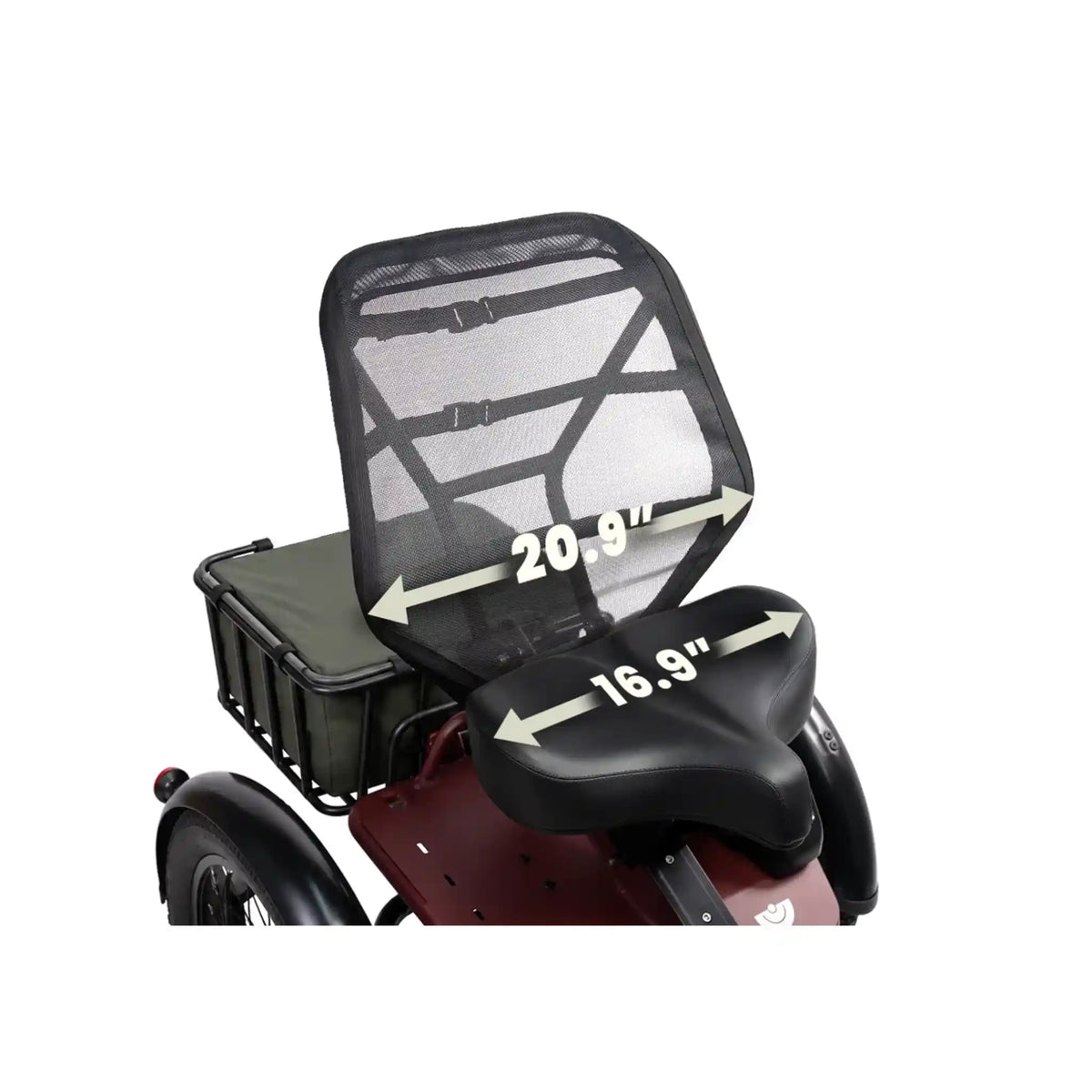

• SEAT SIZE: 13.4" × 16.9"

• BACKREST SIZE: 20.9" × 22.1"

• ASSEMBLY: Approximately 90% Pre-Assembled

• CERTIFICATIONS: UL 2849, UL 2271, UN38.3, MSDS; Tiniover also lists FCC and CE certification for the Lake series

Riding Modes & Controls

The Tiniover Lake combines pedal-powered riding with electric assistance and dedicated low-speed maneuvering features.

• Pedal Mode (No motor assistance)

• Pedal Assist Mode

• Throttle Mode

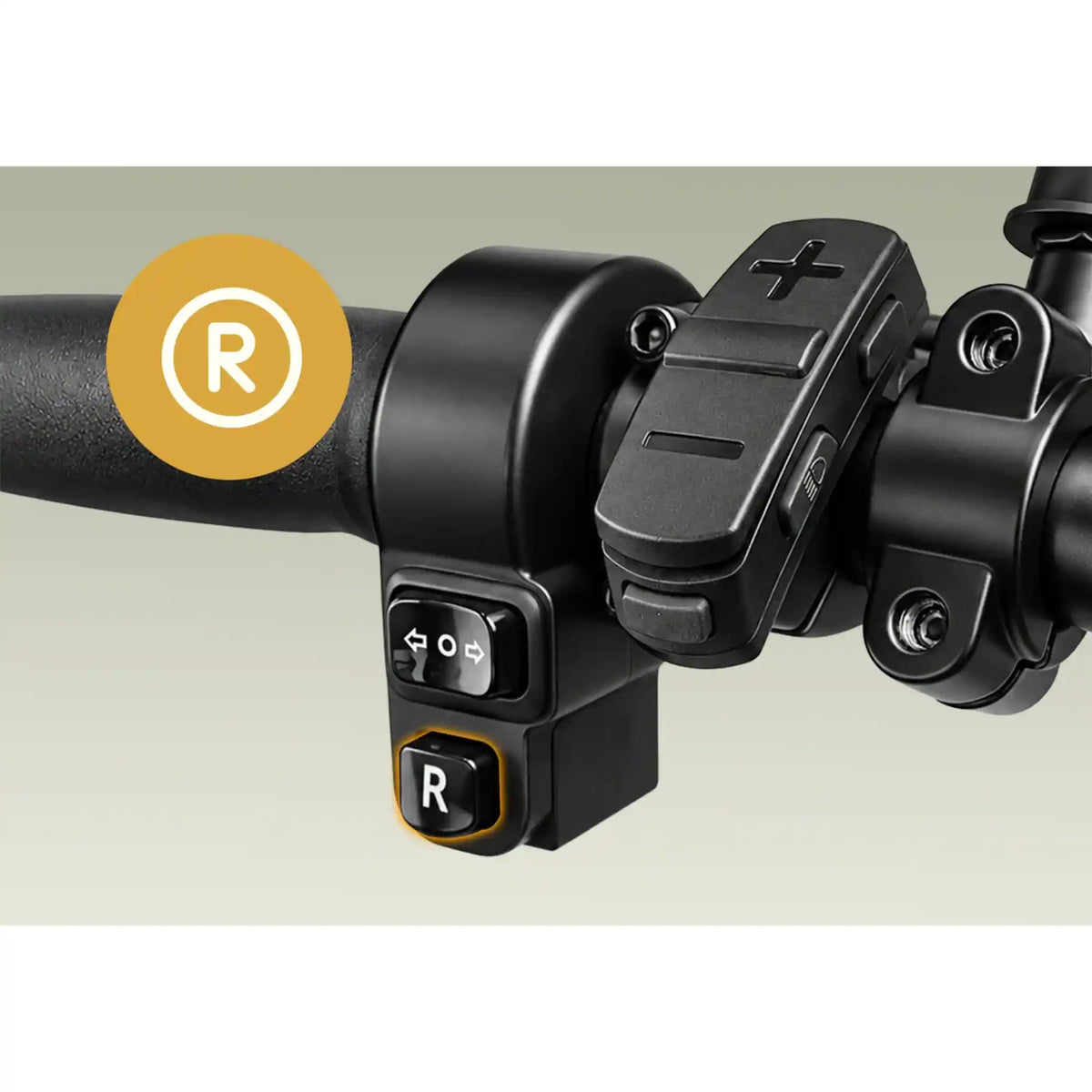

• Reverse Mode

• Beginner Mode

The torque sensor measures how much force the rider applies to the pedals and adjusts motor assistance accordingly, creating smoother starts and more proportional acceleration compared with a conventional cadence-only system.

Tiniover also includes a Beginner Mode, designed to provide slower operation and simplified controls for riders becoming accustomed to an electric trike.

GEOMETRY

One of the Lake's strongest features is its highly adjustable riding position. Rather than requiring riders to adapt themselves to a fixed frame geometry, several contact points can be repositioned to create a more personalized fit.

The Lake accommodates riders approximately 4'7" to 6'7" tall and provides adjustment for:

• Seat Height

• Seat Fore-Aft Position

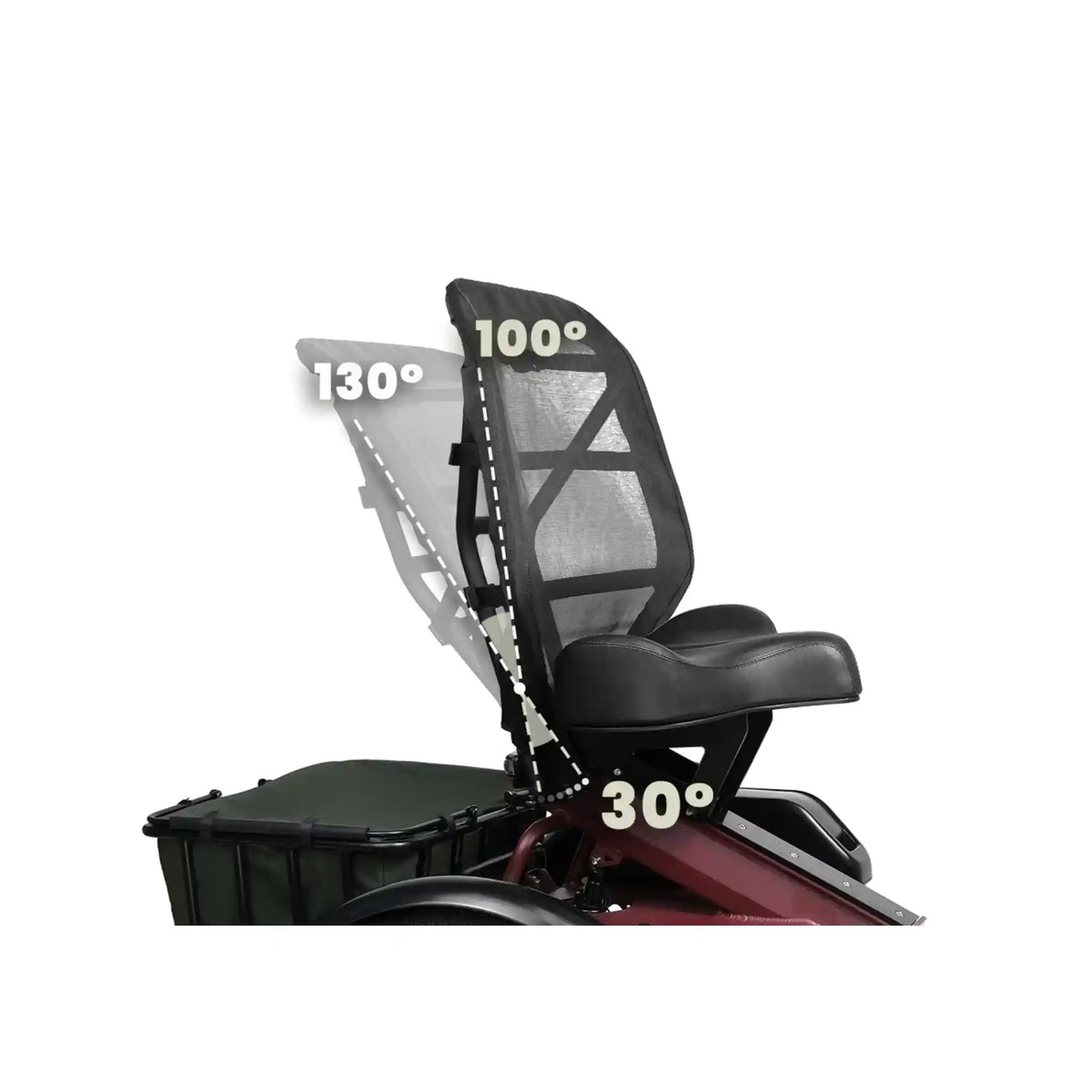

• Backrest Angle

• Handlebar Height

• Handlebar Angle

The seat can be adjusted from approximately 26.4" to 31.1" from the ground, while the handlebars adjust between approximately 39.4" and 57.5" in height.

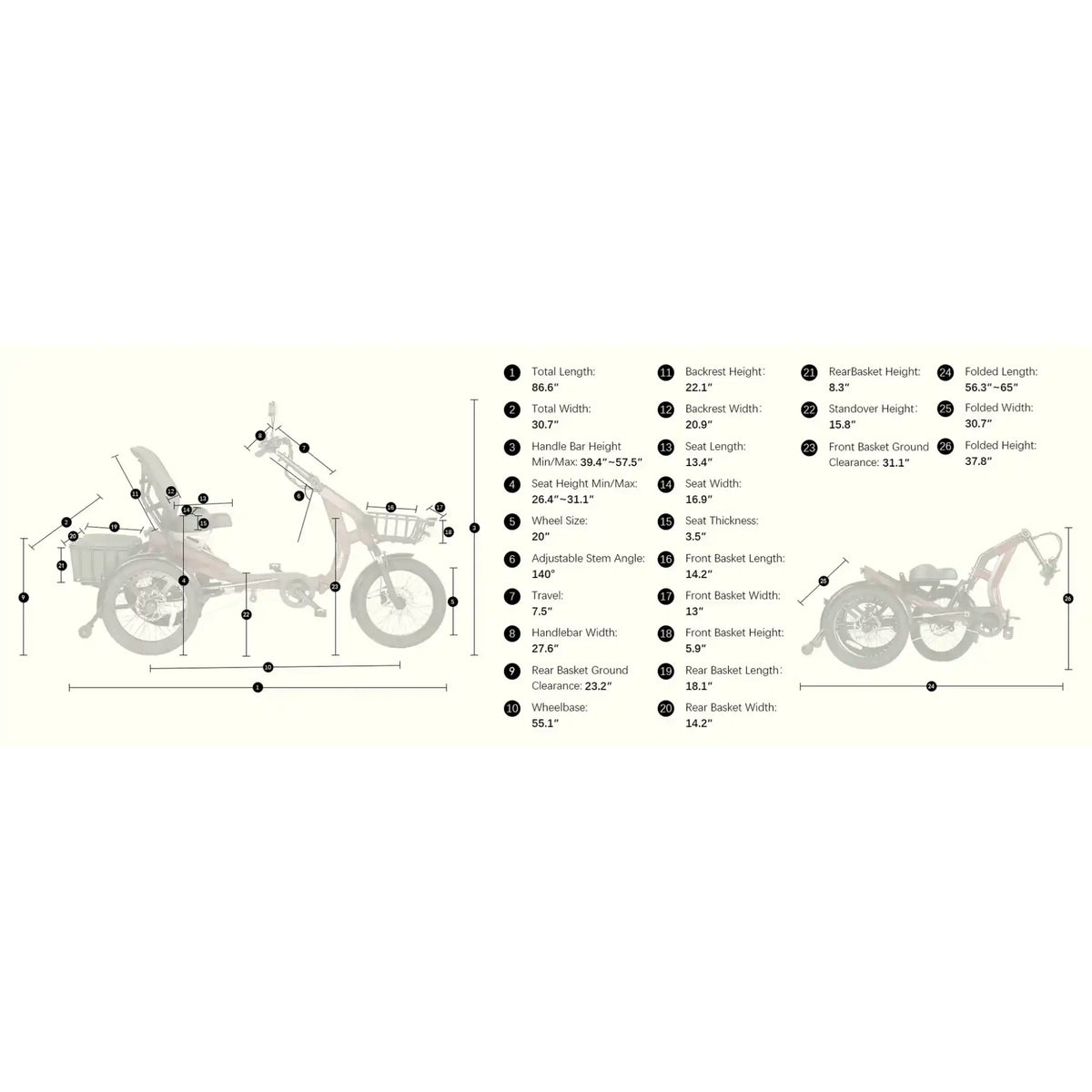

See Product Pictures or Download the Geometry here:

Owner's Manual

Display Manual

Assembly Guide

What's in the Box?

• Tiniover Lake Electric Trike × 1

• 48V 20Ah Battery × 1

• Rear Basket × 1

• Front Basket × 1

• Fenders × 3

• Adjustable Backrest × 1

• Charger × 1

• Headlight & Turn Signals × 1 Set

• Tool Kit × 1

• Rear Rack × 1

• Spare Paint × 1

• User Manual × 1

• Bike Lock × 1

• Pair of Mirrors × 1

• Anti-Tip Assistance Wheels

• Rear Basket Liner
